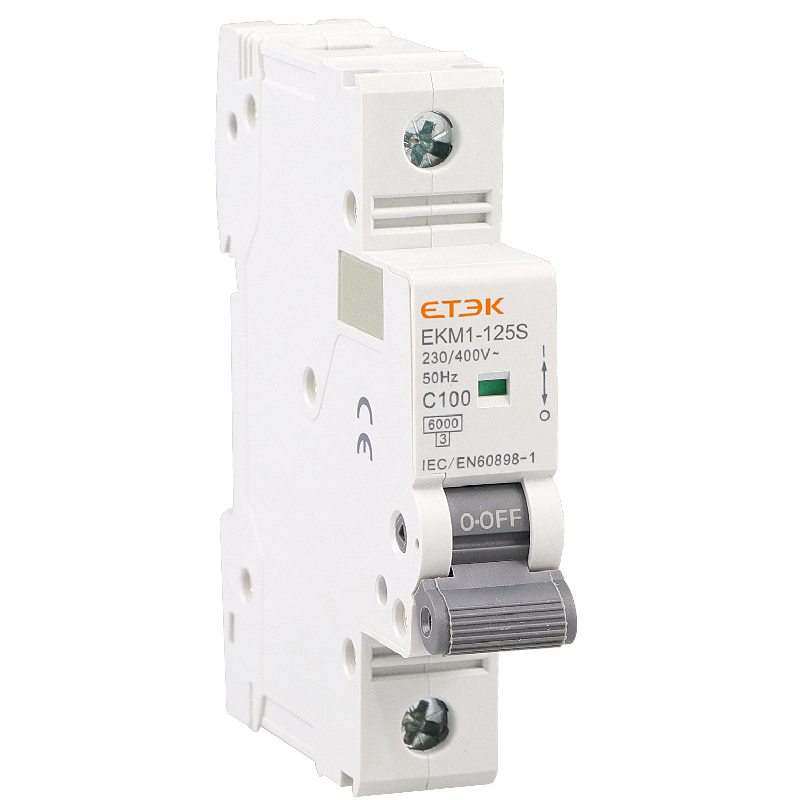

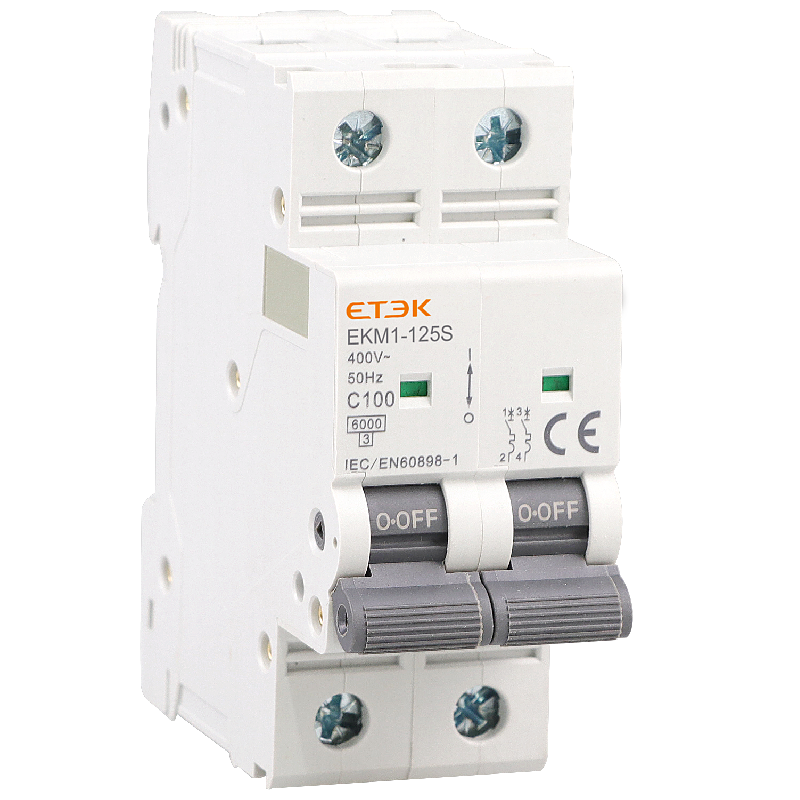

EKM1-125S 10kA 125A Miniature Circuit Breaker

Name: EKM1-125S 10kA 125A Miniature Circuit Breaker
Brand: ETEK
SKU: 02138
Rating: 4.1 (1119 reviews)

● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 63,80,100,125A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 6kA,10kA
● Tripping curve: B,C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE, INMTRO

Inquire NOW PDF

EKM1-125S 10kA 125A Miniature Circuit Breaker

Inquire NOW PDF

Technical Data

Dimensions

Technical Data

Standard	IEC/EN60898-1
Type of trip	Thermo-magnetic
No.of poles	1P,1P+N,2P,3P,3P+N,4P
Rated currents (In)	63,80,100,125A
Rated voltage (Ue)	240/415V~
Rated frequency	50/60Hz
Rated breaking capacity	4,500A
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at Ind. Freq.for 1 min	2kV
Rated insulation voltage Ui	500V
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	B:(3-5) x In, C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-5℃ to +40℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	25mm2
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom
