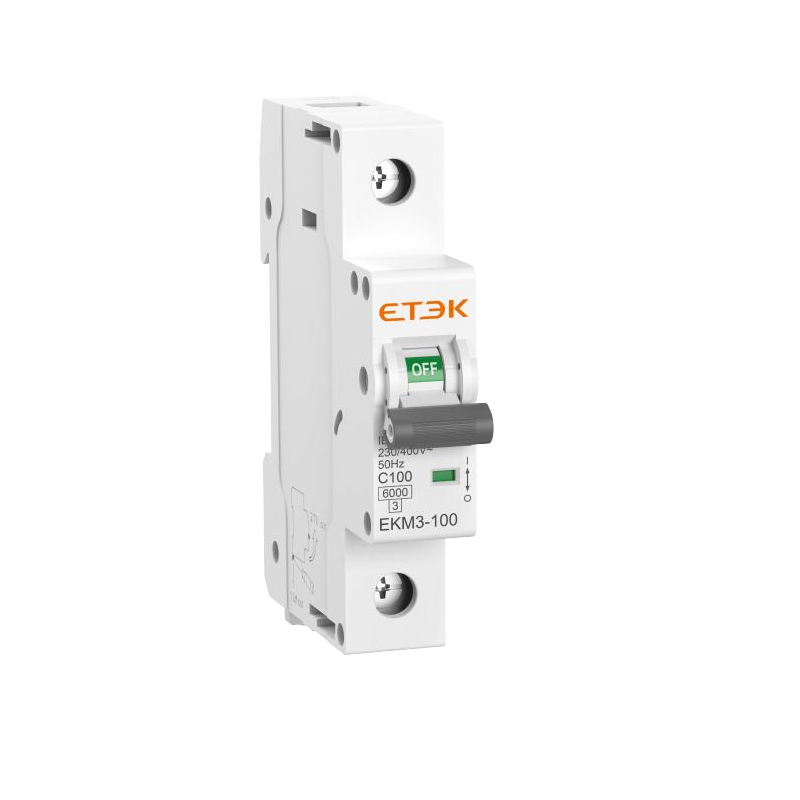

EKM3 100 6kA Miniature Circuit Breaker MCB 1P C Curve 100A

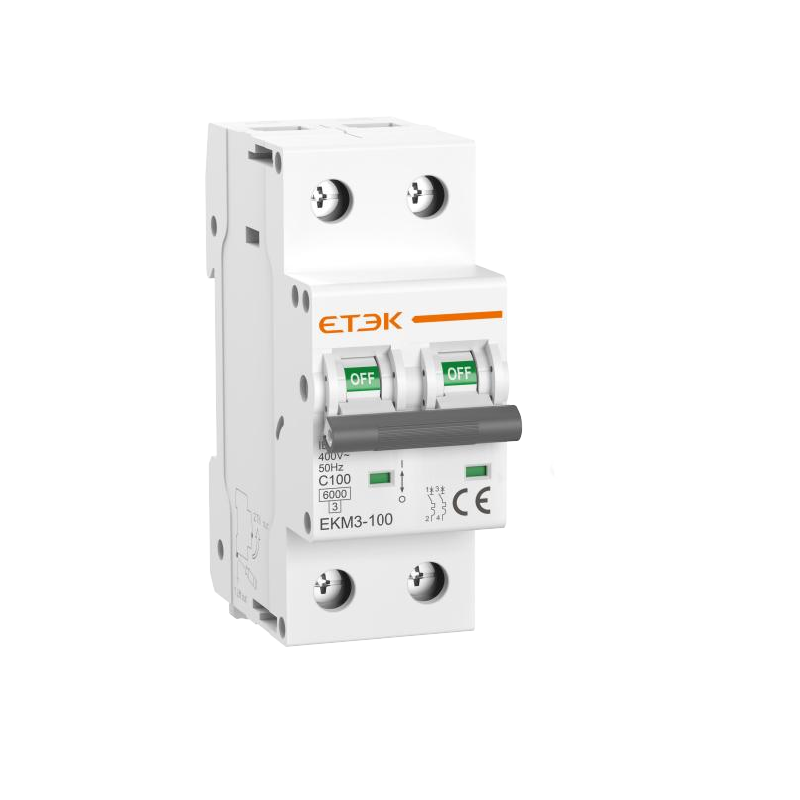

EKM3 100 6kA Miniature Circuit Breaker MCB 2P C Curve 100A

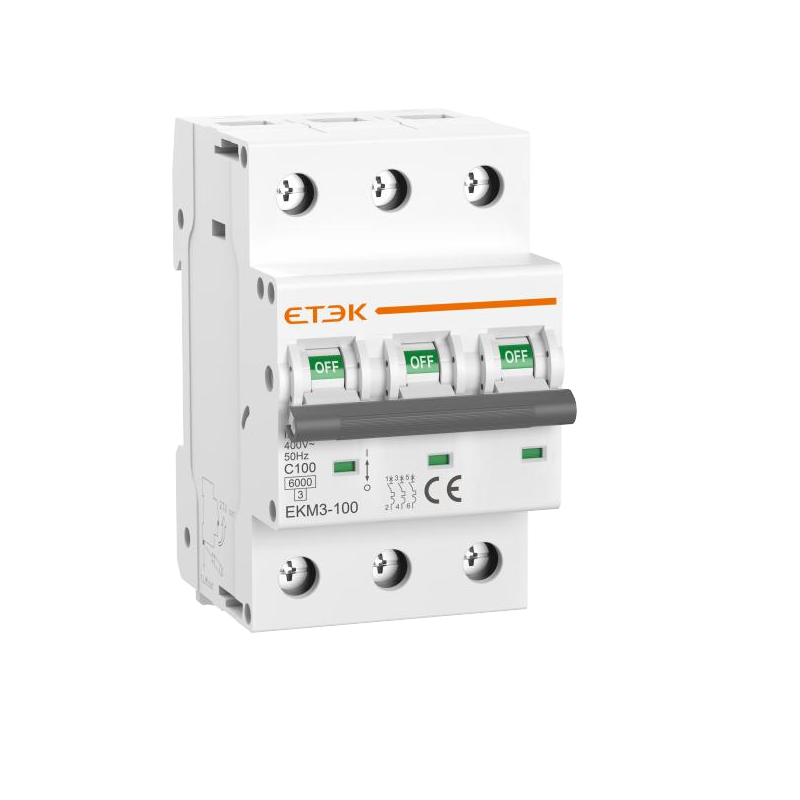

EKM3 100 6kA Miniature Circuit Breaker MCB 3P C Curve 100A

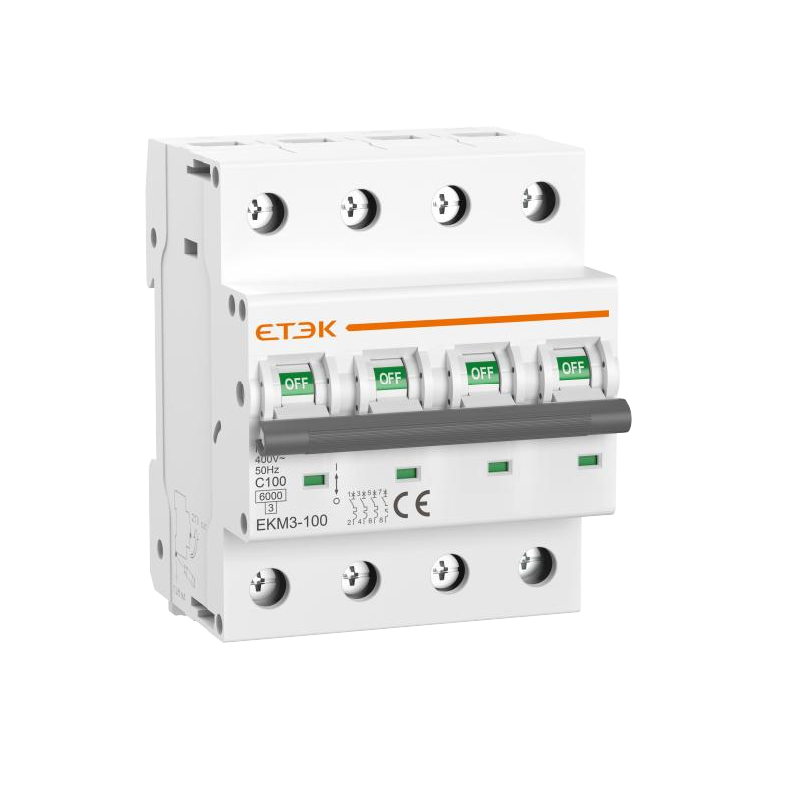

EKM3 100 6kA Miniature Circuit Breaker MCB 4P C Curve 100A

EKM3-100 6kA 100A Mini Circuit Breaker(MCB)

Name: EKM3-100 6kA 100A Mini Circuit Breaker(MCB)
Brand: ETEK
SKU: 02148
Rating: 4.1 (1124 reviews)

● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 1~100 A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B,C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE,

Inquire NOW PDF

EKM3-100 6kA 100A Mini Circuit Breaker(MCB)

Inquire NOW PDF

Product Profile

Technical Data

Dimensions

Product Profile

The EKM1-100 MCB, developed on our proven L7 platform, extends our current rating range up to 100A with a 6kA breaking capacity. Its compact 18mm width makes it the ideal drop-in upgrade for applications requiring higher current protection within a standard MCB footprint, perfectly filling the gap between 63A and 100A in main circuits.

Technical Data

Standard	IEC/EN60898-1
Type of trip	Thermo-magnetic
No.of poles	1P,1P+N,2P,3P,3P+N,4P
Rated currents (In)	1,2,3,4,5,6,10,16,20,25,32,40,50,63.80,100A
Rated voltage (Ue)	240/415V~
Rated frequency	50/60Hz
Rated breaking capacity	6,000A
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at Ind. Freq.for 1 min	2kV
Rated insulation voltage Ui	500V
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	B:(3-5) x In, C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-5℃ to +40℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	25mm2
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	Bi-dirctional
