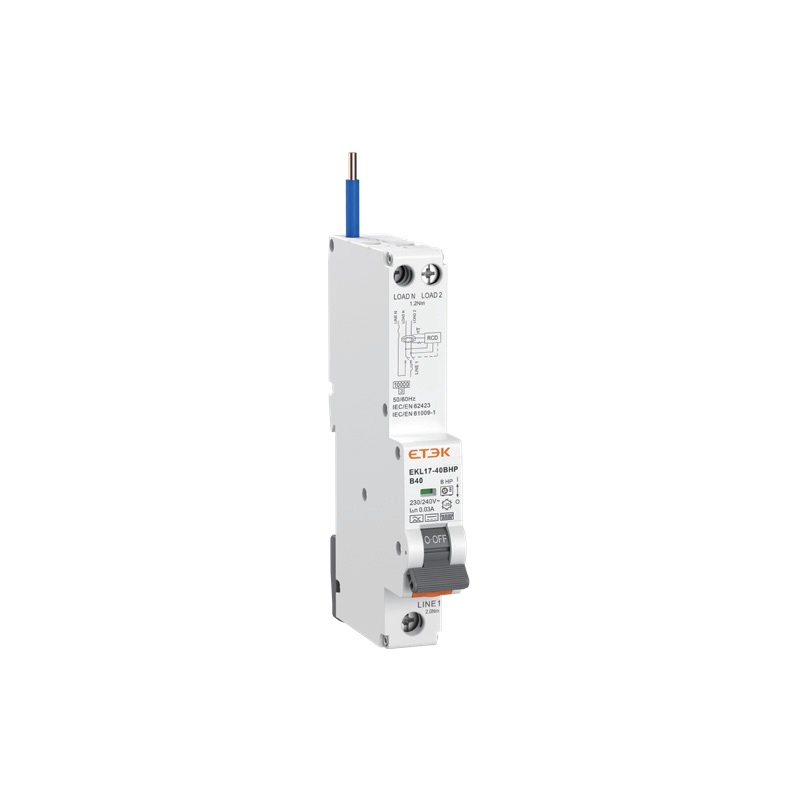

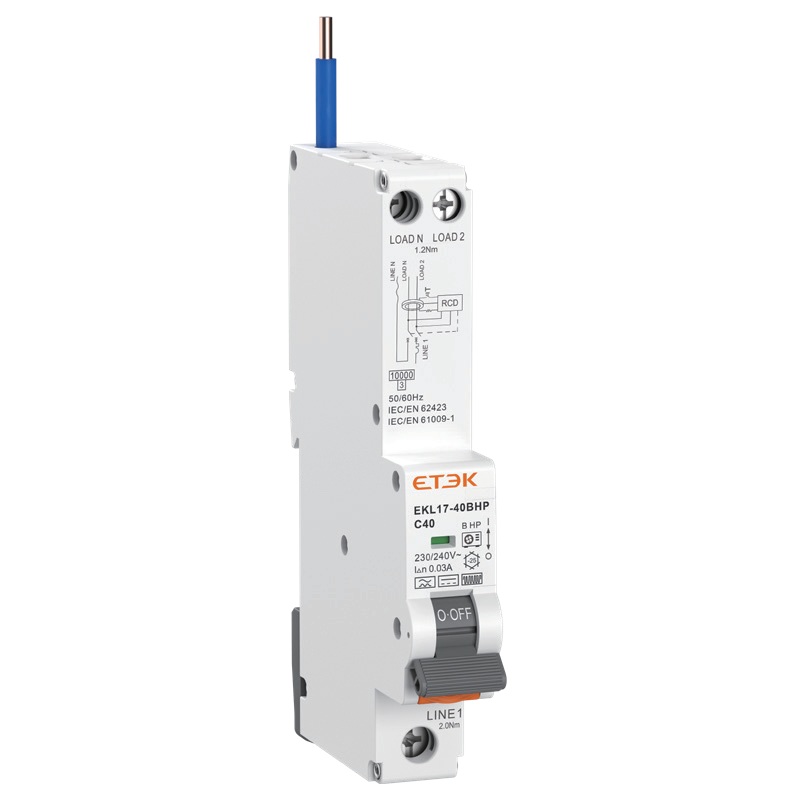

Name: EKL17-40BHP B HP Type RCCB With Overcurrent Protection
Brand: ETEK
SKU: 02183
Rating: 4.9 (1142 reviews)

EKL17-40BHP B HP Type RCCB With Overcurrent Protection

● Standards: IEC/EN 62423, IEC/EN 61009-1
● Poles: 1P+N, Single module (with switched neutral)
● Rated operated voltage: 230/240V~
● Rated current: 6~40A
● Rated breaking capacity: 10kA
● Residual current Type: B HP
● Tripping curves: B, C
● Rated sensitivity current: 30mA
● Incoming method: Form bottom

Inquire NOW PDF

Model Preparation Meaning

Curve	Type	Sensitivity	Rated Current (A)	Ref No.
B	B HP	30mA	6A	EKL17-40BHP-1NB0630
			10A	EKL17-40BHP-1NB1030
			16A	EKL17-40BHP-1NB1630
			20A	EKL17-40BHP-1NB2030
			25A	EKL17-40BHP-1NB2530
			32A	EKL17-40BHP-1NB3230
			40A	EKL17-40BHP-1NB4030
C			6A	EKL17-40BHP-1NC0630
			10A	EKL17-40BHP-1NC1030
			16A	EKL17-40BHP-1NC1630
			20A	EKL17-40BHP-1NC2030
			25A	EKL17-40BHP-1NC2530
			32A	EKL17-40BHP-1NC3230
			40A	EKL17-40BHP-1NC4030

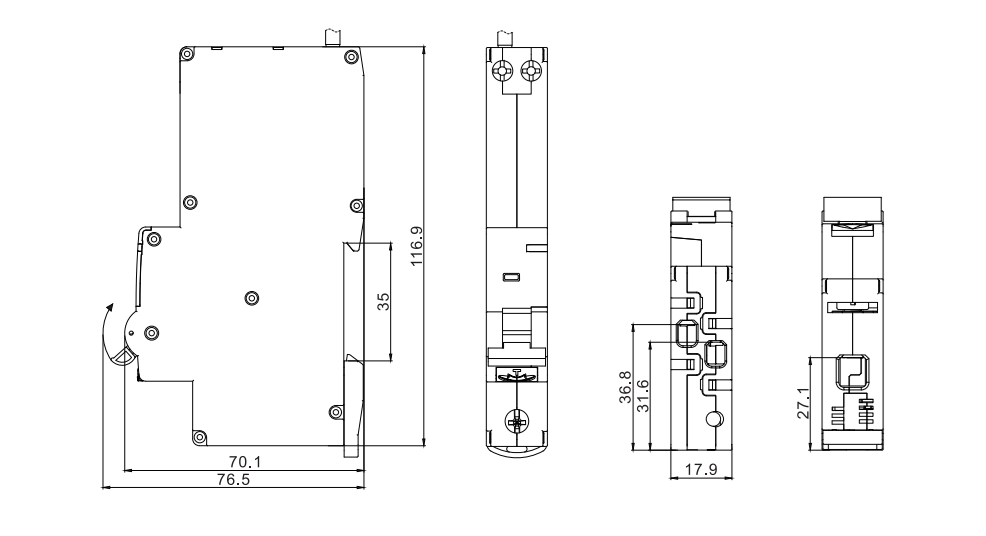

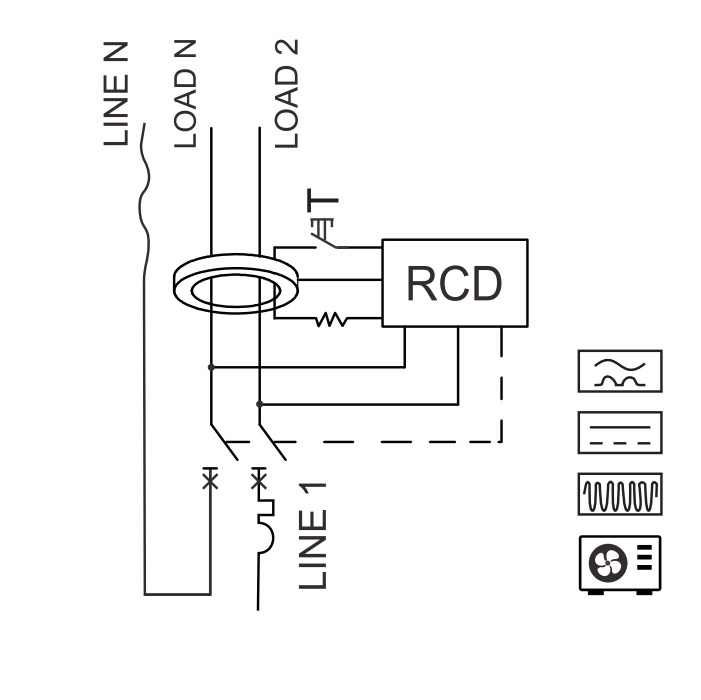

Technical Data

Standard	IEC/EN 62423 (Type B) + IEC/EN 61009-1; Compliant with BS 7671 for heat pump use
Protection	Ground fault, Overcurrent and short circuit, Over-voltage(selectable)
Type of trip	Ground fault: Electronic
Type of trip	Overload and short circuit: Thermo-magnetic
Residual current type	Type B HP - residual AC, pulsating DC and smooth DC; high-frequency immunity for inverter/heat-pump leakage
HF behavior (Type B HP)	Designed to tolerate switching noise ≥ 20kHz; for f ≥ 1kHz uses a raised minimum tripping threshold, typically ≥ 150mA to reduce nuisance tripping
No. of poles	1P+N 1module (with switched neutral)
Rated currents (I_n)	6, 10, 16, 20, 25, 32, 40A
Rated sensitivity currents (I_Δn)	30mA
Residual current off-time under (I_Δn)	≤ 0.1s
Reted residual making and breaking capacity (I_Δm)	500A (I_n ≤ 50A)
Insulation voltage (U_i)	500V
Rated voltage (U_n)	230/240V~
Rated frequency	50/60Hz
Rated short-circuit capacity (I_cn)	10kA
Energy Limiting Class	3
Rated impulse withstand voltage (U_imp) (1.2/50μs)	4kV
Dielectric test voltage	2kV (50/60Hz, 1 min.)
Thermal tripping characteristics	(1.13-1.45)×I_n
Instantaneous tripping characteristics	B: (3-5)×I_n, C: (5-10)×I_n
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indication	green OFF / red ON
Protection degree	IP20
Ambient temperature	-25°C to +55°C , Max. 95% humidity
Terminal connection type	Cable/ Pin-type busbar
Max. terminal size for cable	16mm²
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Incoming method	From bottom
