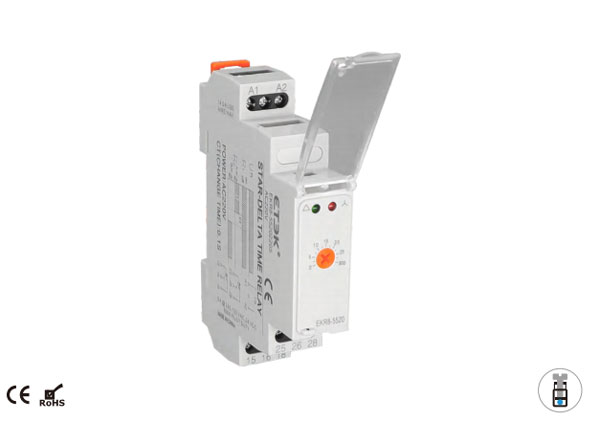

Name: EKR8-5 Star-Delta Timer Relay | Motor Soft Start
Brand: ETEK
SKU: 01992
Rating: 4.9 (1046 reviews)

Three-phase asynchronous motor star-delta step-down start is one of the common methods to solve the excessive starting current of the motor. When the motor is started, the stator winding is star-shaped and stepped down to start. After the start, the stator winding is connected into a triangle full-pressure motion.

Inquire NOW PDF

EKR8-5 Star-Delta Timer Relay | Motor Soft Start

Inquire NOW PDF

Product Profile

Technical Data

Dimensions

Product Profile

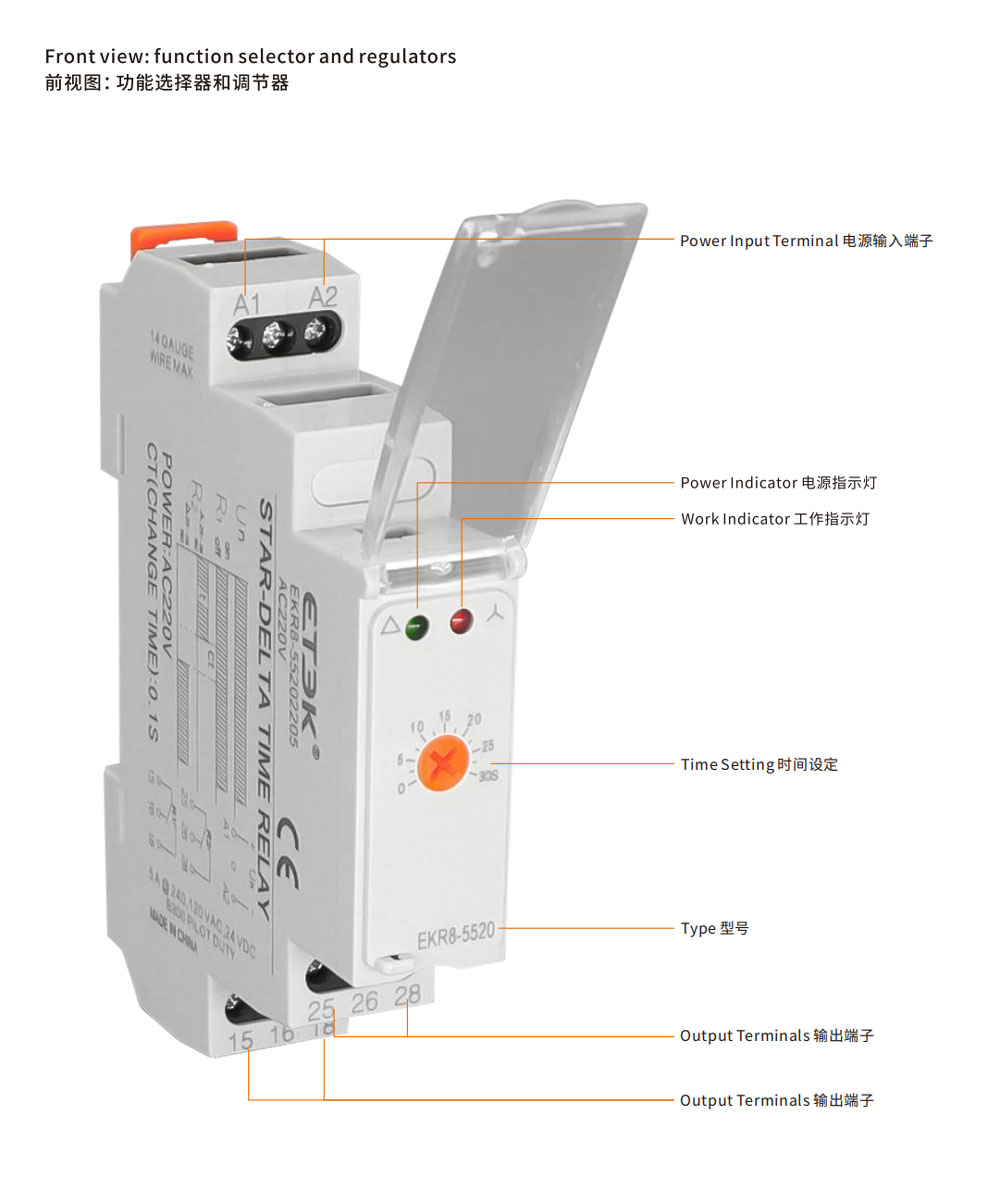

Star-delta Time Relay

Three-phase asynchronous motor star-delta step-down start is one of the common methods to solve the excessive starting current of the motor. When the motor is started, the stator winding is star-shaped and stepped down to start. After the start, the stator winding is connected into a triangle full-pressure motion.

This star type start, star-delta starting method of triangle operation can reduce the starting current and its impact on the power grid.

Technical Data

Technical Data	EKR8-5520
Output Characteristics	One Group Inst, One Group Delay, DPDT
Rated Current	5A
Working Voltage	Single Voltage: AC220V, AC380V
Time Range(t)	30S/60S
Change Time(Ct)	0.1S/0.2S/0.5S
