A Comprehensive Guide to Miniature Circuit Breakers (MCBs): From Basics to Selection

Article Summary: This article serves as your ultimate guide to understanding Miniature Circuit Breakers (MCBs). We will walk you through a brief history of MCB development, explain their working principles, compare design features from different manufacturers, and provide a detailed selection guide along with important considerations to help you make the safest and most informed choices for your home and projects.

1. What is a Miniature Circuit Breaker (MCB)? Why is it so Important?

A Miniature Circuit Breaker (MCB) is an automatic electromechanical switching device installed in distribution boards (electrical panels) designed to protect electrical circuits from damage caused by overload and short-circuit currents. It is a cornerstone of modern electrical safety and has replaced traditional fuses.

Unlike fuses that need replacement after blowing, an MCB can be simply reset manually once the fault is cleared, offering significant convenience and reusable protection. Its core mission is: to protect electrical wiring, thereby preventing electrical fires and ensuring the safety of life and property.

2. A Brief History: From Fuses to Smart MCBs

The evolution of the MCB is a history of advancements in electrical safety technology.

• Early Era: The Age of Fuses: Initially, circuit protection relied on fuses. When current exceeded safe limits, a metal wire inside would melt, breaking the circuit. The drawbacks were that they were single-use and their response speed, accuracy, and safety were far inferior to MCBs.

• Mid-20th Century: The Birth of the MCB: With progress in materials science and electromagnetics, the first commercial MCBs began to be widely adopted around the 1950s. They integrated two mechanisms: a bimetallic strip (for overload protection) and an electromagnetic solenoid (for short-circuit protection), achieving more precise and reusable protection.

• Modern Times: Technological and Standardization Refinements: The establishment of international standards (like IEC 60898) unified the performance and specifications of MCBs. Since then, MCBs have continuously improved in breaking capacity, materials, size, and safety.

• Future: Smartization and the Internet of Things (IoT): Today, MCBs have entered the smart era. Smart MCBs/Residual Current Circuit Breakers with Overcurrent Protection (RCBOs) can connect to home networks, allowing users to remotely monitor energy consumption, control circuits via smartphone apps, and receive alarm notifications in case of faults, laying the foundation for smart homes and energy management.

3. Core Basics: Understanding MCB Parameters

Before selecting an MCB, it's essential to understand several key parameters:

1. Number of Poles (Poles):

   • 1P: Single Pole, disconnects only the live wire, suitable for circuits like lighting.

   • 1P+N: Single Pole + Neutral, can disconnect both the live and neutral wires, offering higher safety.

   • 2P: Double Pole, controls two independent circuits, often used for the main switch.

   • 3P:Three Pole,using for three phase L1,L2,L3  live wire connection,can disconnect 3 Live wires，when using a 3-pole (3P) circuit breaker, the system's neutral wire must be connected directly to the load through a separate, non-disconnectable terminal. This means that when the circuit breaker trips, only the three-phase power supply is disconnected, while the neutral wire remains continuously connected.

   • 3P+N:Four Pole + Neutral,using for three phase L1,L2,L3  live wire connection,It can simultaneously interrupt all three phase lines and the neutral line. Its primary purpose is to ensure safety isolation, guaranteeing that after the circuit breaker is disconnected, the neutral line is also completely separated from the power source.

   • 4P: Four PoleThere are also 3P and 4P, primarily used for three-phase power).It features four fully functional poles. All four poles (L1, L2, L3, N) possess equal overcurrent and short-circuit protection capabilities (with the same rated current and tripping characteristics), enabling simultaneous interruption of all three phase conductors and the neutral conductor. It also provides comprehensive protection against faults on the neutral line. However, according to electrical installation standards such as IEC 60364, the use of 4-pole circuit breakers for ordinary load switching is not recommended unless specifically required as mentioned above, to avoid the risk associated with unintentionally disconnecting the neutral conductor (which is a current-carrying conductor).

   • Noted: Netral pole,same company making direct line,with protection or without protection,you need checking the wiring diagram

2. Rated Current (In): The maximum current an MCB can carry continuously under normal conditions. Common values include 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A，Big Values  including 63A,80A,125A. The selection should be based on the current-carrying capacity of the downstream wiring, NOT the power of the appliance.

3. Breaking Capacity (Icn): The maximum short-circuit current that the MCB can safely interrupt. A higher value indicates a greater ability to withstand short-circuit currents, meaning better reliability. For household applications 3kA/4.5kA,6kA (6000A) is usually sufficient; industrial, commercial, or locations near transformers may require higher ratings (e.g., 10kA, 15kA),Utility bidding projects generally use 6kA/10kA/15kA..

4. Tripping Characteristics (Trip Curve): This is one of the most crucial technical parameters, determining the MCB's tolerance to instantaneous inrush currents. Different characteristics protect different types of equipment:

   • Curve B: (3-5 In) Used for general lighting and socket outlets, sensitive to inrush currents.

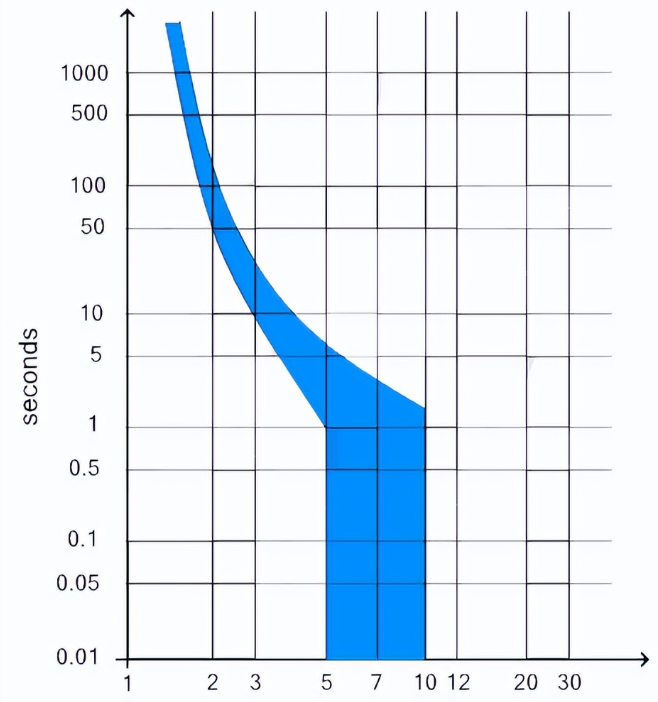

   • Curve C: (5-10 In) The most common type, used for mixed-use circuits, can withstand moderate inrush currents (e.g., air conditioners, small motors).


   • Curve D: (10-20 In) Used for equipment with high inrush currents, such as large motors, transformers, and X-ray machines.

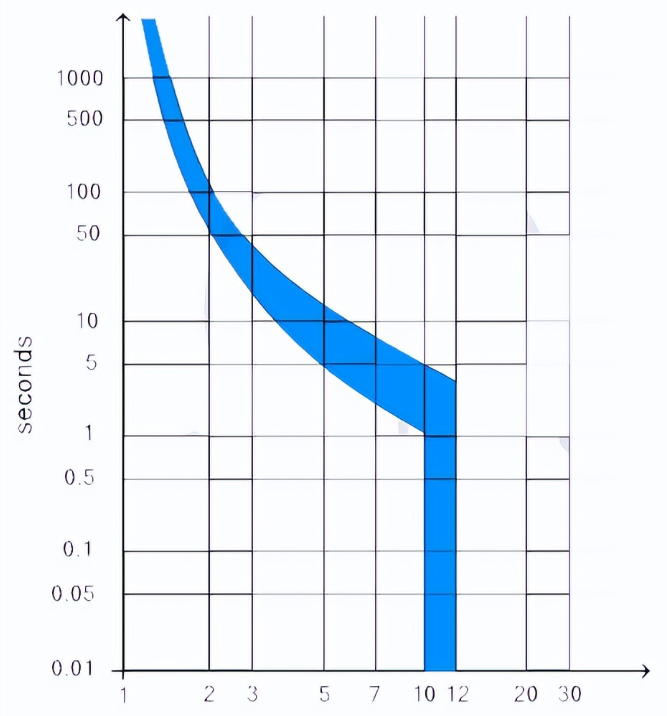

   • Curve K:(10-12 In):With a tripping time of 0.04 to 5 seconds. These circuit breakers are also used for heavy inductive loads in industrial applications.


   • Curve Z:(2-3 In) The Miniature circuit breakers are the most sensitive circuit breakers, tripping immediately when the working current reaches 2 to 3 times its rated current. They are used for sensitive devices that require very low short-circuit trip settings.


4. Brands and Design: Style Differences Among ABB, Schneider, and Siemens,Chint,Delixi,ETEK

Top global electrical brands have their own distinct strengths in MCB design, but all comply with international safety standards.

• ABB: Known for robustness, durability, and high breaking capacity. Their products emphasize industrial-grade reliability, with a solid feel and sturdy internal construction. The SH200 series is a star product in the residential market.

• Schneider Electric: Elegant design and excellent user experience. The Acti9 iC60 series is popular for its compact size, clear indicators, and smooth operation. Schneider is also a leader in smart technology.

• Siemens: Precision engineering and technological leadership. The 5SX series MCBs are renowned for their excellent tactile feedback (a "crisp" switching sound) and precise tripping characteristics. German manufacturing craftsmanship reflects their rigor.

• Chint:Often regarded as a leader in China's low-voltage electrical market, CHINT is known for its robust, reliable, and cost-effective products. Its NXB series enjoys widespread market adoption. That said, the actual 6kA breaking capacity of the NXB line has been reported to be inconsistent, and competitors have raised concerns about performance claims. In contrast, CHINT’s high-end subsidiary brand NOARK offers high-performance DC products that compete directly with flagship series from established international players like Schneider and ABB.

• Delixi/Himel:DELIXI’s past joint venture with Schneider Electric has strongly influenced its product design, manufacturing quality, and global outreach. The brand is often recognized for its refined, international design style and attention to user experience. However, its best-selling MCB series, DZ47s, is positioned as an economical option and delivers only moderate performance—particularly in terms of temperature rise stability and consistent 6kA breaking capacity. These limitations become especially apparent in high-demand applications such as electric vehicle charging stations, where continuous rated output is required. Since Schneider’s acquisition, DELIXI’s R&D focus has shifted markedly toward cost reduction, a trend also seen across many Chinese MCB manufacturers. This industry-wide emphasis on low-cost competition has compressed profit margins, leaving many domestic brands with limited resources for innovation, brand development, and channel expansion.

• ETEK:ETEK's MCB products primarily serve international clients requiring OEM, ODM, CKD, and utility tender cooperation. The company offers a wide range of product categories with comprehensive certifications. For instance, we provide a full series of MCBs covering economy, mid-range, and high-end segments, all certified with CB and CE marks. This enables our customers to select suitable products to enhance their market competitiveness. Meanwhile, we are actively expanding our international distributor network. We warmly welcome partnerships with dealers to jointly capture market opportunities.

How to choose? For most household users, these three brands are all top-tier and safe. The differences lie more in tactile feel, aesthetic preference, and compatibility with existing distribution boards. It is highly recommended to use products from the same brand for the entire distribution system (MCBs, RCDs/RCBOs, distribution boards) to ensure optimal compatibility and safety.

5. Professional Selection Guide: 5 Steps to Choose the Right MCB

1. Determine the Load Type: List the power (W) of all appliances that might be used simultaneously on the circuit and calculate the total current (A). Current (A) = Power (W) / Voltage (V) (Example: For a 3500W water heater on a 220V supply, the current is approximately 16A).

2. Determine the Cable Size: This is the most critical step. The primary role of the MCB is to protect the cable. Common household cable sizes (mm²) and recommended MCB rated currents:

   • 1.5mm² cable → 10A MCB (Primarily for lighting)

   • 2.5mm² cable → 16A or 20A MCB (For general-purpose sockets)

   • 4.0mm² cable → 25A or 32A MCB (For air conditioners, high-power kitchen sockets)

   • The rated current of the MCB MUST be less than or equal to the safe current-carrying capacity of the cable.

3. Select Tripping Characteristics:

   • General sockets, lighting → Choose Type C

   • Motor-driven appliances (AC, refrigerator) → Choose Type C (Consider Type D if the starting inrush is very high)

   • Purely resistive loads (water heaters, electric heaters) → Type B or C are both acceptable

4. Determine the Number of Poles:

   • Branch circuit → 1P+N (Mainstream recommendation, safer) or 1P

   • Main switch → 2P

5. Confirm Breaking Capacity: For standard apartments/villas, 6kA is sufficient. For commercial buildings or sites very close to a transformer, 10kA is recommended.

6. Important Considerations and Common Misconceptions

• Safety First! If you are not a certified electrician, do NOT attempt to install or replace MCBs yourself. Working with them involves high risk and must be performed by a professional electrician.

• Never "Upsize": Absolutely avoid replacing a frequently tripping MCB with one having a higher rated current. Tripping is a fault signal. The correct approach is to investigate the cause of the overload or short circuit, not to mask the problem.

• Quality is Paramount: Never use unknown brands or counterfeit MCBs. A substandard MCB may fail to trip effectively during a fault, essentially acting like a switch and极易 (extremely easily) leading to a fire.

• Regular Testing: It is recommended to press the "T" test button monthly (on RCDs/RCBOs only) to ensure the protection function is working. Standard MCBs can be checked by manually operating the switch to see if the mechanism functions normally.

Conclusion

Though small in size, the Miniature Circuit Breaker is an indispensable "guard" for household electrical safety. Understanding its principles, standards, and selection methods can help you communicate more confidently with electricians and make the most informed decisions for your new home装修 or circuit renovation projects.

If you need to select the most suitable miniature circuit breaker for your project or have any questions, please feel free to contact us! Our professional team provides free technical consultations and solutions.
