ETEC EKEC1 Basic EV Charger

ETEC EKEC1 Basic EV Charger

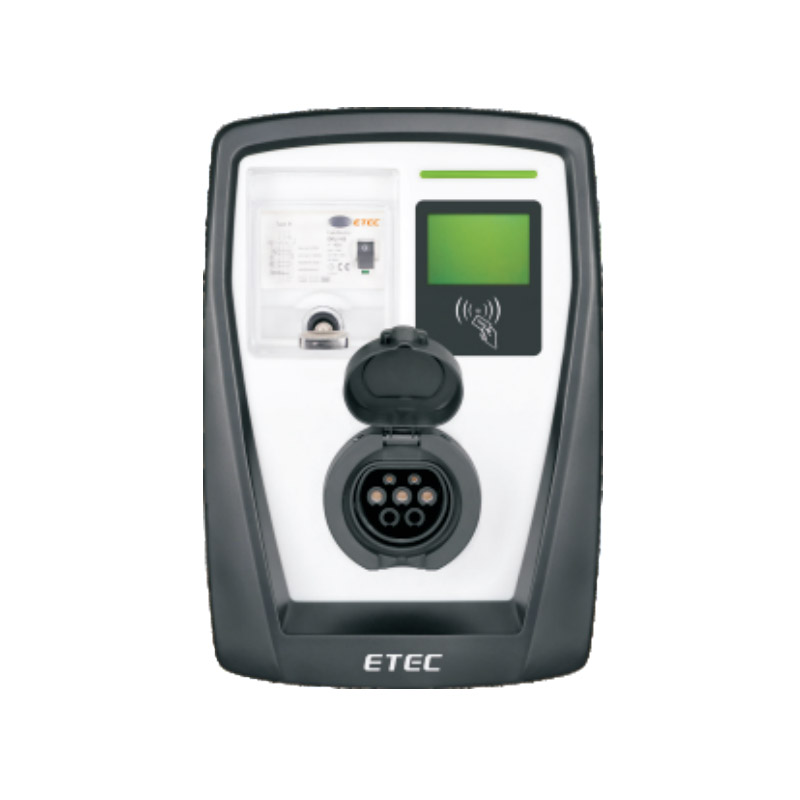

EKEC1 basic typeEletric vehicle Charging Station can both wall/post mounting,socket type or plug type options,support single phase 3.6kW 7.3kW three phase 11kW 22kW charging,and LCD display, Socket lock, DLB, RFID, OV/UV protetcrion functions optionls.

Inquire NOW PDF
ETEC EKEC1 Basic EV Charger
ETEC EKEC1 Basic EV Charger

ETEC EKEC1 Basic EV Charger

Inquire NOW PDF

Product Profile

EKEC1 ev charging station internal components we choosing module din-rail product, such as module design EV charge controller, RCD and module contactor,

kWH meter can optiobal, various addtional functions can be configured according to customer demand, the products comply with IEC61851-1 standard.



Advantages:

1)The EKEC1 ev charging station bulit in a type A RCCB+DC6mA RCMU or a type B RCD complying with the requirement of IEC 61851 standard clause 8.5 Residual current protective devices. Bulit in RCD with a lockable window,so can power on and off also can Monthly testing RCD function

2)The EKEC1 ev charging station can add a RFID module and cards,using card start/stop charging,card number can customized,also can add new by customer themself(No billing card)

3)The EKEC1 ev charging station can add a LCD screen display rated current voltage,and charging time,Charging stutus,Charging falut code,if together with a kWM can read real time current/voltage/power status and having Over current,over/under voltage protection

4)The EKEC1 ev charging station can working with a DLB current monitoring device for a DLB function,the device can using CT for single phase or a  RS485 communication kWH meter for both single phase or theree phase

5)The EKEC1 ev charging station socket type can add a electronic lock

6)The EKEC1 AC ev charger can customized with PEN loss fault protection

7)The EKEC1 ev car chargers have different power 3.5KW/7.3KW/11KW/22KW are same charger housing

8)The EKEC1 electric car charger insise module device are more easy maintain and repair,it using module contactor instead of relay will have a good electric life and electric clearrance promise,anti-gigh and low temperature

9)The EKEC1 ev charger  inside using EKEPC2-C/S EPC controller with Modbus-RTU protocal and RS485 communication





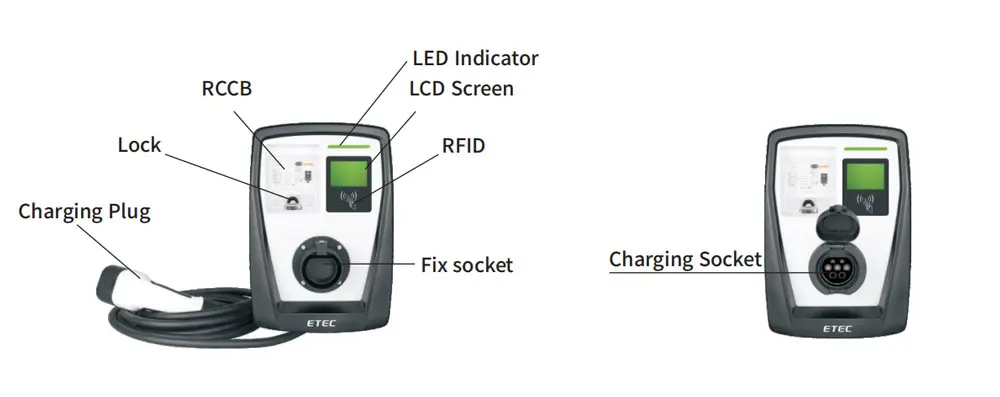

Product Introduction

Technical Data

EV Charging Modes Mode 3 charging
Rated Voltage AC 240V±10%, AC 420V±10%
Rated Current Max 16A, Max 32A
Rated Frequency 50Hz
Over Voltage Category (OVC) OVC III
Insulation Resistance R > 1 MΩ
AC Withstand Voltage 1430V
Impulse Dielectric Withstand Voltage (1,2 μs/50 μs) (Uimp) 4kV
Protection Against Electric Shock Class I
Electrical Life (contactcor) 100,000
Electrical Life (Interface) 100,000
Standby Power Consumption <8W
Type of EV Connection Case B (Socket version) / Case C (Cable Version)
Universal Interface T1:SAE J1772, T2:IEC/EN 62196-2, GB/T:20234.2-2015
Pollution Degree PD 3
IP Protection Class IP54
Altitude During Operation (m) <2000m
Altitude of Test Laboratory <50m
Work Humidity 3%~95%
Operation Temperature -25℃- 40℃
Colling Natural Air Cooling
Mounting Method Mounted on walls, poles or equivalent positions
Normal Environmental Conditions Indoor use; Outdoor use
Product Dimension (mm) 357*245*123

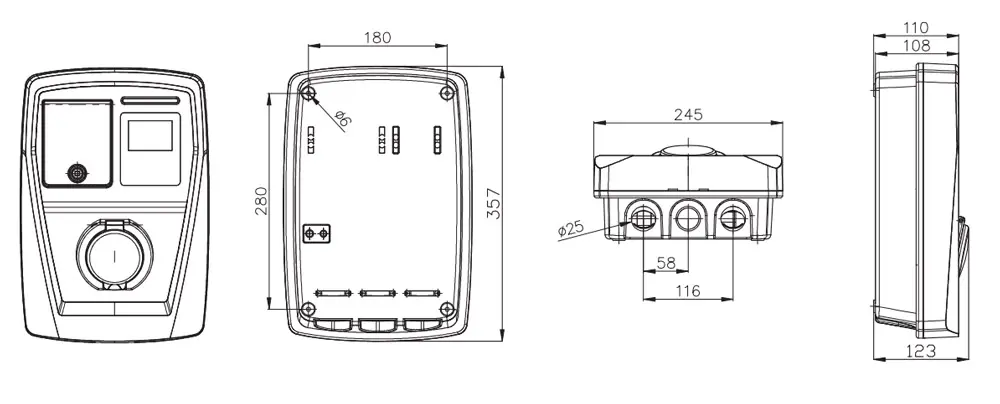

Installation Dimension (mm) 180*280
The AC charger require external MCB for overload protection and short-circuit protection to be installed in upstream distribution box

Dimensions

Product selection form

    ●: Defult
Green: Simple Choice
Blue: Multiple Choice
Selection Code
Model     EKEC1
Net Mode Modbus-RTU Protocal Support RS485 communication baud rate: 9600, 8, n,
1 Address:1-255 default: 255 (boardcast address)
M
Ocpp1.6J Protocal Suppport Ethernet/Wifi/4G/3G/2G
Communication using EKEPC3 Controller
O
Remark SIM card support band and area:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
Area: EMEA/APAC

Case B/C Socket type (Case B) S
Cable type (Case C) Defaut value is 5M, other length can customized C
Socket & Plug Standard American standard Type 1(T1): SAE J1772 T1
Europe Standard Type 2(T2)T2: IEC/EN 62196-2 T2
China Standard: GB/T20234.2-2015 GBT
Power 3.6KW, AC230V±10% 50Hz, 16A, 1P+N+PE 3
7.3KW, AC230V±10% 50Hz, 32A, 1P+N+PE 7
11KW, AC400V±10% 50Hz, 16A, 3P+N+PE 11
22KW, AC400V±10% 50Hz, 32A, 3P+N+PE 22
Protection Configuration Device
Overtemperature Protection Chip Overtemperature Protection
Residual Current protection Type A RCCB+RCMU Type A 30mA+DC6mA Residual current protection A
Type A EV RCCB B
Type B RCCB Type B 30mA+DC residual current protection  C
Type A RCBO+RCMU Type A 30mA+DC6mA Residual current+Overload+short circuit protection D
Type A EV RCBO E
RCMU IEC62955 standard AC30mA+DC6mA Residual
current protection(Should at least installation a
Type A RCD in front of Charger)
F
PEN falut protection Relay Using for UK TNS System for PEN loss protection 0
RFID RFID module with card Support swape RFID card stop and start charging 1
Electronic Lock Electronic Lock Support lock the plug when charging 2
DLB Current Transformer CT Connected in Main circuit only for single phase 3
kWH meter(out Station) kWH meter Connected in Main circuit both for
single phase or three phase, other brand meter
using pls checking the Charger usage manual
4
LCD dispaly COG 2.8 Inch display screen   5
OV&UV protection, Over current
protection, voltage, current,
Power for real time monitoring
KwH meter(in station) OCPP1.6J protocal default chooice a kWM meter
with MID certificate
6
Surge Protective SPD Only for single phase 7
Emergency Stop Emergency stop switch   8

Note: Model Selection Example: EKEC1-M-S-22-A-1245678
