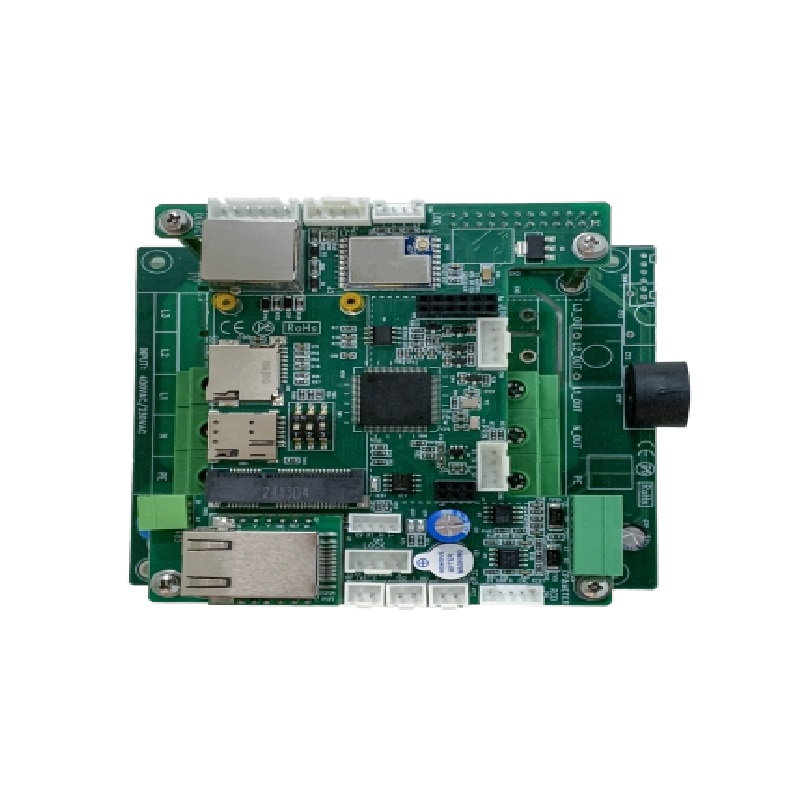

EKEPCB2 Model 3 EV Charger PCB Board

Name: EKEPCB2 Model 3 EV Charger PCB Board
Brand: ETEK
SKU: 02012
Rating: 4.1 (1056 reviews)

Inquire NOW PDF

EKEPCB2 Model 3 EV Charger PCB Board

Inquire NOW PDF

Product Profile

Technical Data

Product Profile

EKEPCB2isusingforACEVChargingStationcomplieswithIEC61851-1orSAEJ1772standardandPCBinstallationrequirement. Theoutputofthecontrolleradoptsrelayswitchingload,theratedvoltageis230V~,andtheratedcurrentcanbeadjustedbetween1A and32A. TheEKEPCB2 controller isOCPP1.6JprotocolwithWIFI,Ethernetnetcommunication,whichcancommunicatewithcontrollerwitha OCPP1.6Jprotocolbackend,alsowecansupportaRS485communicationforkWhmeter. The controller addtional functions including :non-contact IC card connectionmodule, residual currentmonitoringunit, DLB management,LCDdislay,kWHMeter,Electroniclock,externalemergencystoppushbutton,etc.ThesefunctionmustbeNOTEDwhen ordering.

Technical Data

Model	EKEPCB2-C/S
Mode	Mode3charging
OperatingVoltage	AC230V±10%,50Hz
OutputthePWMSignal	Max:32A,1-32Aadjustable
BasicFunction	1:RCMUDC6mAleakagemonitoring 2:Overtemperatureprotection 3:Overvolatge&undervoltageprotection 4:Overcurrentprotection 5:Voltage,current,powerforrealtimemonitoring
AdditionalFunction	1:SwipeRFIDcard/NFCstartorstopchargingfunctionwithanauxiliary deviceofRFIDmoduleandcards 2:LCDdisplayfunctionwithanauxiliarydeviceofLCDscreen 3:Elecroniclockfunctionwithadeviceelectroniclock 4:DLBfunctionwithanauxiliarydeviceofCTorkWhmeter 5:Emergencystopfunctionwithanauxiliarydeviceofpushbuttonswitch
Protocol(communication)	OCPP1.6Jprotocol,Wifi,Ethernetcommunication
Protocol(communication)	Modbus-RTUprotocolandRS485communicationonlyforkW·hmeter
OutputAuxiliaryVoltage	DC12V/100mA\DC5V/100mA
AmbientTemperature	-40°C~+50°C
Humidity	≤85%
CoolingMethod	Naturalcooling
InstallationMethod	PCBmounted
