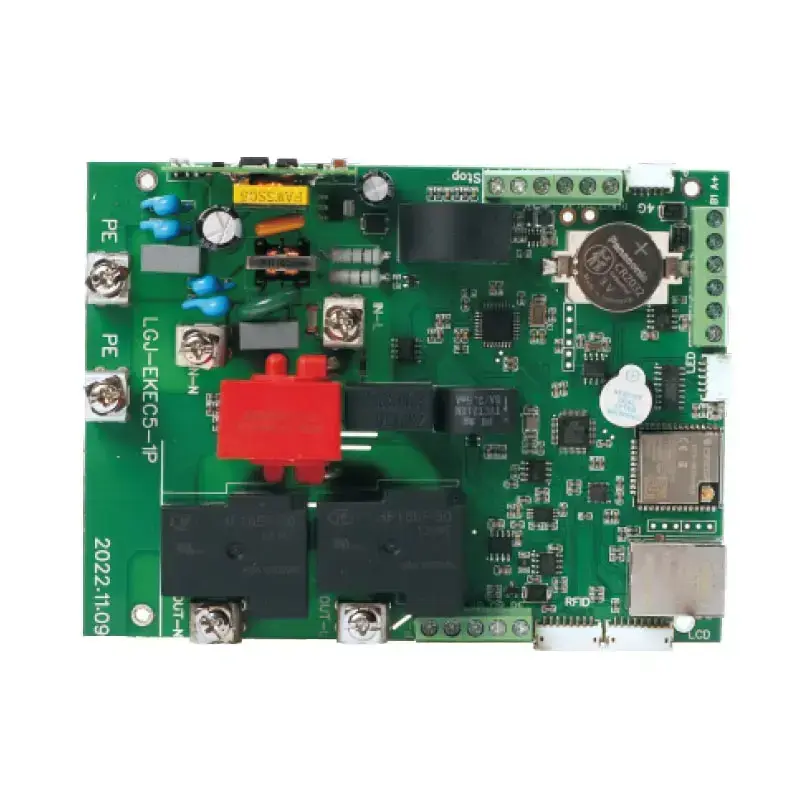

EKEPCB2 Model 3 Single Phase 3.6/7.3 KW EV Charger PCB Controller

EKEPCB2 Model 3 Single Phase 3.6/7.3 KW EV Charger PCB Controller

EKEPCB2 mode3 level 2 EPC EV Charge Controller complies with IEC61851-1 or SAEJ1772 standard and PCB installation requirement. The output of the controller adopts relay switching load, the rated voltage is 230V~, and the rated current can be adjusted between 1A and 32A.

Inquire NOW PDF
EKEPCB2 Model 3 Single Phase 3.6/7.3 KW EV Charger PCB Controller

EKEPCB2 Model 3 Single Phase 3.6/7.3 KW EV Charger PCB Controller

Inquire NOW PDF

Product Profile

The EKEPCB2  controller is OCPP1.6J protocol with WIFI, Ethernet net communication,

which can communicate with controller with a OCPP1.6J protocol backend,

also we can support a RS485 communication for kWH meter.

The controller addtional functions including :non-contact IC card connection module, residual current monitoring unit,

DLB management, LCD dislay, kWH Meter, Electronic lock, external emergency stop pushbutton, etc.

These function must be NOTED when ordering.

Technical Data

Display Content

EKEPCB2 Model 3 EV Charge Controller

Model EKEPCB2-C/S
Mode Mode 3 charging
Operating Voltage AC230V±10%,50Hz
Outputthe PWM Signal Max: 32A, 1-32A adjustable
Basic Function 1:RCMU DC6mA leakage monitoring
2:Overtemperature protection
3:Overvolatge&Undervoltage protection
4:Over current protection
5:voltage,current,Power for real time monitoring
Additional Function 1:Swape RFID card/NFC start or stop charging function with a axuliary
   device of RFID module and cards
2:LCD display function with a axiliary device of LCD screen
3:Elecronic lock function with a device Electronic lock
4:DLB function with a axuliary device of CT or kWH meter
5:Emergency Stop function with a axuliary device of Pushbutom switch
Protocol(communication) -OCPP1.6J Protocol,Wifi,Ethernet communication
-Modbus-RTU protocal and RS485 communication only for kWH meter
Output Auxiliary Voltage DC12V/100mA\DC5V/100mA
Ambient Temperature -40℃-+50℃
Humidity <=85%
Colling Method Natural cooling
Installation Method PCB mounted
