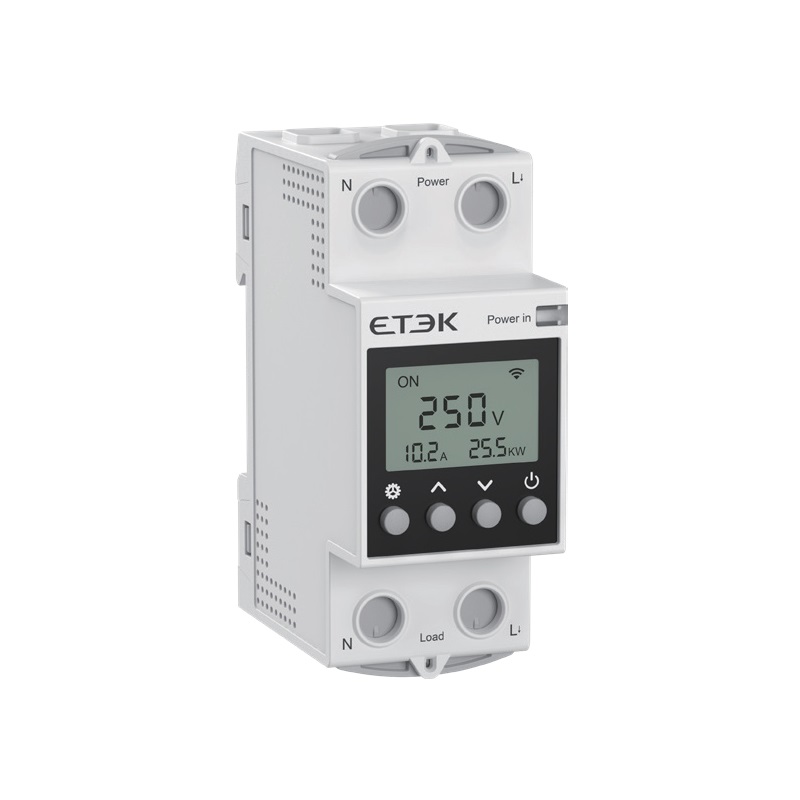

EKA1 Series Smart Relay Switch

Integrated Protection: Combines over-voltage, under-voltage, and over-current protection in one device.
High Current Capacity: Suitable for environments with working currents up to 63A.
Remote Control: Wi-Fi-enabled model allows for remote on/off control via smartphone.
Real-time Monitoring: Uses the Tuya app to monitor voltage, current, and power in real-time.
Adjustable Parameters: Thresholds for main electrical parameters can be set via the device's front panel or smartphone app.
Metering Function: Provides accurate measurement of electrical parameters.
Timing Control: Improve energy management efficiency, enhance power safety.

Inquire NOW PDF

Product Profile

EKA1 Series Smart Protection Switch combines multiple circuit protection functions, including over-voltage, under-voltage, and overcurrent. It is designed for current working environments up to 63A and is available in two versions: one with Wi-Fi communication and one without. The Wi-Fi version allows for remote control of the switch status via smartphone and enables real-time monitoring of electrical parameters such as voltage, current, and power using the Tuya app. Users can also set the thresholds of the main electrical parameters through the front panel of the device or the smartphone app. EKA1 Series Smart Switch is widely used in both home and industrial settings due to its easy installation and user-friendly operation and can be wired to any existing DB or distribution board.

Technical Data

Standard		IEC 60947-5-1

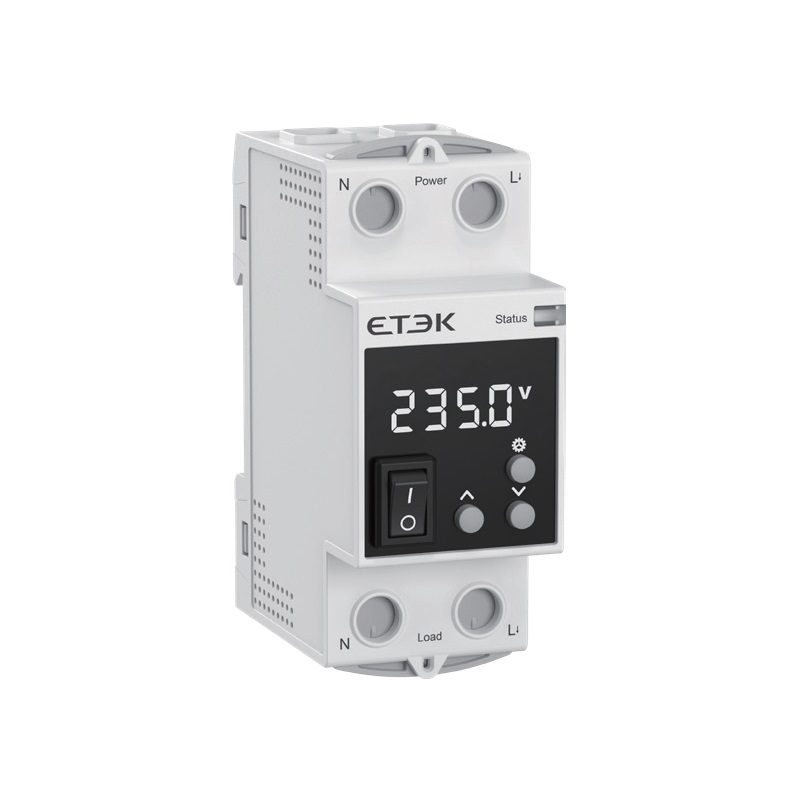

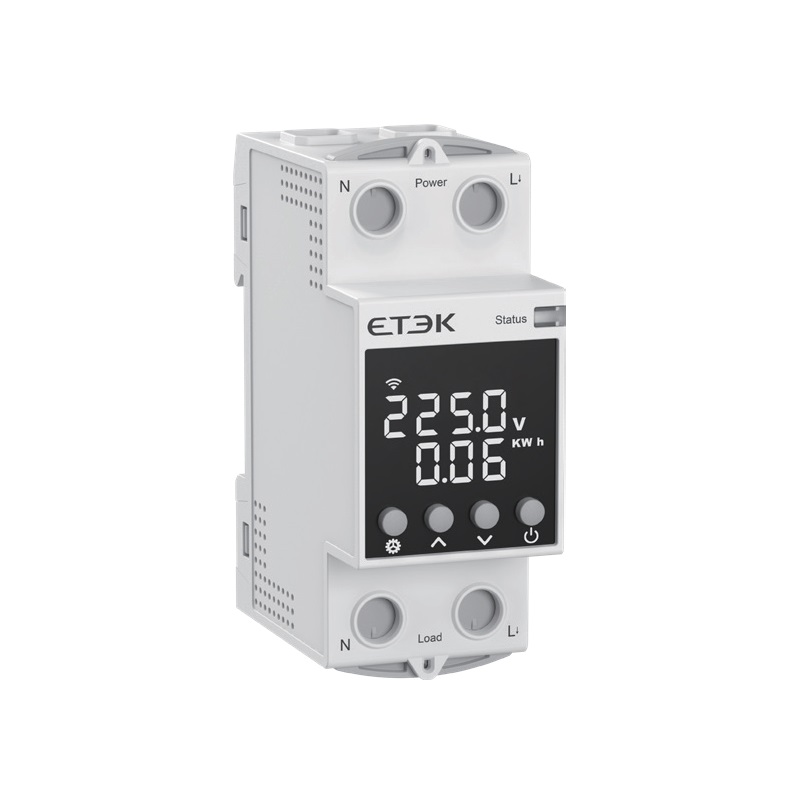

Model		EKA1-TW-E3	EKA1-TW-E2S	EKA1-R-E2S	EKA1-R-V2
Function	Overvoltage protection	✓	✓	✓	✓
	Undervoltage protection	✓	✓	✓	✓
	Overcurrent protection	✓	✓	✓	✗
	Metering function	✓	✓	✓	✗
	Screen off	No operation for 60 seconds	✗	✗	✗
Display type		LCD	Double digital tube	Double digital tube	Single Digital tube

Display data	Real-time voltage	✓	✓	✓	✓
	Real-time current	✓	✓	✓	✗
	Real-time power	✓	✓	✓	✗
	Switch state	✓	✗	✗	✗
	Network status	✓	✓	✗	✗
Power button		Yes
Power status indicator		Yes
Network button		Up button (short press for 3 seconds)		✗	✗
Communication method		Wi-Fi (Tuya)		Local operation
Control type		Remote, Manual		Manual
Poles		1P+N, N pole on the left
Standby power consumption		≤ 1.5W
Operating voltage range		90V~265V
Rated frequency		50/60Hz
Rated operating current		1-63A
Voltage and current measuring accuracy		Class 1.0		Class 2.0
Energy measurement accuracy		Class 2.0		Class 2.0
Protection degree		IP20
Ambient temperature		-25°C to +70°C , Max. 95% humidity
Terminal block protection		Lead seal
Setpoint	Over-voltage range	230V~300V (default:280V)
	Over-voltage recovery range	225V~295V (default:275V)
	Over-voltage tripping time	5s~600s (default:60s)
	Over-voltage recovery delay time	5s~600s (default:60s)
	Under-voltage range	100V~210V (default:115V)
	Under-voltage recovery range	100V~215V (default:120V)
	Under-voltage tripping time	5s~600s (default:60s)
	Under-voltage recovery delay time	5s~600s (default:60s)
	Over-current adjustable range	1A-63A (default:63A)		✗
	Over-current tripping time	5s~600s (default:60s)		✗
	Over-current recovery delay time	5s~600s (default:60s)		✗
