EKA5 Series Smart Relay Switch with Metering

• Remote Control: Manage your switch from anywhere using the Tuya or Smart Life app.

• Timing Functions: Set schedules, countdowns, and cycle timings for automated control.

• Energy Metering: Monitor power consumption statistics in real-time.

• Adjustable Current Rating: Customizable from 1A to 40A via the app.

• Multiple Protection Features: Includes over-current, under-voltage, and over/under-voltage protection.

• Wide Voltage Range: Operates from AC 90V to 265V.

• Easy Installation: Standard DIN rail mounting for quick setup.

Inquire NOW PDF

Product Profile

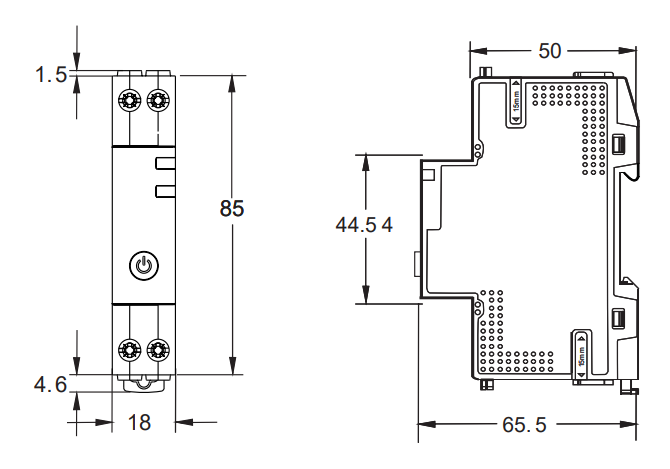

EKA5 is an 18mm width DIN rail mount smart switch that provides convenient and intelligent control of your appliances, protecting circuits with an operating current of up to 40A. Connect it to your home Wi-Fi network and control it remotely via the Tuya App. Integrated energy metering allows you to track power consumption, optimize energy usage, and save money on electricity bills. EKA5 Multi-function Switch is ideal for a variety of applications, including home automation, industrial control, and energy management.

Technical Data

Standard		IEC 60947-5-1
Model		EKA5-TW
Function	Overvoltage protection	✓
	Undervoltage protection	✓
	Overcurrent protection	✓
	Metering function	✓
Network status indicator		Yes
Working Status Indicator		Yes
Power button	two-in-one button	Yes
Network button	two-in-one button	Yes

Communication method	Wi-Fi (Tuya)
Control type	Remote, Manual
Poles	1P+N, N Pole on the left
Standby power consumption	≤ 1.5W
Operating voltage range	90V~265V
Rated frequency	50/60Hz
Rated operating current	1-40A
Voltage and current measuring accuracy	Class 1.0
Energy measurement accuracy	Class 2.0
Protection degree	IP20
Ambient temperature	-20°C to +70°C , Max. 95% humidity
Connection	From top
Setpoint	Over-voltage range	230V~265V (default:265V)
	Over-voltage recovery range	Automatic adjustment according to overvoltage protection value -5V
	Under-voltage range	140V~210V (default:160V)
	Under-voltage recovery range	Automatic adjustment according to overvoltage protection value +5V
	Over-current adjustable range	1A-40A (default:40A)
