EKM1-63DC Miniaturer Circuit Breaker
Inquire
| Standard | IEC/EN 60947-2 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| No. of poles | 1P, 2P, 4P |
| Rated voltage (Ue) | 250VDC(1P), 500VDC(2P), 1000VDC(4P) |
| Rated insulation voltage (Ui) | 500V(1P, 2P), 1000V(4P) |
| Rated currents (In) | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125A |
| Rated short-circuit breaking capacity (Ics=Icn) | 6kA/10kA, Cat. A |
| Rated impulse withstand voltage (Uimp) (1.2/50μs) | 4kV |
| Dielectric test voltage | 3kV (50/60Hz, 1 min.) |
| Thermal tripping characteristics | (1.05-1.30) x In |
| Instantaneous tripping characteristics (fixed) | Ii=10In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | green OFF / red ON |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 50mm2 |
| Max. tightening torque | 3.5N.m |
| Installation | Mounting on 35mm DIN rail |

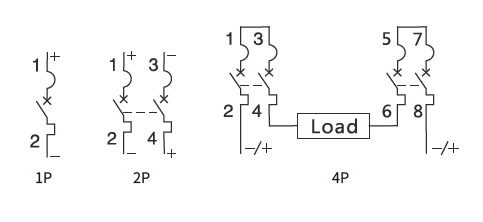

| Incoming method | According to the wiring diagram |
