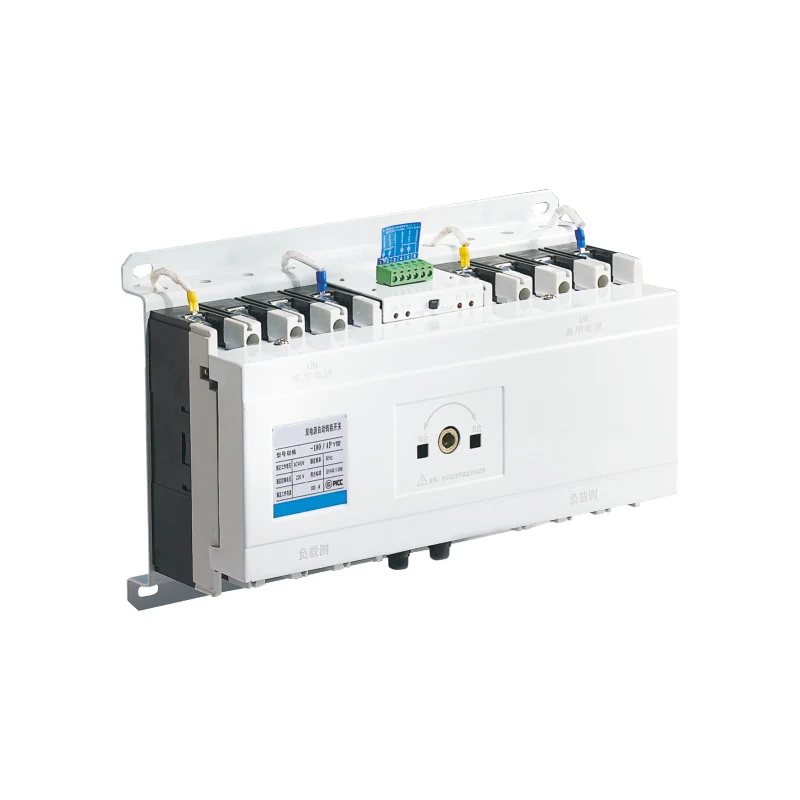

EKATS2 Dual Power Automatic Transfer Switch | 16A-1250A

● Internal accessories: shunt release, undervoltage release, auxiliary contact, alarm contact
● Product functions: automatic power switching and overload, short circuit protection, etc
● Product performance: switching time delay adjustable, accurate action time
● Application: metallurgy, construction, military and other two-way load applications
● Product structure: small size, compact structure, short flying arc, high breaking speed
● Product shell frame: 100,225,250,400,630,800,1250
● Product current: 6A-1250A
● Pole No.: 3, 4
● Product standard: IEC60947-6, GB14048.11
● ATSE: PC class

PDF

Product Profile

EKATS2 series intelligent dual power transfer switch (hereinafter referred to as switch) suitable for AC 50Hz, rated working voltage 400V, rated operating current 16A~1250A. Interchangeable for use in emergency power supply systems commonly used two-way power supply (N) and standby power (R) between (can also be set to manual) and as a control, signaling, interlocking and other uses of the switch control circuit, the products bearing on some models designed mouth communication, enabling remote control, allowing users to achieve unattended substation. Suitable for residential areas, military installations, hospitals, shopping malls and airports and other places.

Note: note when ordering with communication interface.

Technical Data

Main technical parameters

Frame size current	100	225	400	630	800	1250
Model of equipped with circuit breaker	CM1 Series	CM1 Series	CM1 Series	CM1 Series	TM30 Series	TM30 Series
Rated operating current	10, 16, 20, 25, 32, 40, 50, 63, 80, 100	100, 125, 140, 160, 180, 200, 225	225, 250, 315, 350, 400	400, 500, 630	630, 700, 800	800, 1000, 1250
Rated operating voltage	400	400	400	400	400	400
Rated control voltage	230	230	230	230	230	230
Rated frequency	50	50	50	50	50	50
Conversion action time(S) not including time delay deliberately introduced	≤5	≤6	≤9	≤6	≤6	≤6
Utilization category I/Ie-6.0 U/Ue-1.05 COSΦ0.50 Energizing time 0.05 Cycle period≤5 Number of cycles 5	AC-33iB	AC-33iB	AC-33iB	AC-33iB	AC-33iB	AC-33iB
Mechanical life	5000	5000	3000	2500	2500	2500
Electrical life	1000	1000	1000	500	500	500
Uimp. Rated short-circuit impulse withstand voltage	8	8	8	8	12	12
Rated short-circuit breaking capacity	10	10	10	12.6	16	25

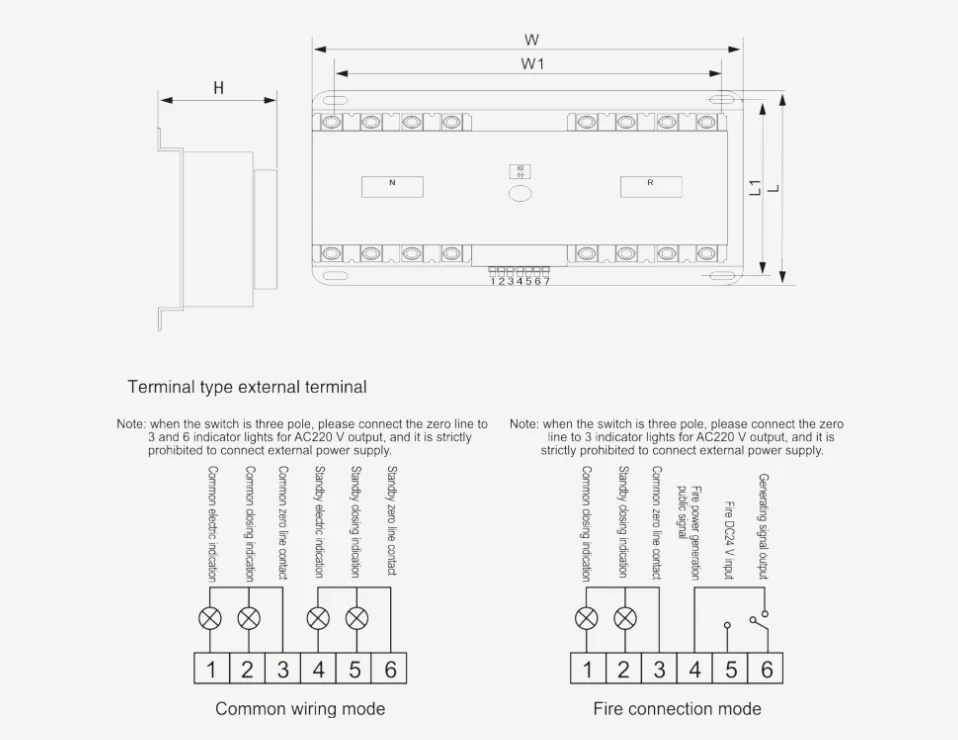

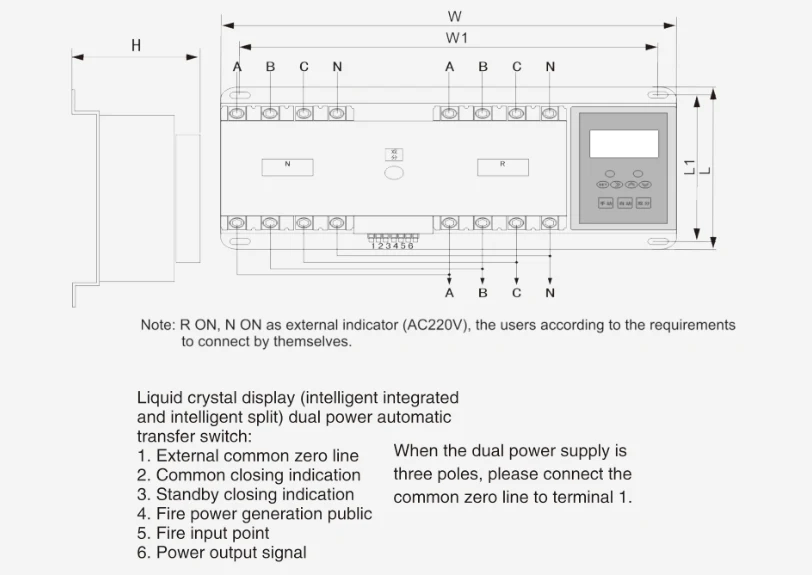

Panel Layout Diagram
