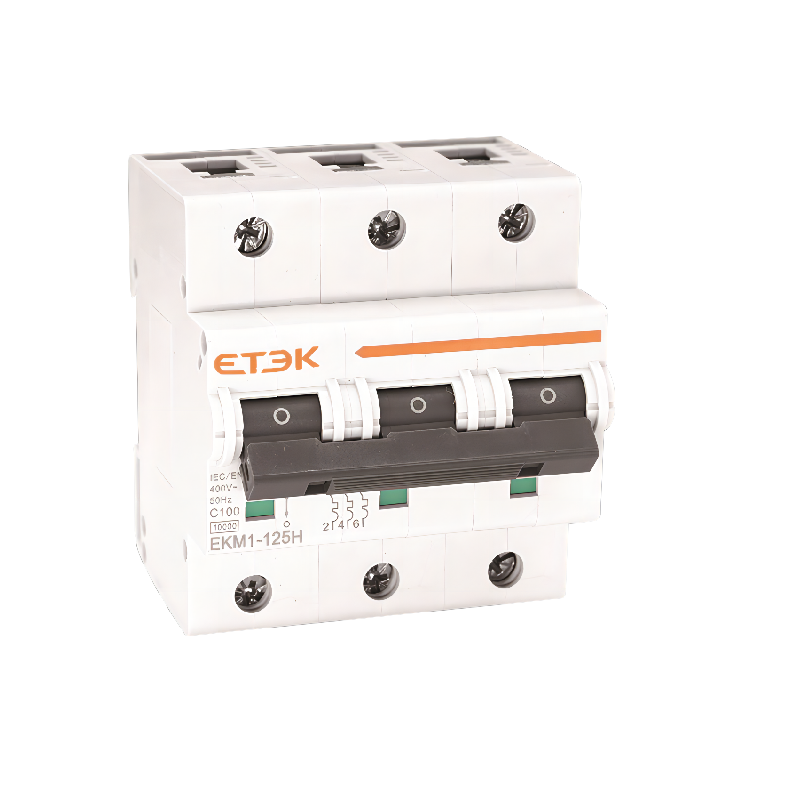

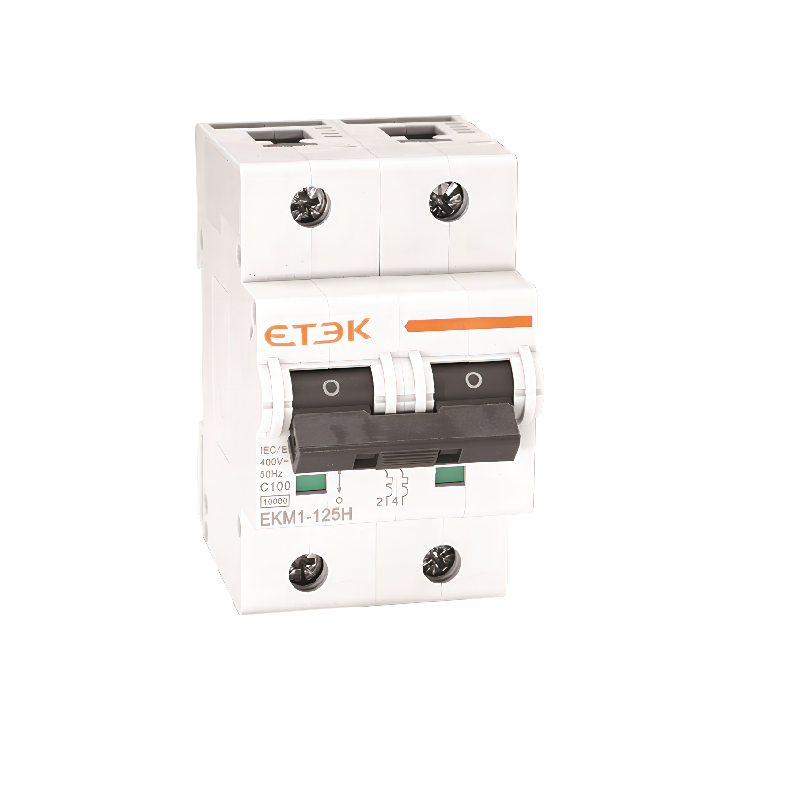

EKM1-125H 15kA 125A MCB

Name: EKM1-125H 15kA 125A MCB
Brand: ETEK
SKU: 02144
Rating: 4.1 (1122 reviews)

● Standard: IEC60898-1, IEC60947-2
● Type of trip: Thermo-magnetic
● Protection: Overcurrent and short circuit
● Rated current: 63~125A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 10kA,15kA
● Tripping curve: C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB

Inquire NOW PDF

EKM1-125H 15kA 125A MCB

Inquire NOW PDF

Product Profile

Technical Data

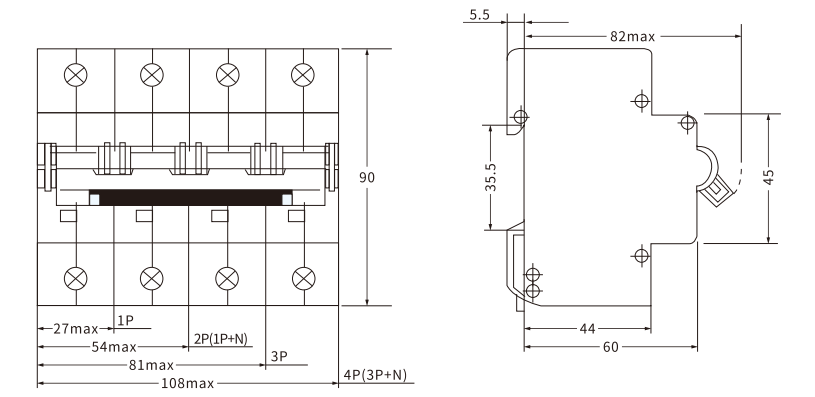

Dimensions

Product Profile

The EKM1-125H MCB, developed on our robust L7 Structure, is designed for high-end and demanding industrial protection. With current ratings from 63A to 125A and superior breaking capacities of 10kA, or up to 15kA, it delivers reliable circuit protection for critical applications.

People ask:different between 6kA,10kA,15A breaking capacity?

6kA: Suitable for applications with lower prospective short-circuit currents, typically at the sub-distribution level or in residential/commercial settings with current-limiting devices upstream.
10kA: A standard rating for general industrial and commercial distribution boards, offering robust protection for a wide range of applications.
15kA: Provides enhanced protection for demanding industrial environments, main distribution boards, or locations closer to the power source where the risk of high fault currents is greater

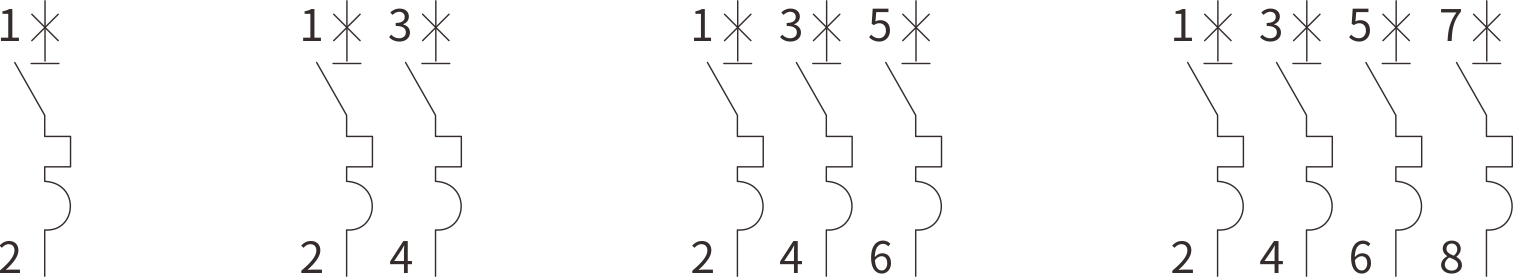

Technical Data

Standard	IEC/EN60898-1	IEC/EN60947-2
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
Rated Current In	63,80,100,125A
Poles	1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	10,000A	15,000A
Energy limiting class	3
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at ind. Freq. for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In	(1.05-1.3) x In
Thermo-magnetic release characteristic	C: (5-10) x In, D:(10-20) x In	(8-12) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature (with daily average≤35℃)	-5℃~+40℃, Max.95%humidity
Terminal connection type	Cable/Pin-type busbar
Terminal connection type	50mm²
Max. tightening torque	3.5Nm
Mounting	Mounting on 35mmDIN rail
Connection	Bi-Directional
