EKM1-125S 10kA 125A Miniature Circuit Breaker
Inquire
● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 1~63A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P, 2P, 3P, 4P, 1P+N, 3P+N
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE, SAA

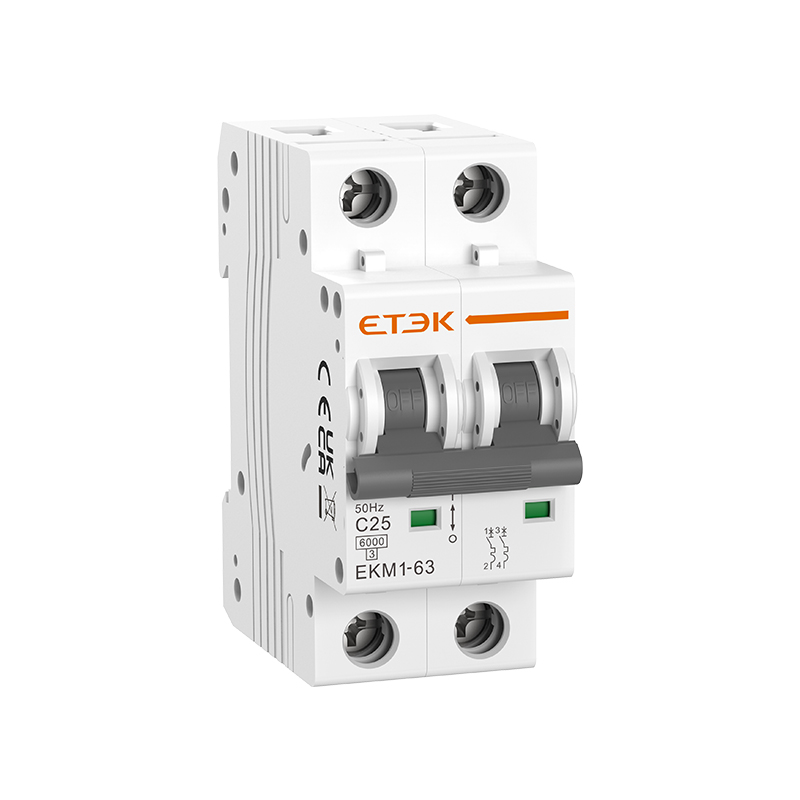

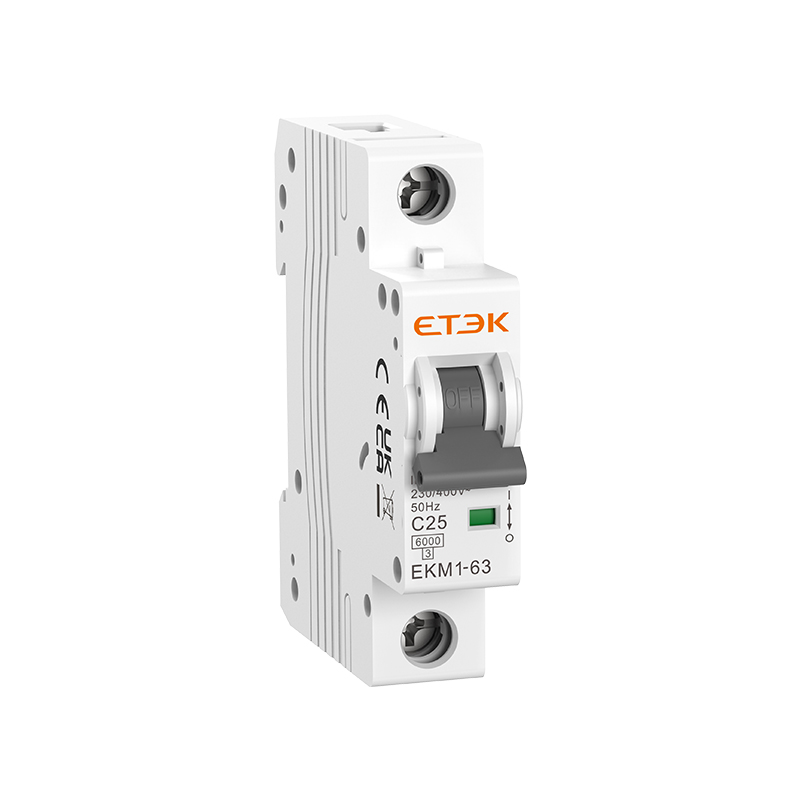

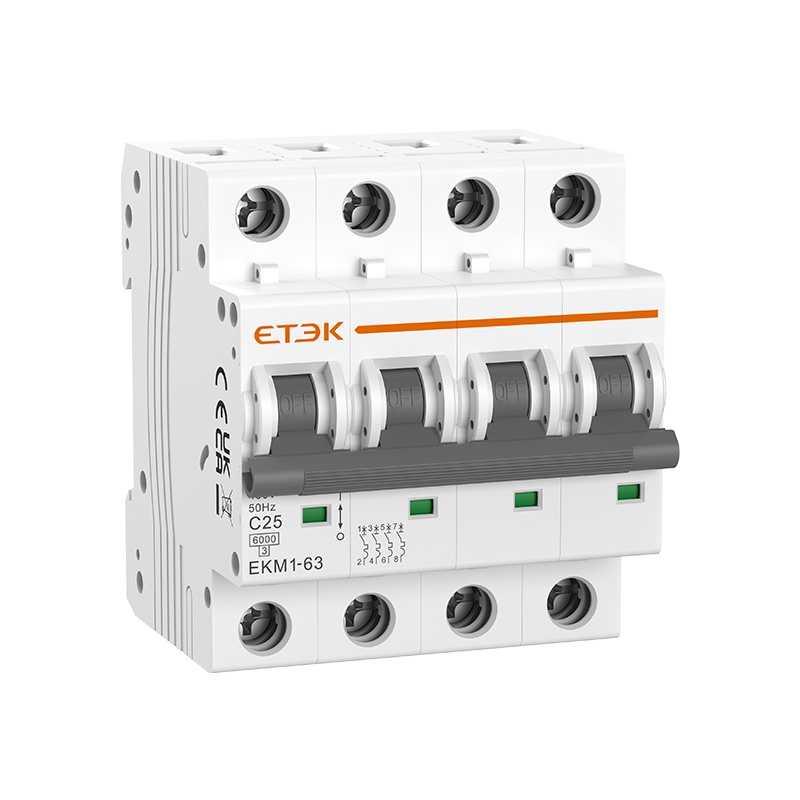

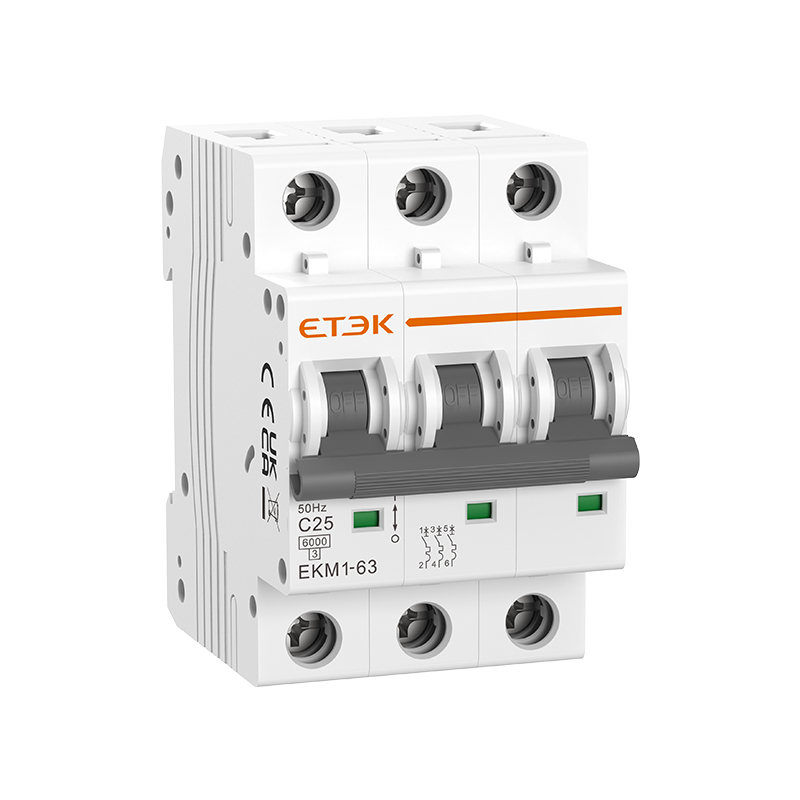

The EKM1-63 MCB is our classic L7-structure 6kA circuit breaker. Having been on the market for over 15 years, this product is a star performer for our company, with cumulative sales exceeding 100 million poles. It maintains a failure rate of approximately 50 PPM and has received consistent positive feedback from customers.
As one of China's top three manufacturers of L7-structure MCBs, ETEK has leveraged this proven platform to develop a range of derivative products. These include the DPN (EKM1-40N), high DC capacity breakers (EKM1-125H, EKM3-125H), and RCBOs (EKL3-63, EKL5-63, EKL2-40).
| Standard | IEC/EN60898-1 |
| Type of trip | Thermo-magnetic |
| No.of poles | 1P,1P+N,2P,3P,3P+N,4P |
| Rated currents (In) | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Rated voltage (Ue) | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq.for 1 min | 2kV |
| Rated insulation voltage Ui | 500V |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 25mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | Bi-directional |
