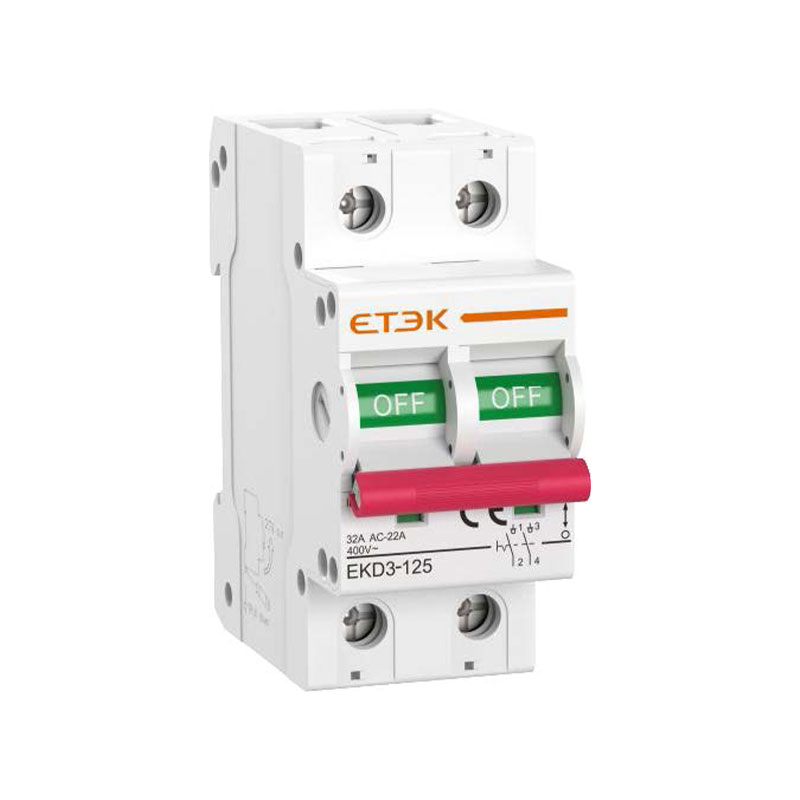

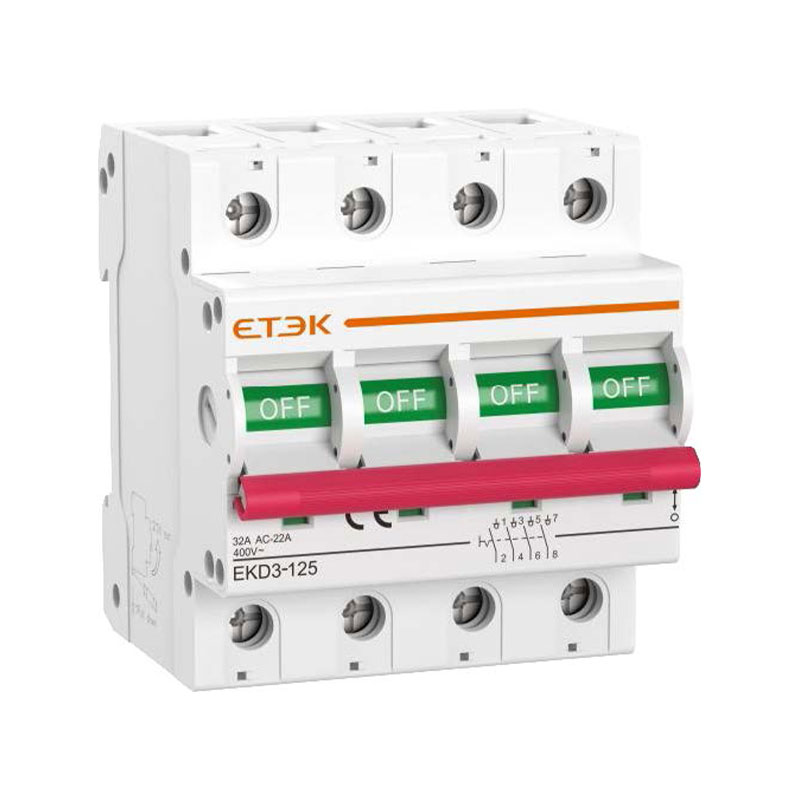

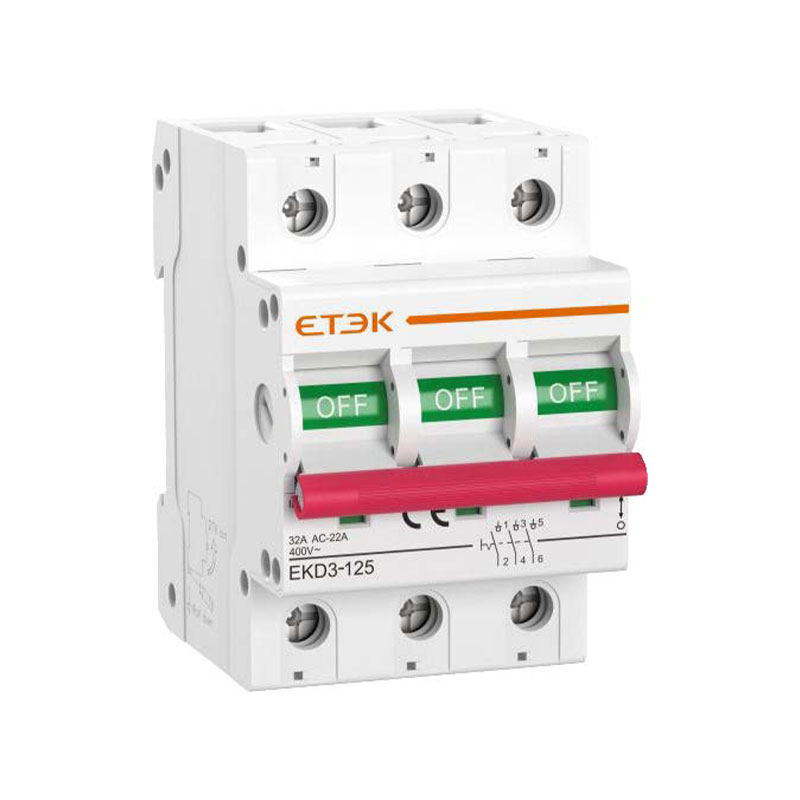

Technical Data

Standard IEC/EN60947-3
No.of poles 1P,2P,3P,4P
Rated currents (In) 16,20,32,40,50,63,80,100,125A
Rated voltage (Ue) 240/415V~
Rated frequency 50/60Hz
Utilization category AC-22A
Short-time withstand current Icw 12Ie, t=1s
Rated short-circuit making capacity Icm 20Ie, t=0.1s
Rated making & breaking capacity 3Ie, 1.05Ue, CosΦ=0.65
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at Ind. Freq.for 1 min 2kV
Rated insulation voltage Ui 690V
Electrical life 2,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -5℃ to +40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar
Max.terminal size for cable 50mm²
Max.tightening torque 3.5N.m
Installation Mounting on 35mm DIN rail
Connection From top and bottom

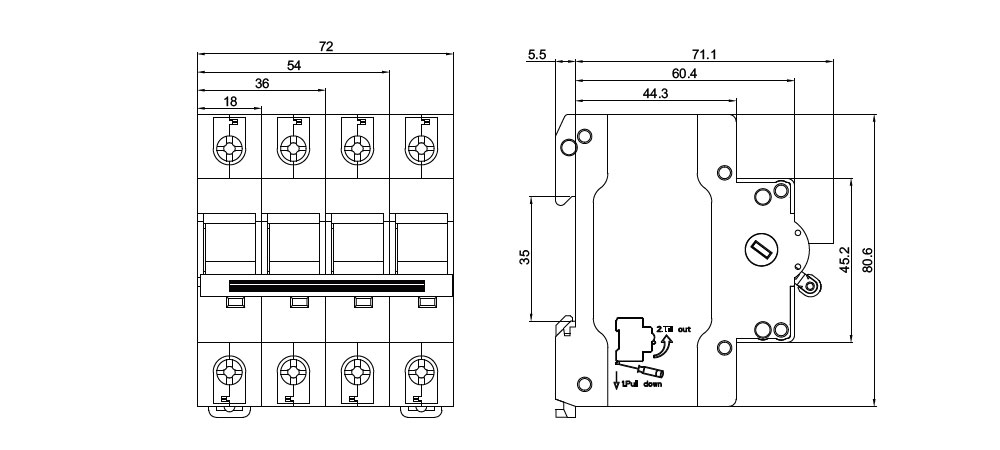

Dimensions
