EKL9-40 6kA Wholesale RCBO

EKL9-40 6kA Wholesale RCBO

Inquire NOW PDF
EKL9-40 6kA Wholesale RCBO

EKL9-40 6kA Wholesale RCBO

Inquire NOW PDF

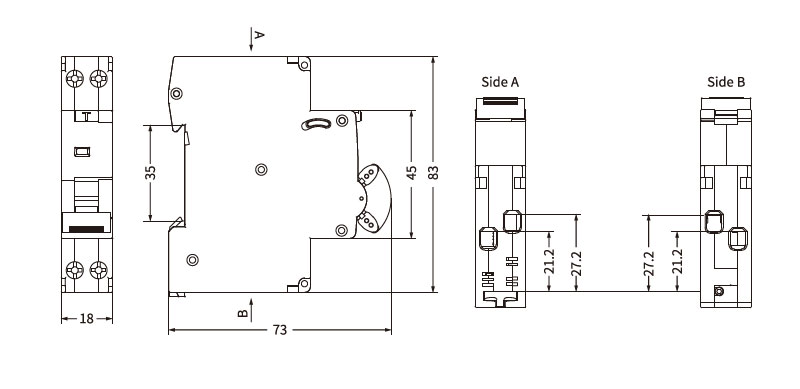

Technical Data

Standard IEC/EN61009-1
Protection Ground fault, Overcurrent and short circuit
Type of trip Ground fault : Electronic
Overload and short circuit :Thermo-magnetic
Type of protection (electric leakage) 1P+N 1module , N line with disconnect
No.of poles AC, A
Rated currents (In) ed
Rated sensitivity currents I△n 6,10,16,20,25,32,40A
Residual current off-time under I△n 10,30,100,300mA
Rated residual making and breaking capacity(I△m) ≤ 0.1s
Rated voltage (Ue) 500A(In≤50A)
Rated frequency 230/240V~
Rated breaking capacity 50/60Hz
Energy Limiting Class 6,000A
Dielectric test voltage at Ind. Freq.f 3
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
or 1 min 2kV
Thermal release characteristic (1.13-1.45) x In
Magnetic release characteristic B:(3-5) x In, C:(5-10) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -25℃ to +40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable 16mm²
Max. tightening torque 2.5N.m
Installation Mounting on 35mm DIN rail
Connection From top and bottom



Circuit Diagram
