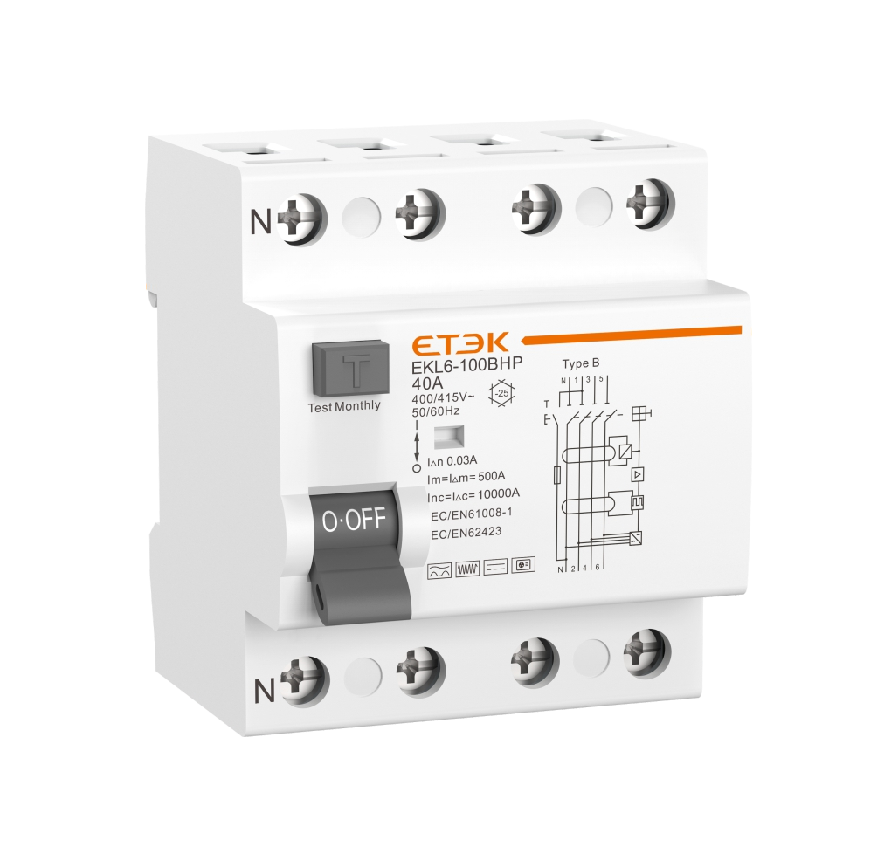

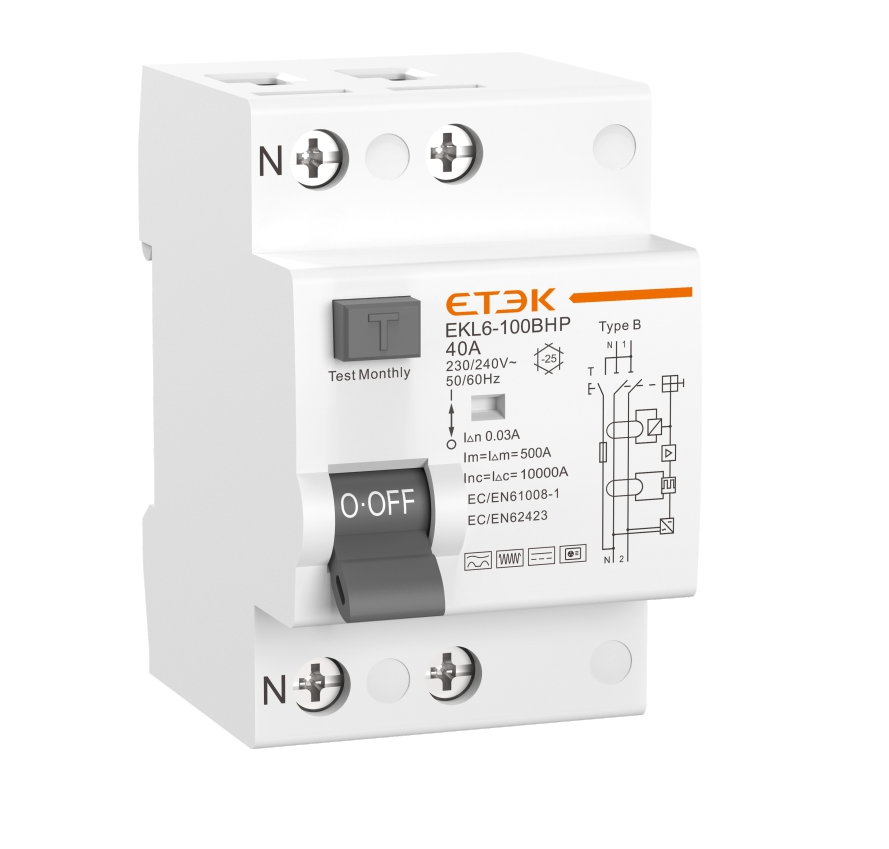

Product Profile

EKL6-100BHP is a Type B HP Residual Curent DevicelRcD) for heat pumps, avalable in 1P+N and 3P+N up to 100 A. it detects Ac, pulsatingDC, and smooth Dc, and is specialy optimized for high-freguency leakage from inverter compressors, it operates bevond 20 kHz. with a raised150 mA trip threshold above 1 kHz,reducing nuisance tripping. Tolerance to DC prevents RcD "blinding"and ensures reiable fault detection.
Complant with Bs 7671 for heat pump instals, EKL6-100BHP is a robust,recognized altemative to "B+" RCDs. its high-frequency and heat pumptuning makes it ideal not only for heat pumps, but also for PV, EV charging, and variable-speed drives.

Applications

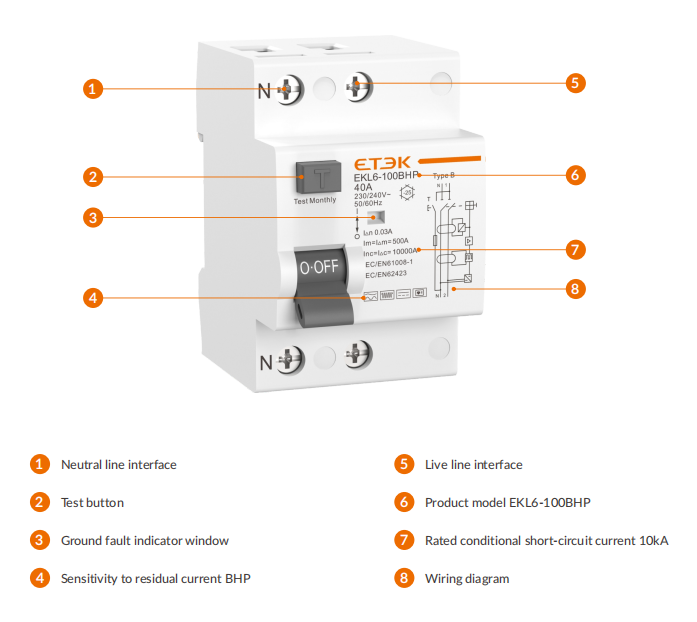

Product Tips

Model Preparation Meaning

RCD Type

	Type AC RCDs detect slowly increasing sinusoidal AC residual currents.
	Type A RCDs detect AC leakage currents and pulsed DC leakage currents below 6mA.
	Type B-HP RCDs detect all types of residual current - AC, DC, mixed, and smooth - at frequencies up to 20kHz and trip at a kHz maximum of 420mA, offering superior fire protection.

Tripping Sensitivity

30mA	This is the most commonly used protection level in homes and commercial buildings, and is suitable for socket protection in general residential environments, offices and commercial places.
100mA	Usually used in situations where personal protection requirements are not as strict as 30mA, or for equipment protection, such as air conditioning systems, industrial equipment, etc.
300mA	Mainly used for fire protection, such as distribution boards and general protection of large electrical equipment.

Tripping Characteristic

Type B RCDs - Standard values of break time and non-actuating time for residual direct currents which result from rectifying circuits and for
residual smooth direct current.

Tripping times
Type	Fault currents	Tripping time at
	Alternating currents	1×IΔn	2×IΔn	5×IΔn	500A
	Pulsating DC currents	1.4×IΔn	2×1.4×IΔn	5×1.4×IΔn	500A
	Smooth DC currents	2×IΔn	2×2×IΔn	5×2×IΔn	500A
Standard		Max. 0.3s	Max. 0.15s	Max. 0.04s	Max. 0.04s

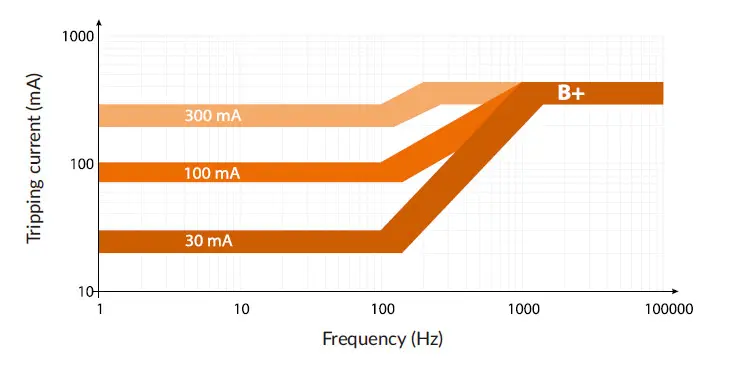

Type B-HP RCDs - Residual non-operating and operating current according to frequencies which differ from the rated frequency 50/60 Hz

Frequency (Hz)	Residual non-operating current (IΔn)	Residual operating current (IΔn)
150	0.5 IΔn	2.4 IΔn
400	0.5 IΔn	6 IΔn
1000	IΔn	14 IΔn

EKL6-100BHP Type B-HB RCDs Wiring Capacity

Rated current In (A)	Cross section area s (mm²)	Tightening torque (N.m)
16	2.5	2.5
25	4	2.5
32	6	2.5
40	10	2.5
63	16	2.5
80	25	2.5
100	35	2.5

Technical Data

Standard	IEC/EN 62423 (Type B) +IEC/EN 61008-1;Compliantwith BS 7671 for heat pump use
Protection	Ground fault
Type of trip	Thermo-magnetic
Residual current type	Type B HP - residual AC, pulsating DC and smooth DC; high-frequency immunity for inverter/heat-pump leakage
Time characteristic	Insensitivity
No. of poles	1P+N,/3P+N
Neutral	Switched, N pole on the left
Insulation voltage (Ui)	500V
Rated voltage (Ue)	1P+N: 230/240V~; 3P+N: 400/415V~
Rated currents (In)	1P+N: 16, 25, 40, 63A ,80, 100A (3 modules); 3P+N: 16, 25, 40, 63, 80, 100A
Rated sensitivity currents (IΔn)	30,100,300mA
Residual current off-time under (IΔn)	≤0.1s
Rated residual making and breaking capacity (IΔm)	500A (In≤50A), 10In (In>50A)
Rated frequency	50/6OHz
Rated short-circuit capacity (Icn)	10kA
Rated conditional residual short-circuit current (IΔc)	10kA
Rated impulse withstand voltage (Uimp) (1.2/5Ous)	4kV
Dielectric test voltage	2kV (50/60Hz,1 min.)
Fire resistance (glow-wire test)	960±15℃ (Enclosure), 650±10℃ (Handle)
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles
Contact position indicator	green OFF/ red ON
Ground fault indicator	White: Normal; Red: Leakage fault
Protection degree	IP20
Ambient temperature	-25℃~ +40℃
Storage temperature	-30℃~ +70℃
Terminal connection type	Cable/ Pin-type/ Fork-type busbar
Max. terminal size for cable	35mm²
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Incoming method	Bi-directional
