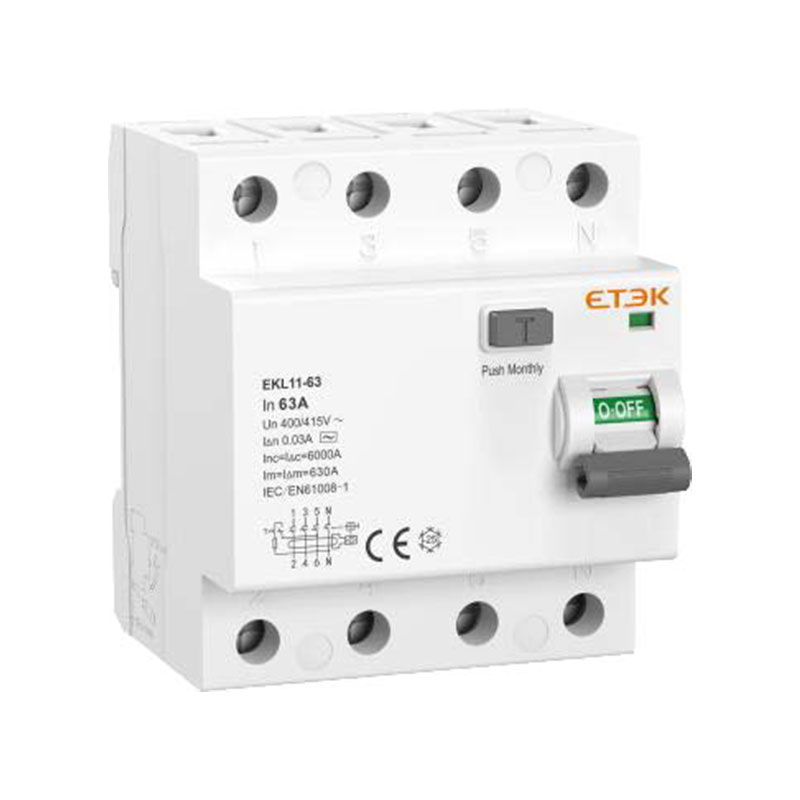

EKL11-63(H) 6kA 10kA Type A RCCB

EKL11-63(H) 6kA 10kA Type A RCCB

Inquire NOW PDF
EKL11-63(H) 6kA 10kA Type A RCCB
EKL11-63(H) 6kA 10kA Type A RCCB

EKL11-63(H) 6kA 10kA Type A RCCB

Inquire NOW PDF

Technical Data

Model EKL11-63(H)T EKL11-63(H)
With Transparent Cover for Line Mark With Transparent Cover
Standard IEC/EN61008-1
Protection Ground fault
Type of trip Electro-magnetic
Type of protection (electric leakage) AC,A,G,S
No.of poles 2P(1P+N), 4P(3P+N), N Pole on right
Rated currents (In) 16,25,32,40,63A
Rated sensitivity currents l△n 10,30,100,300mA (10mA only for ln=16-25A)
Residual current off-time under l△n ≤0.1s
Rated residual making and breaking capacity (I△m) 500A (In≤50A), 10In (In>50A)
Rated voltage(Ue) 1P+N: 230/240V~, 3P+N:400/415V~
Rated frequency 50/60Hz
Rated breaking capacity 6,000A,10,000A
SCPD fuse
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at Ind. Freq.for 1 min 2kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -25°C to +40°C, Max.95% humidity
Terminal connection type Cable/Pin-type busbar/Fork-type busbar
Max.terminal size for cable 25mm²
Max.tightening torque 2.5N.m
lnstallation Mounting on 35mm DIN rail
Connection From top and bottom

Product selection form

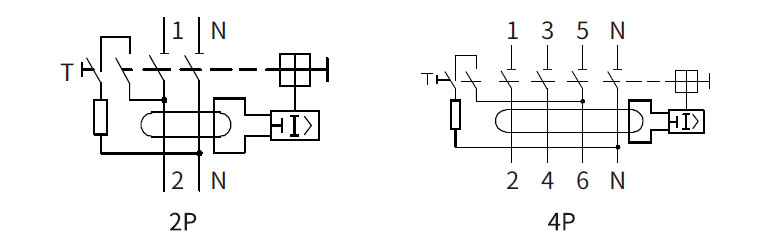

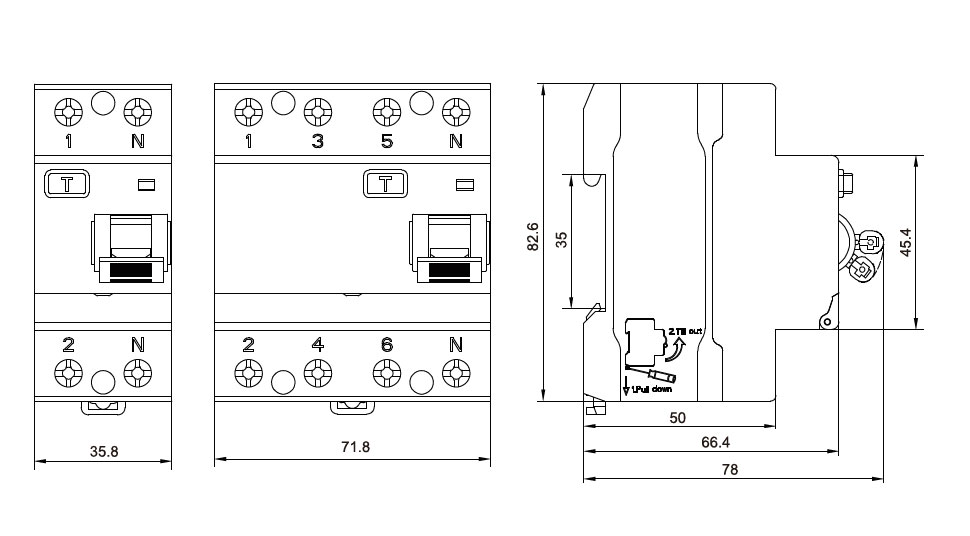

Circuit Diagram
