EKL6-100B 10kA Type B Residual Current Device

EKL6-100B 10kA Type B Residual Current Device

Inquire NOW PDF
EKL6-100B 10kA Type B Residual Current Device
EKL6-100B 10kA Type B Residual Current Device
EKL6-100B 10kA Type B Residual Current Device

EKL6-100B 10kA Type B Residual Current Device

Inquire NOW PDF

Technical Data

Standard IEC61008-1, IEC62423
Protection Ground fault
Type of trip Electro-magnetic
Type of protection (electric leakage) B
No.of poles 2P(1P+N), 4P(3P+N), N Pole on left
Insulation voltage Ui 500V
Rated currents (In) 16,25,40,63,80,100A
Rated sensitivity currents I△n 30,100,300mA
Residual current off-time under I△n ≤ 0.1s
Rated residual making and breaking capacity(I△m) 500A(In≤50A), 10In(In>50A)
Rated voltage (Ue) 2P: 240V~, 4P: 415V~
Rated frequency 50/60Hz
Rated breaking capacity 10,000A
SCPD fuse
Rated impulse withstand voltage(1.2/50) Uimp 4,000V
Dielectric test voltage at Ind. Freq.for 1 min 2.5kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Ground fault indicator Yes
Protection degree IP20
Ambient temperature -25℃ to +40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar/Fork-type busbar
Max.terminal size for cable 35mm²
Max.tightening torque 2.5N.m
Installation Mounting on 35mm DIN rail
Connection From top and bottom

Dimensions

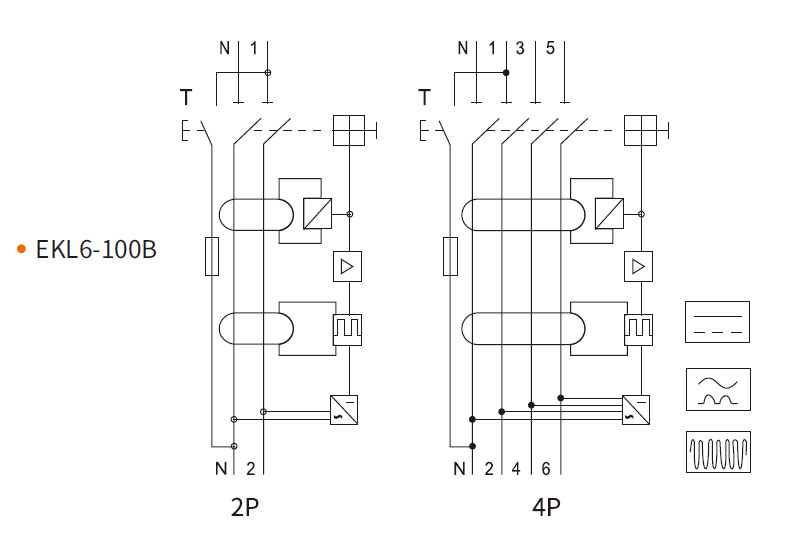

Circuit Diagram
