Product Profile



1. What is a fuse?

A fuse is a replaceable circuit protection device that provides protection to both the equipment and the equipment operator in the event of a circuit overload. It is commonly connected with a circuit in series, and when fault current increases to a certain value, the fuse blows out to cut off the circuit so as to fulfill an aim of protecting other equipment in the circuit. The fuse is the most commonly used component in an overcurrent protection circuit. The traditional fuse mainly consists of two parts of a tube body, of which both ends have metal connecting terminals, and metal melts in the tube body. The majority of fuses are cylinder-shaped, namely cartridge construction.

2. Fuse's function
  1. The fuse can bear overload in a certain range when current fluctuation occurs because of power supply or external interference;

  2. When bigger overload current appears in the circuit, the fuse should cut off the circuit in the set time so as to protect other electric parts in the circuit;

  3. When very big current appears because of short circuit, the fuse can safely cut off the circuit so as to avoid damage by overload current.

Photovoltaic (PV) Solar fuses (gPV Fuse) are utilised to protect solar power gathering equipment against overcurrent, reverse currents and short circuits that can occur within alternative energy gathering PV string installations. Photovoltaic (PV) Solar fuses vary in a number of different ways including fuse speed, voltage and amperage rating, braking capacity and their physical size and shape.

Technical Data

Model

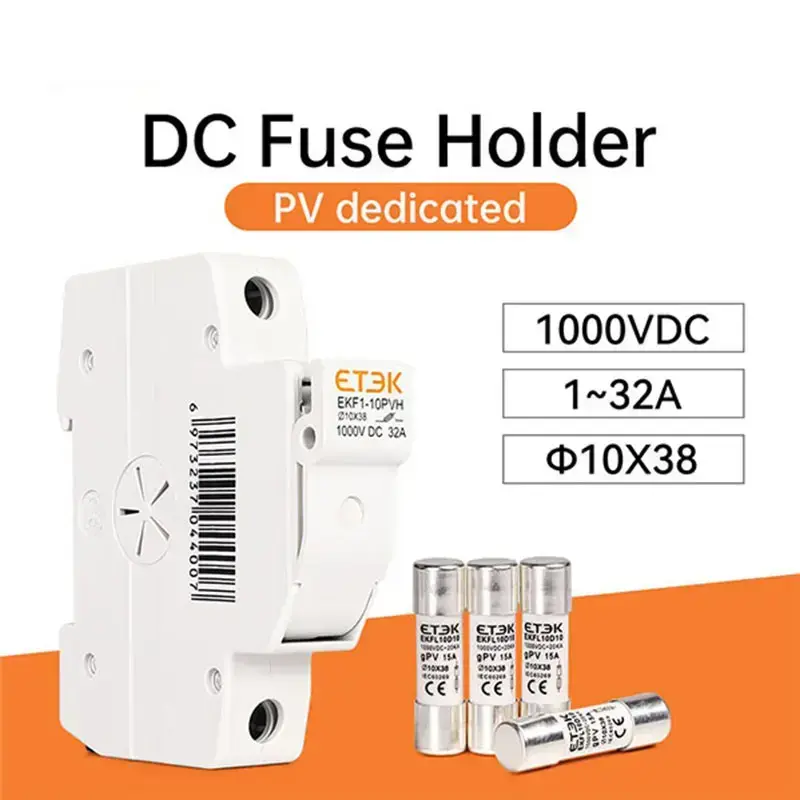

fuse link for pv system 1

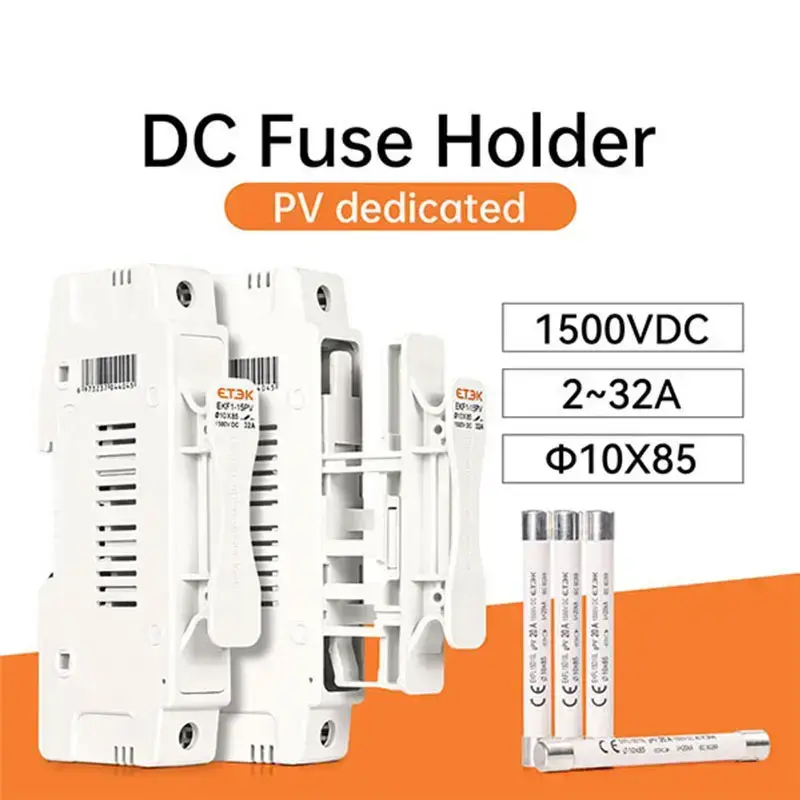

fuse link for pv system 3

fuse link for pv system 4

EKFL10D10

EKFL15D10L

EKFL15D14L

Size

10x38mm

10x85mm

14x85mm

Rated Voltage

1000VDC

1500VDC

1500VDC

Rated Current

1-32A

2-32A

8-50A

Class of Operation

gPV

gPV

gPV

Breaking capacity

20KA

20KA

20KA

Standard:

IEC60269

Dimensions

Product selection form

EKFL-10D10L16

EK

Company Code

FL

Fuse Link

10

DC Voltage Grade (10:1000VDC,15:1500VDC)

D

For Solar DC system

10L

Size of Fuse link (10: 10x38mm 1000V, 10L: 10x85mm 1500V, 14L: 14x85mm 1500V)

16

Current Ratting (01,02...40,50A)



Current Ratting

Reference No. for Fuse Link

Voltage Grade and Size of Fuse Link

EKFL10D10 EKFL15D10L EKFL15D14L
1000VDC 1500VDC 1500VDC

10x38mm

10x85mm

14x85mm

1A

EKFL10D1001





2A

EKFL10D1002

EKFL15D10L02



3A

EKFL10D1003

EKFL15D10L03



4A

EKFL10D1004

EKFL15D10L04



5A

EKFL10D1005

EKFL15D10L05



6A

EKFL10D1006

EKFL15D10L06



8A

EKFL10D1008

EKFL15D10L08

EKFL15D14L08

10A

EKFL10D1010

EKFL15D10L10

EKFL15D14L10

12A

EKFL10D1012

EKFL15D10L12

EKFL15D14L12

15A

EKFL10D1015

EKFL15D10L15

EKFL15D14L15

16A

EKFL10D1016

EKFL15D10L16

EKFL15D14L16

20A

EKFL10D1020

EKFL15D10L20

EKFL15D14L20

25A

EKFL10D1025

EKFL15D10L25

EKFL15D14L25

30A

EKFL10D1030

EKFL15D10L30

EKFL15D14L30

32A

EKFL10D1032

EKFL15D10L32

EKFL15D14L32

35A





EKFL15D14L35

40A





EKFL15D14L40

45A





EKFL15D14L45

50A





EKFL15D14L50
