2-50A Rail Mount Photovoltaic (PV) Solar Fuse Holders for 10 x 85mm 14 x85mm Fuse, 1P, 1500VDC

ETEK 1500VDC 2-50A Rail Mount Photovoltaic (PV) Solar Fuse Holders for 10 x 85mm 14 x85mm Fuse

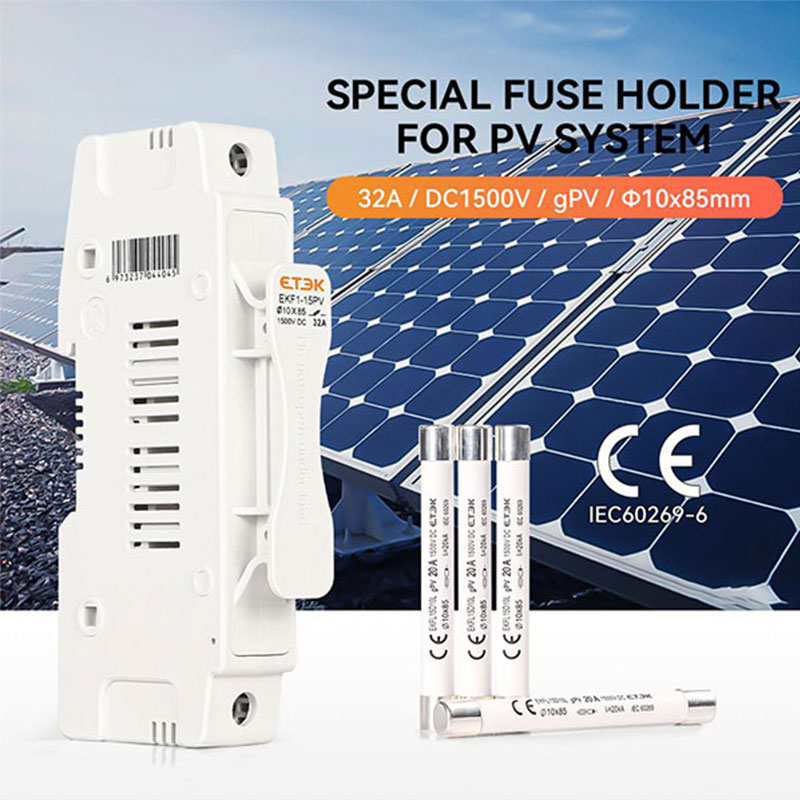

Nominal current of cartridge EKF1-15PV-10L: 2 to 32A. Nominal current of cartridge EKF1-15PV-14L: 8 to 50A. PV fuse holders up to 1500 VDC.

Inquire NOW PDF
2-50A Rail Mount Photovoltaic (PV) Solar Fuse Holders for 10 x 85mm 14 x85mm Fuse, 1P, 1500VDC
2-50A Rail Mount Photovoltaic (PV) Solar Fuse Holders for 10 x 85mm 14 x85mm Fuse, 1P, 1500VDC

ETEK 1500VDC 2-50A Rail Mount Photovoltaic (PV) Solar Fuse Holders for 10 x 85mm 14 x85mm Fuse

Inquire NOW PDF

Product Profile



1.Fuse holders are devices for containing, protecting and mounting fuses. Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or have other means to fully enclose the fuse.

2.Mounting choices for fuse holders include fuse block, fuse clip, panel mount, PC mount, snap mount, and in-line mount. Important environmental parameters to consider when specifying fuse holders include operating temperature.

3.EKF1 Photovoltaic fuse holders provide protection against short-circuits and overloads.

  1. Indicating and non-indicating options available.

  2. Compliance with standards: IEC EN 60269-6.

  3. Small compact design offers ultimate flexibility.

  4. 35mm DIN Rail Mountable.

  5. Easy installation and fuse removal with no additional pullers or tools required.

  6. Nominal current of cartridge EKF1-15PV-10L: 2 to 32A.

  7. Nominal current of cartridge EKF1-15PV-14L: 8 to 50A.

  8. PV fuse holders up to 1500 VDC.

  9. Tin-plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass.

  10. High temperature performance thanks to venting grooves and cooling chambers that improve heat dissipation also for multipole configurations.

  11. Finger safety feature which ensures personnel protection during maintenance (no possibility of getting in touch with live parts during fuse replacement).

Technical Data

Model

EKF1-15PV-10L

EKF1-15PV-14L

Rated Voltage

1500VDC

1500VDC

Rated Current

32A

50A

Size of Fuse Link

10x85mm

14x85mm

Class of Operation

gPV

gPV

Mechanical Life

500

500

Product Width

22mm

22mm

Tightening Torque

2.5Nm 14In-lbs

2.5Nm 14In-lbs

Terminal size for Cable

10mm2 18-5AWG

10mm2 18-5AWG

Ambient temperature (with daily average≤35°℃)

-5℃~+40℃

Storage Temperature

-25℃~+70℃

Standard:

IEC60269-6

Mounting

On DIN rail EN60715(35mm) by means of fast clip device

Dimensions
