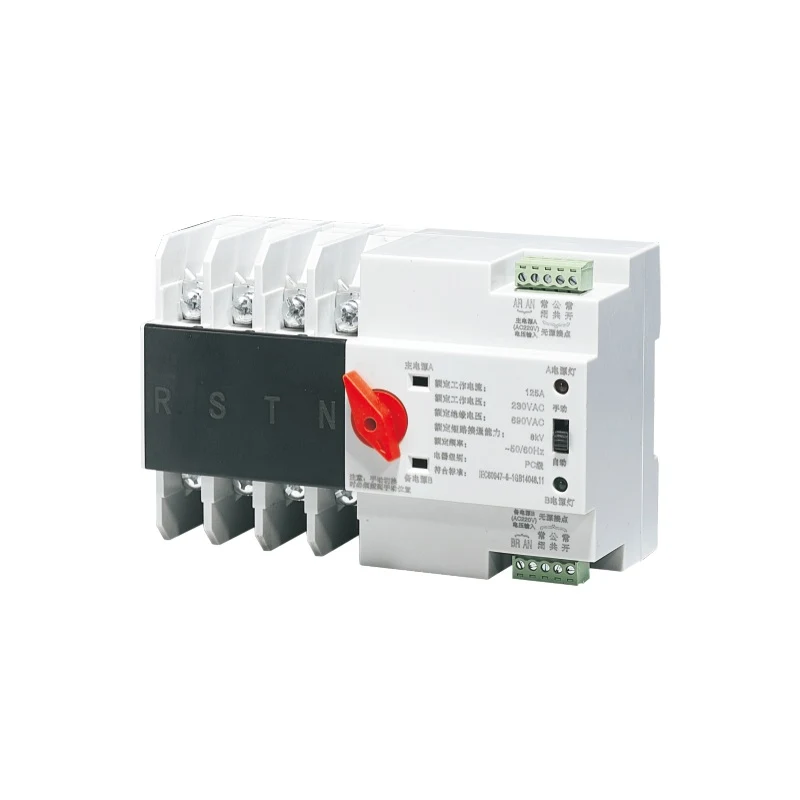

EK2R Series Dual Power Automatic Transfer Switch

● Control device: built in controller
● Product structure: no power off, guide rail type, high current, small volume. two-stage type, simple structure, ATS integration
● Features: fast switching speed, low failure rate, convenient maintenance and reliable performance
● Wiring mode: front plate wiring
● Conversion mode: power grid to power grid, power grid to generator, automatic switching and self recovery
● Product frame: 100
● Product current: 10,16,20,25,32,40,50,63,80,100A
● Product classification: direct load type
● Pole No.: 2,3,4
● Standard: GB/T14048.11
● ATSE: PC class
● Switching time: 0.008s/8ms

PDF

Product Profile

The dual power automatic switch is a newly developed miniature household power switch, which is mainly used to test whether the main power supply or standby power supply is normal. When the normal power supply is abnormal, the standby power supply starts to work immediately, which ensures the continuity, reliability and safety of power supply. This product is specially designed for household rail installation and is specially used for PZ30 distribution box.

The dual power automatic switch is suitable for emergency power supply systems with 50 or 60Hz and rated 400V AC. ATS has the characteristics of solid structure, reliable conversion, convenient installation and maintenance and long service life. It is widely used in various occasions where power failure cannot be sustained, and can be operated by electricity or manually. ATS is composed of TSE and controller.

According to GB/T14048.11, Part 6-1: multifunctional equipment and switchgear is formulated. It can be seen that ATS is the most qualified low-voltage switchgear and control device.

Normal operation time and installation conditions

Ambient air temperature

The maximum temperature shall not exceed 40°C, the minimum temperature shall not be lower than -5°C, and the average temperature within 24 hours shall not be higher than 35°C.

Altitude

The altitude of the installation site should not be higher than 2000m.

Atmospheric conditions

When the maximum temperature reaches 40°C, the relative humidity of the installation site should not exceed 50%; when the temperature is the minimum temperature -5°C, the relative humidity is higher, for example, the temperature is 25°C, and the relative humidity is 90%. Due to the temperature change, special measures should be taken to deal with the occasional condensation on the surface of the product.

Pollution grade

The pollution grade of ATS conforms to grade 3 specified in GB/T14048.11.

Installation category

The installation type of ATS conforms to the category specified in GB/T14048.11.

Installation conditions

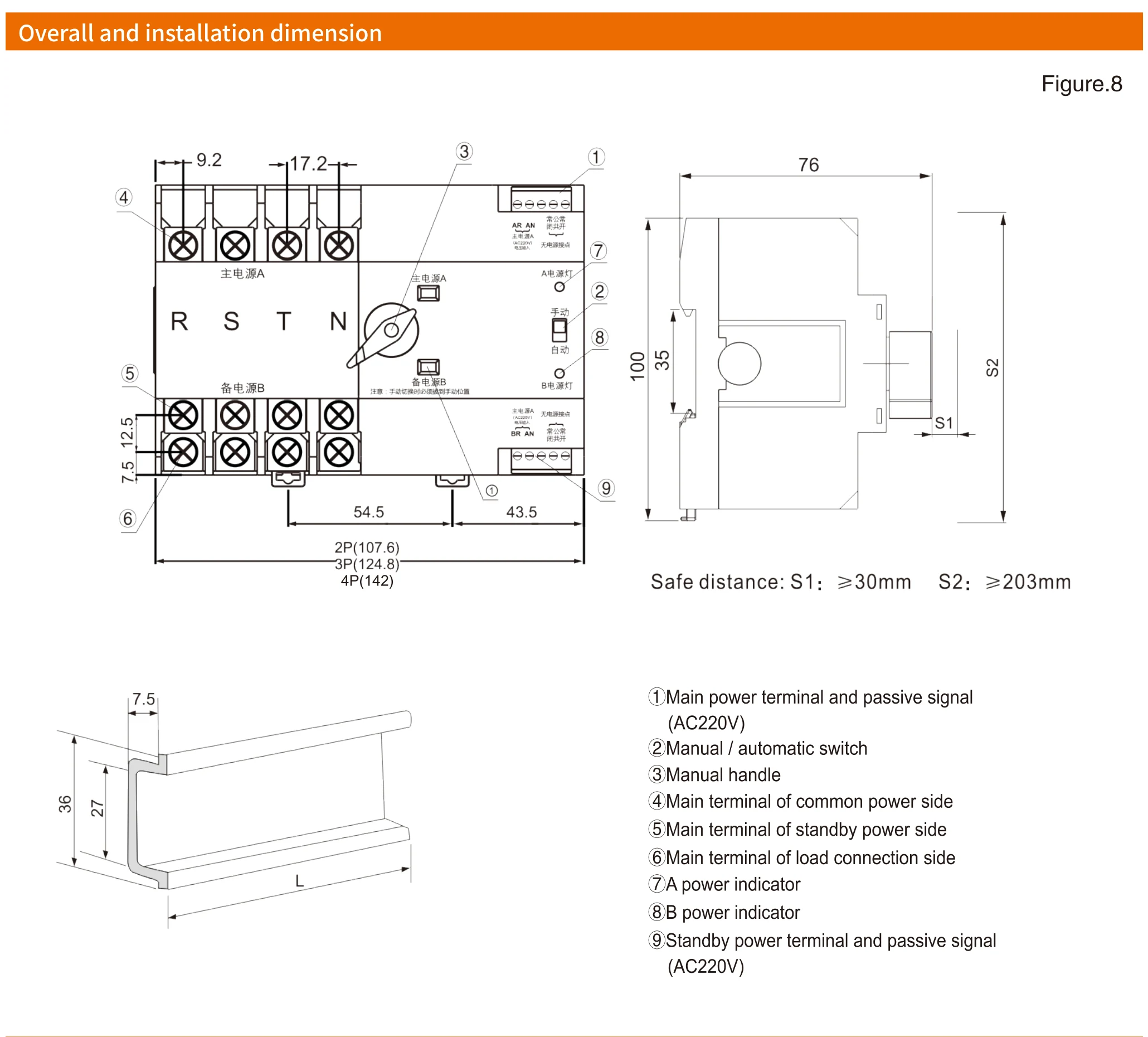

ATS can be installed vertically in control cabinet or distribution cabinet. Make sure the installation distance meets the requirements in Figure 1.

Technical Data

Main technical parameters
Rated current Ie (A)	16, 20, 25	32, 40, 50, 63	80, 100
Insulation voltage Ui	AC690V, 50Hz
Rated voltage Ue	AC400V, 50Hz
Classification	PC class: can be manufactured and withstood without short circuit current
Utilization category	AC-33iB		AC-31B
Pole No.	2P	3P	4P
Weight	0.55	0.6	0.65
Rated short circuit current	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us: AC220V/50Hz Normal working conditions: 85-110%Us
Auxiliary circuit	2 relays, each with two sets of contact converter contact capacity: AC220V/50Hz Ie=5A
Conversion time of contactor	<50ms
Operation conversion time	<50ms
Return conversion time	<50ms
Power off time	<50ms
