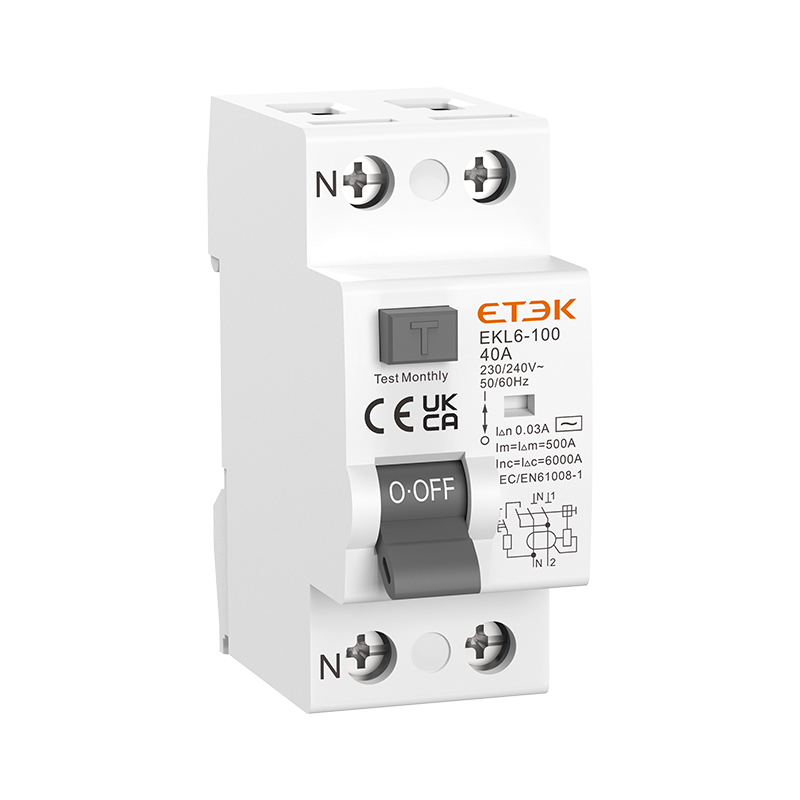

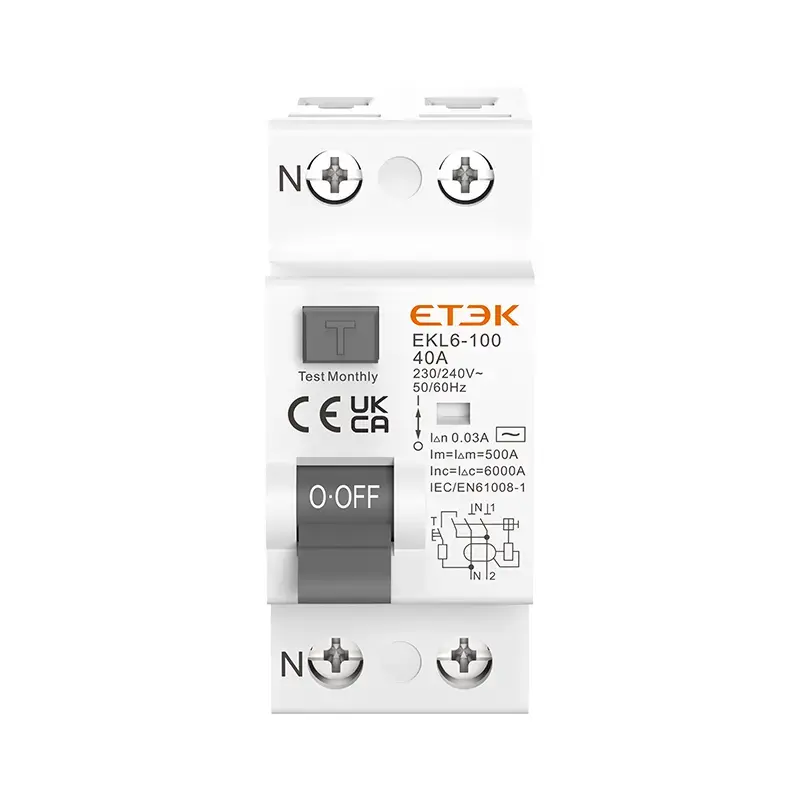

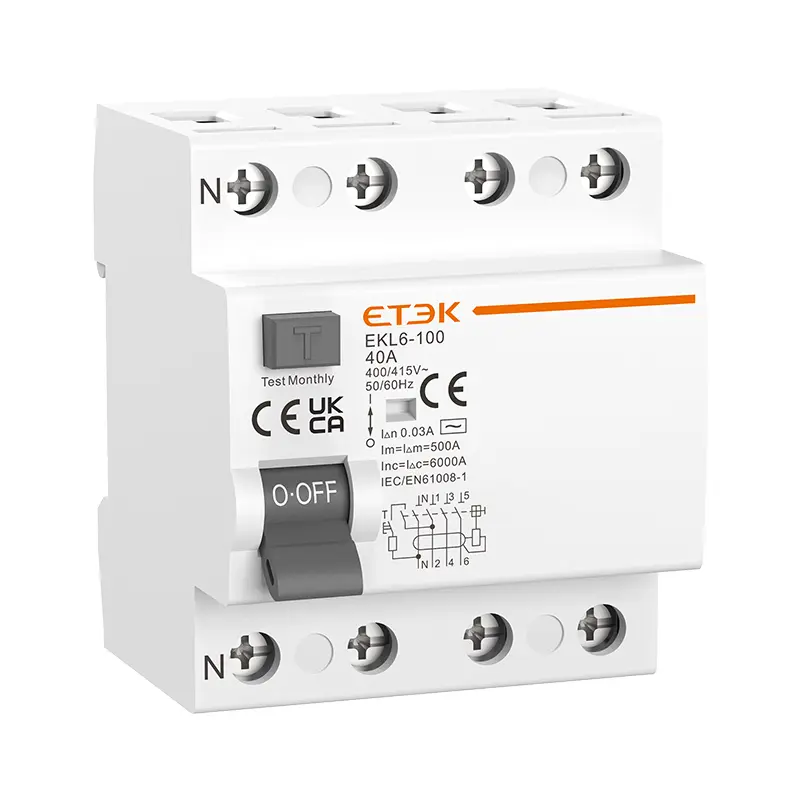

63A EV RCCB | Type A+DC6mA Protection Device
Inquire
EKL6-100 A type RCCB is a electromagnetic type RCD, it can protection A type wave form of the earth leakage sensed, according to IEC61851 standard, it can working as the EV Charging station RCCB, it requirement the charging station with a DC6mA RDC-MD,can choosing with our RCMU, we normally using 3.7kW (1P+N 25A 30mA), 7.3KW(1P+N 40A 30mA). 11KW(3P+N 25A 30mA), 22KW(4P+N 40A 30mA).
|
AC Type |
|||||
|
Breaking capacity |
Poles |
Rated Current(A) |
Sensitivity |
||
|
30mA |
100mA |
300mA |
|||
|
6KA |
1P+N |
16A |
EKL6-100-1N1630 |
EKL6-100-1N16100 |
EKL6-100-1N16300 |
|
25A |
EKL6-100-1N2530 |
EKL6-100-1N25100 |
EKL6-100-1N25300 |
||
|
32A |
EKL6-100-1N3230 |
EKL6-100-1N32100 |
EKL6-100-1N32300 |
||
|
40A |
EKL6-100-1N4030 |
EKL6-100-1N40100 |
EKL6-100-1N40300 |
||
|
63A |
EKL6-100-1N6330 |
EKL6-100-1N63100 |
EKL6-100-1N63300 |
||
|
80A |
EKL6-100-1N8030 |
EKL6-100-1N80100 |
EKL6-100-1N80300 |
||
|
100A |
EKL6-100-1N10030 |
EKL6-100-1N100100 |
EKL6-100-1N100300 |
||
|
3P+N |
16A |
EKL6-100-3N1630 |
EKL6-100-3N16100 |
EKL6-100-1N16300 |
|
|
25A |
EKL6-100-3N2530 |
EKL6-100-3N25100 |
EKL6-100-1N25300 |
||
|
32A |
EKL6-100-3N3230 |
EKL6-100-3N32100 |
EKL6-100-1N32300 |
||
|
40A |
EKL6-100-3N4030 |
EKL6-100-3N40100 |
EKL6-100-1N40300 |
||
|
63A |
EKL6-100-3N6330 |
EKL6-100-3N63100 |
EKL6-100-1N63300 |
||
|
80A |
EKL6-100-3N8030 |
EKL6-100-3N80100 |
EKL6-100-1N80300 |
||
|
100A |
EKL6-100-3N10030 |
EKL6-100-3N100100 |
EKL6-100-1N100300 |
||
|
10KA |
1P+N |
16A |
EKL6-100H-1N1630 |
EKL6-100H-1N16100 |
EKL6-100H-1N16300 |
|
25A |
EKL6-100H-1N2530 |
EKL6-100H-1N25100 |
EKL6-100H-1N25300 |
||
|
32A |
EKL6-100H-1N3230 |
EKL6-100H-1N32100 |
EKL6-100H-1N32300 |
||
|
40A |
EKL6-100H-1N4030 |
EKL6-100H-1N40100 |
EKL6-100H-1N40300 |
||
|
63A |
EKL6-100H-1N6330 |
EKL6-100H-1N63100 |
EKL6-100H-1N63300 |
||
|
80A |
EKL6-100H-1N8030 |
EKL6-100H-1N80100 |
EKL6-100H-1N80300 |
||
|
100A |
EKL6-100H-1N10030 |
EKL6-100H-1N100100 |
EKL6-100H-1N100300 |
||
|
3P+N |
16A |
EKL6-100H-3N1630 |
EKL6-100H-3N16100 |
EKL6-100H-3N16300 |
|
|
25A |
EKL6-100H-3N2530 |
EKL6-100H-3N25100 |
EKL6-100H-3N25300 |
||
|
32A |
EKL6-100H-3N3230 |
EKL6-100H-3N32100 |
EKL6-100H-3N32300 |
||
|
40A |
EKL6-100H-3N4030 |
EKL6-100H-3N40100 |
EKL6-100H-3N40300 |
||
|
63A |
EKL6-100H-3N6330 |
EKL6-100H-3N63100 |
EKL6-100H-3N63300 |
||
|
80A |
EKL6-100H-3N8030 |
EKL6-100H-3N80100 |
EKL6-100H-3N80300 |
||
|
100A |
EKL6-100H-3N10030 |
EKL6-100H-3N100100 |
EKL6-100H-3N100300 |
||
|
A Type |
|||||
|
Breaking capacity |
Poles |
Rated Current(A) |
Sensitivity |
||
|
30mA |
100mA |
300mA |
|||
|
6KA |
1P+N |
16A |
EKL6-100-1N1630A |
EKL6-100-1N16100A |
EKL6-100-1N16300A |
|
25A |
EKL6-100-1N2530A |
EKL6-100-1N25100A |
EKL6-100-1N25300A |
||
|
32A |
EKL6-100-1N3230A |
EKL6-100-1N32100A |
EKL6-100-1N32300A |
||
|
40A |
EKL6-100-1N4030A |
EKL6-100-1N40100A |
EKL6-100-1N40300A |
||
|
63A |
EKL6-100-1N6330A |
EKL6-100-1N63100A |
EKL6-100-1N63300A |
||
|
80A |
EKL6-100-1N8030A |
EKL6-100-1N80100A |
EKL6-100-1N80300A |
||
|
100A |
EKL6-100-1N10030A |
EKL6-100-1N100100A |
EKL6-100-1N100300A |
||
|
3P+N |
16A |
EKL6-100-3N1630A |
EKL6-100-3N16100A |
EKL6-100-3N16300A |
|
|
25A |
EKL6-100-3N2530A |
EKL6-100-3N25100A |
EKL6-100-3N25300A |
||
|
32A |
EKL6-100-3N3230A |
EKL6-100-3N32100A |
EKL6-100-3N32300A |
||
|
40A |
EKL6-100-3N4030A |
EKL6-100-3N40100A |
EKL6-100-3N40300A |
||
|
63A |
EKL6-100-3N6330A |
EKL6-100-3N63100A |
EKL6-100-3N63300A |
||
|
80A |
EKL6-100-3N8030A |
EKL6-100-3N80100A |
EKL6-100-3N80300A |
||
|
100A |
EKL6-100-3N10030A |
EKL6-100-3N100100A |
EKL6-100-3N100300A |
||
|
10KA |
1P+N |
16A |
EKL6-100H-1N1630A |
EKL6-100H-1N16100A |
EKL6-100H-1N16300A |
|
25A |
EKL6-100H-1N2530A |
EKL6-100H-1N25100A |
EKL6-100H-1N25300A |
||
|
32A |
EKL6-100H-1N3230A |
EKL6-100H-1N32100A |
EKL6-100H-1N32300A |
||
|
40A |
EKL6-100H-1N4030A |
EKL6-100H-1N40100A |
EKL6-100H-1N40300A |
||
|
63A |
EKL6-100H-1N6330A |
EKL6-100H-1N63100A |
EKL6-100H-1N63300A |
||
|
80A |
EKL6-100H-1N8030A |
EKL6-100H-1N80100A |
EKL6-100H-1N80300A |
||
|
100A |
EKL6-100H-1N10030A |
EKL6-100H-1N100100A |
EKL6-100H-1N100300A |
||
|
3P+N |
16A |
EKL6-100H-3N1630A |
EKL6-100H-3N16100A |
EKL6-100H-3N16300A |
|
|
25A |
EKL6-100H-3N2530A |
EKL6-100H-3N25100A |
EKL6-100H-3N25300A |
||
|
32A |
EKL6-100H-3N3230A |
EKL6-100H-3N32100A |
EKL6-100H-3N32300A |
||
|
40A |
EKL6-100H-3N4030A |
EKL6-100H-3N40100A |
EKL6-100H-3N40300A |
||
|
63A |
EKL6-100H-3N6330A |
EKL6-100H-3N63100A |
EKL6-100H-3N63300A |
||
|
80A |
EKL6-100H-3N8030A |
EKL6-100H-3N80100A |
EKL6-100H-3N80300A |
||
|
100A |
EKL6-100H-3N10030A |
EKL6-100H-3N100100A |
EKL6-100H-3N100300A |
||
|
Standard |
IEC/EN61008-1 |
|
Protection |
Ground fault |
|
Type of trip |
Electro-magnetic |
|
Type of protection (electric leakage) |
AC, A, G, S |
|
No. of poles |
2P(1P+N), 4P(3P+N), N Pole on left |
|
Rated current In |
16,25,32,40,63,80,100A |
|
Rated sensitivity currents I△n |
10,30,100,300mA (10mA only for In=16-25A) |
|
Residual current off-time under I△n |
≤0.1s |
|
Rated residual making and breaking capacity(I△m) |
500A(In≤50A),10In (In>50A) |
|
Rated voltage Ue |
1P+N: 230/240V~, 3P+N: 400/415V~ |
|
Rated frequency |
50/60Hz |
|
Rated breaking capacity |
6,000A, 10,000A |
|
SCPD fuse |
EKL6-100 |
|
EKL6-100H |
|
|
Rated impulse withstands voltage (1.5/50) Uimp |
4000V |
|
Dielectric test voltage at ind.Freq. for 1min |
2kV |
|
Electrical life |
2,000 Cycles |
|
Mechanical life |
4,000 Cycles |
|
Contact position indicator |
Yes |
|
Ground fault indicator |
Yes |
|
Protection degree |
IP20 |
|
Ambient temperature |
-25℃ to 40℃, Max.95% humidity |
|
Terminal connection type |
Cable/Pin-type busbar/Fork-type busbar |
|
Max. terminal size for cable |
35mm2 |
|
Max. tightening torque |
2.5N.m |
|

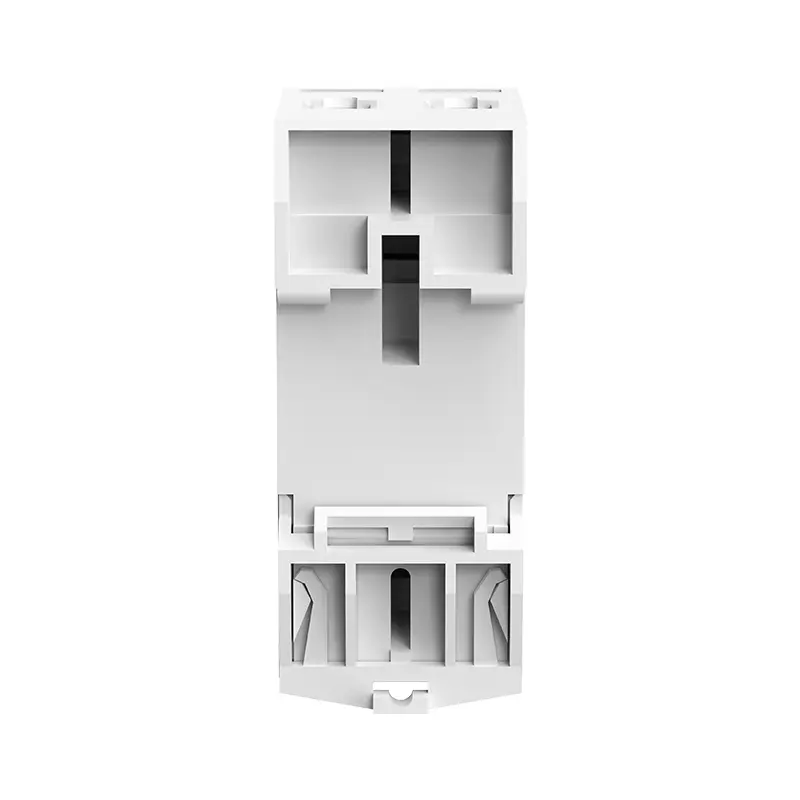

Installation |
Mounting on 35mm DIN rail |
|
Connection |
From top and bottom |
