EKDB10 Distribution Box | IP65 Plastic Waterpro

Name: EKDB10 Distribution Box | IP65 Plastic Waterpro
Brand: ETEK
SKU: 02018
Rating: 4.1 (1059 reviews)

Discover EKDB10 IP65 waterproof distribution boxes made of durable PC plastic. Available in 4-39 ways, single/double/triple layers, ideal for industrial, commercial, and photovoltaic applications. Meet IEC standards for reliable electrical protection. Check dimensions & specs now!

Inquire NOW PDF

EKDB10 Distribution Box | IP65 Plastic Waterpro

Inquire NOW PDF

Product Profile

Technical Data

Dimensions

Product Profile

EKDB10 series waterproof distribution box, made of durablePC engineering plastics, offers excellent mechanical strengthand weather resistance. Designed to meet international lECstandards, it ensures reliable protection for electricalequipment in industrial, commercial, photovoltaic, andother indoor or outdoor applications.Standard: lEC60529,1EC62262:2021,IEC60695-2-10:2013.

Technical Data


Model	Without terminal	EKDB10-4	EKDB10-6	EKDB 10-9	EKDB 10-13
Model	With terminal	EKDB10-4T	EKDB10-6T	EKDB10-9T	EKDB10-13T
Ways		4	6	9	13
Layers		Single
Neutral bar configuration		4 holes	6 holes	6 holes	8 holes
Ground bar configuration		4 holes	6 holes	6 holes	8 holes


Model	Without terminal	EKDB10-18	EKDB10-26	EKDB10-39
Model	With terminal	EKDB10-18T	EKDB10-26T	EKDB10-39T
Ways		18	26	39
Layers		Single	Double	Triple
Neutral bar configuration		10 holes	2x8 holes	2x10 holes
Ground bar configuration		10 holes	2x8 holes	2x10 holes

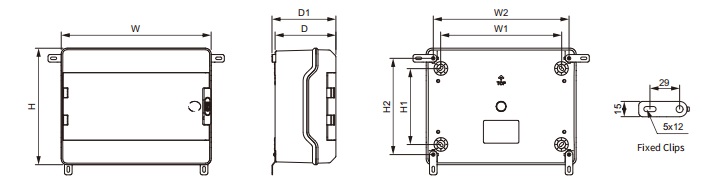

Dimensions

Model	W	H	D	W1	H1	D1	W2	H2
EKDB10-4	128	200	103.5	74	150	-	-	-
EKDB10-6	164	200	103.5	108	150	-	-	-
EKDB10-9	218	200	103.5	162	150	-	-	-
EKDB10-13	296	230	121.5	238	150	126.2	268	190
EKDB10-18	380	230	121.5	328	150	126.2	358	190
EKDB10-26	296.5	390.5	121.5	238	310	136.2	268.5	350.5
EKDB10-39	296.5	550.6	121.5	238	470	136.2	268.5	510.6
