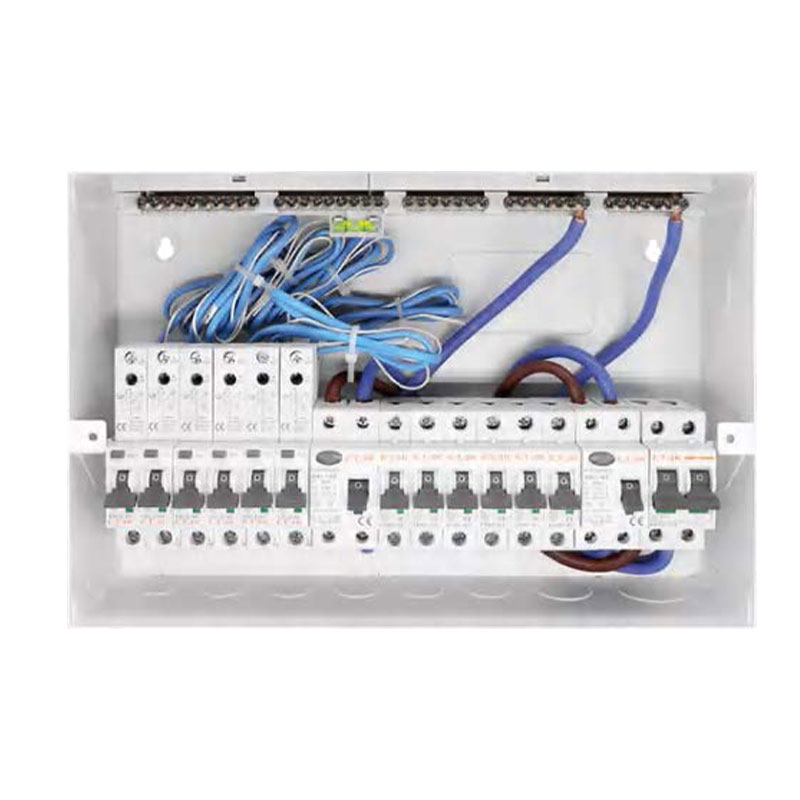

EKDB6 Junction Box

EKDB6 Junction Box

The Distribution Box is used for Terminal power distributing system. The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable)

Inquire NOW PDF
EKDB6 Junction Box
EKDB6 Junction Box
EKDB6 Junction Box

EKDB6 Junction Box

Inquire NOW PDF

Product Profile

The Distribution Box is used for Terminal power distributing system

The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable)

Technical Data

Electrical Rating 100A/single phase, 240/415V AC 50/60Hz
Protection Degree IP40
Material Steel
Installation Method Surface-Mounted

Dimensions

Product selection form

Empty Box

With Neutral and Earth Terminal

Reference Size of Box Description Free ways MCB Selected by user RCBO Selected by user
EKDB6S6-lS 6WAYS DB Box with 1x2P 100A Isolator 4 4 MCB 1P 6KA,
type B or type C,
Rated Current:
6A,10A,16A,20A,25
A,32A,40A
RCBO 1P+N 6KA,
type B or type C,
I△n: 30mA
Rated Current:
6A,10A,16A,20A,25
A,32A,40A
EKDB6S6-RCD 6WAYS DB Box with 1x2P 80A RCD 4 4
EKDB6S10-IS-RCD 10WAYS DB Box with 1x2P 100A Isolator + 1x2P 80A RCD 6 6
EKDB6S10-IS 10WAYS DB Box with 1x2P 100A Isolator 8 8
EKDB6S10-RCD 10WAYS DB Box with 1x2P 80A RCD 8 8
EKDB6S14-IS-RCD 14WAYS DB Box with 1x2P 100A Isolator + 1x2P 80A RCD 10 10
EKDB6S14-IS-RCD2 14WAYS DB Box with 1x2P 100A Isolator + 2x2P 80A RCD 4+4 4+4
EKDB6S18-IS-RCD 18WAYS DB Box with 1x2P 100A Isolator + 1x2P 80A RCD 14 14
EKDB6S18-IS-RCD2 18WAYS DB Box with 1x2P 100A Isolator + 2x2P 80A RCD 6+6 6+6
EKDB6S24-IS-RCD2 24WAYS DB Box with 1x2P 100A Isolator + 2x2P 80A RCD 9+9
