Human appearance design, beautiful and fashionable, in line with the modern aesthetics and ergonomic design concept, easy to use.
The product conform to IEC62196-1, IEC62196-2 European standard and SAEJ1772-2010 American standard.
Protection degree: IP65
Electrical Performance
| Operation Voltage | 230V±10% 50Hz/400V±10%50Hz |
| Operation Current | 16A、32A |
| Continuously Using Time | Continuously working 24h |
| Conductive Terminal Temperature Rise | ≤ 50K |
| Insulation Resistance | ≥500MΩ、DC500V |
| Withstand Voltage | 2500V/min |
| Contact Resistance | ≤0.3Ω |
Mechanical Features
| Mechainical Life | 5,0000 times or more |
| Insertion / Pulling Force During Connection | 45N~80N |
| Withstanding Impact | Tolerable to 2 ton car rolling or 1m height drop without damage |
Major Material
| Conductor Material | Copper alloy + silver plating |
| Enclosure Material | Thermoplastic flame retardant plastic, flame retardant grade UL94V-0 |
Ambient Condition
| Ambient Temperature | -40℃-+50℃ |
| Humidity | <85% |

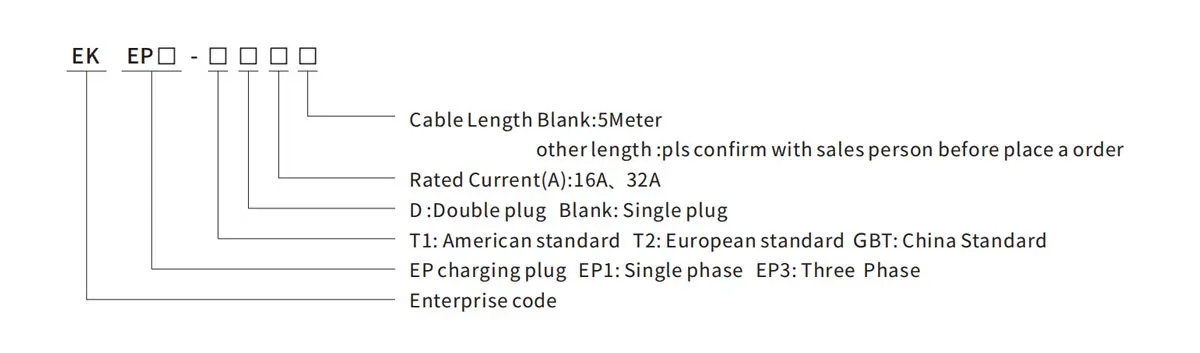

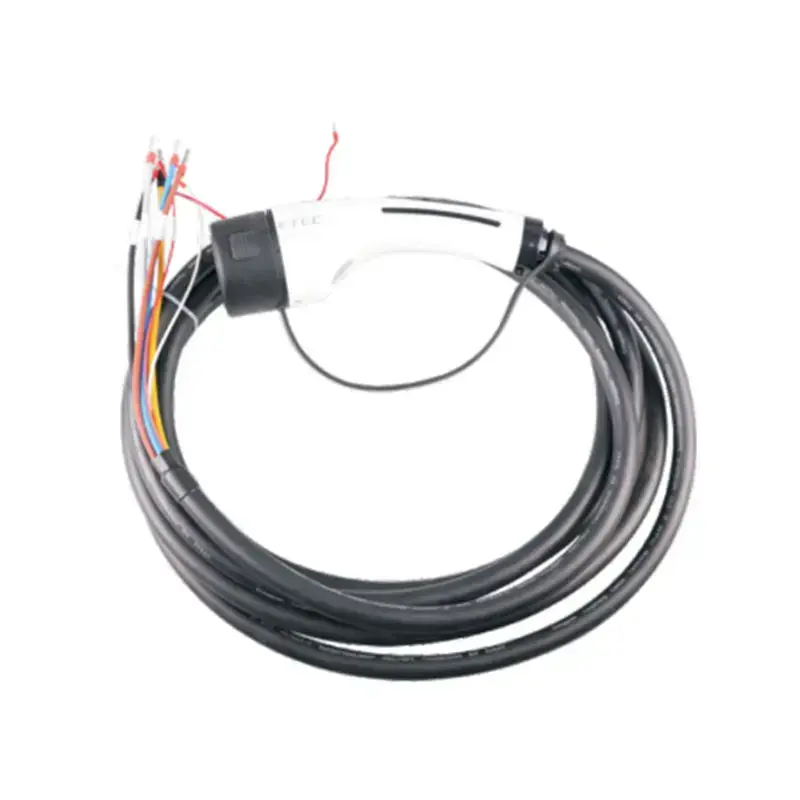

| Model | Specification | Cable |
| EKEP1-T2 | Single phase：16A | 3*2.5mm²+0.5mm² |
| Single phase：32A | 3*6mm²+0.5mm² | |
| EKEP3-T2 | Three phase：16A | 5*2.5mm²+0.5mm² |
| Three phase：32A | 5*6mm²+0.5mm² |
