DeutschSingle Phase 16A 3.6kW Type 2 AC Charging Connector with 5M TPU Cable
Inquire
Human appearance design, beautiful and fashionable, in line with the modern aesthetics and ergonomic design concept, easy to use.
The product conform to IEC62196-1, IEC62196-2 European standard and SAEJ1772-2010 American standard.
Protection degree: IP65
Electrical Performance
| Operation Voltage | 230V±10% 50Hz/400V±10%50Hz |
| Operation Current | 16A、32A |
| Continuously Using Time | Continuously working 24h |
| Conductive Terminal Temperature Rise | ≤ 50K |
| Insulation Resistance | ≥500MΩ、DC500V |
| Withstand Voltage | 2500V/min |
| Contact Resistance | ≤0.3Ω |
Mechanical Features
| Mechainical Life | 5,0000 times or more |
| Insertion / Pulling Force During Connection | 45N~80N |
| Withstanding Impact | Tolerable to 2 ton car rolling or 1m height drop without damage |
Major Material
| Conductor Material | Copper alloy + silver plating |
| Enclosure Material | Thermoplastic flame retardant plastic, flame retardant grade UL94V-0 |
Ambient Condition
| Ambient Temperature | -40℃-+50℃ |
| Humidity | <85% |

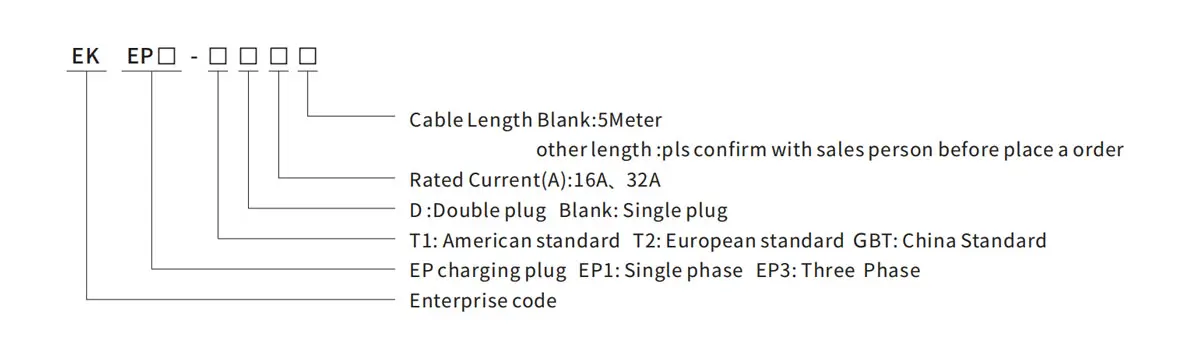

| Model | Specification | Cable |
| EKEP1-T2 | Single phase：16A | 3*2.5mm²+0.5mm² |
| Single phase：32A | 3*6mm²+0.5mm² | |
| EKEP3-T2 | Three phase：16A | 5*2.5mm²+0.5mm² |
| Three phase：32A | 5*6mm²+0.5mm² |
