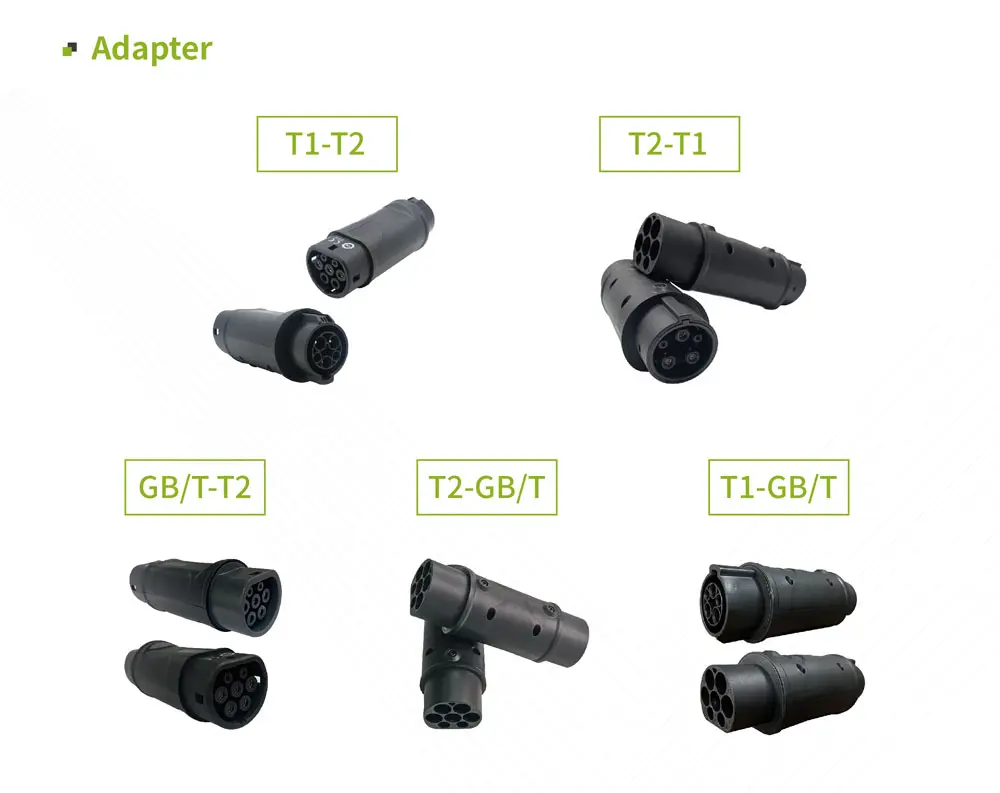

Type 2 to GB/T EV Charging Adapter EU to China Converter
T2 male to GB/T male adapter
Quick answer: This Type 2 to GB/T EV charging adapter is used for EU-to-China charging connector conversion. It helps connect compatible Type 2 charging equipment with GB/T vehicle or charging interfaces, depending on charger, vehicle and local standard requirements.
Product Profile
Product Profile
ELECTRICAL PERFORMANCE
Rated current: 16A/32A
Operation voltage: 110V-250V AC
Insulation resistance: >1000MΩ (DC500V)
Contact Resistance: 0.5mΩ Max
Terminal temperature rise: <50K
Withstand voltage: 2000V
MECHANICAL PROPERTIES
Mechanical life: no-load plug in/out > 10000 times
Coupled insertion force: 45N
ENVIRONMENTAL PERFORMANCE
Operating temperature:-30℃- + 50℃
APPLIED MATERALS
Case material: thermoplastic, flame retardant grade UL94 V-0
Terminal: Copper alloy,silver plating
