ED1 Power Track Socket | Modular Track System

ED1 modular power track socket for surface mounting. Square tracks 500–1200mm with or without switch; German, British and USB (A+C) modules. Black/Grey, AC 250V~, up to 32A/8000W, IP20.

● Product type: Power Track Socket System
● Series: ED1
● System: Square power track + modular sockets / USB charger
● Track types: Square Track (Left Wiring); Square Track With Switch (Left Wiring)
● Track lengths: 500 / 800 / 1000 / 1200mm
● Colors: Black / Grey
● Modules: German socket, British socket, (A+C) USB charger
● Operation voltage: AC 250V~
● Protection degree: IP20
● Installation: Surface-mounted

PDF
Product Profile

Product Profile

ED1 Series Power Track Socket is a modular surface-mounted power distribution system for kitchens, offices and workspaces. Square tracks in multiple lengths accept plug-in modules including German sockets, British sockets and dual USB chargers, enabling flexible outlet layout along the track. Tracks are available without or with an integrated switch, in Black or Grey finishes.

Key Features

  • Modular power track system with interchangeable socket and USB modules
  • Square track lengths: 500 / 800 / 1000 / 1200mm
  • Square track without switch up to 32A / 8000W
  • Square track with switch up to 25A / 6250W
  • German socket (16A), British socket (13A) and (A+C) USB charger modules
  • Color options: Black / Grey
  • Surface-mounted installation, IP20
  • Operation voltage AC 250V~
Model Preparation Meaning

Model Preparation Meaning

ED1 series order codes follow the catalog model list.

  • ED1 — Series code (Power Track Socket)
  • Z — Square Track (Left Wiring), 32A / 8000W
  • S — Square Track With Switch (Left Wiring), 25A / 6250W
  • M — Plug-in modules (German / British / USB)
  • Track length codes: 1001=500mm, 1002=800mm, 1003=1000mm, 1004=1200mm (Black); 1101–1104 same lengths in Grey
  • Module examples: ED1M1001/1008 German; ED1M1101/1102 British; ED1M1301/1302 USB (A+C)
Technical Data

Technical Data

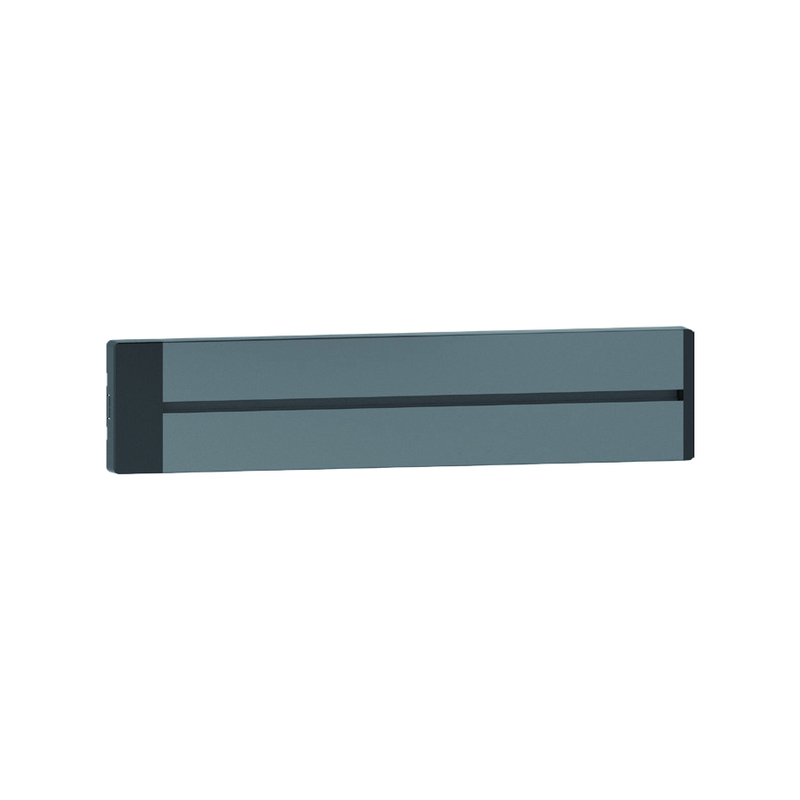

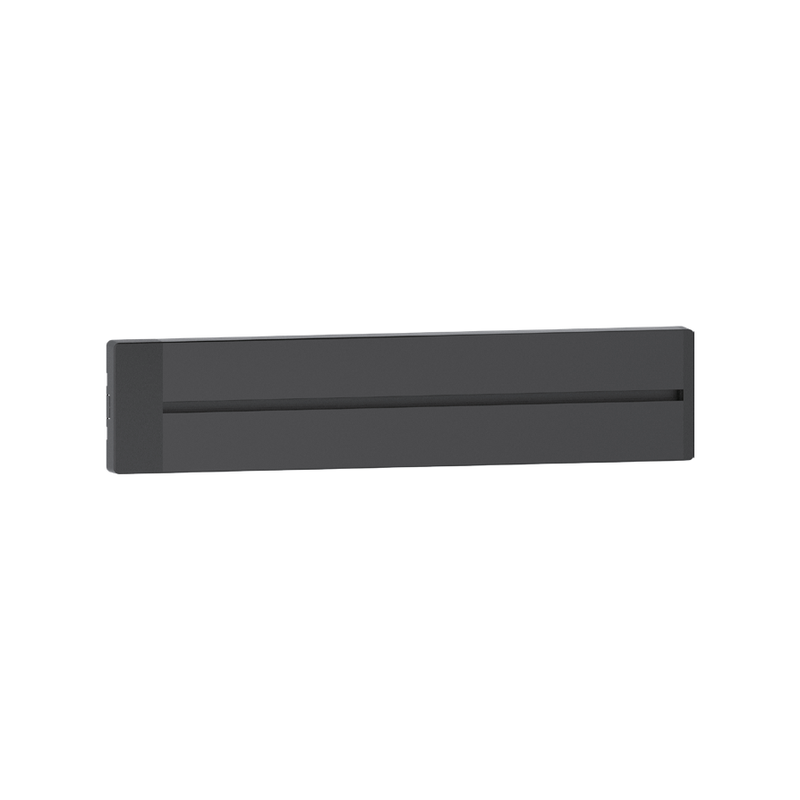

Square Track (Left Wiring)

  ED1 square track black ED1 square track grey
Model ED1Z1001 ED1Z1002 ED1Z1003 ED1Z1004 ED1Z1101 ED1Z1102 ED1Z1103 ED1Z1104
Track length 500mm 800mm 1000mm 1200mm 500mm 800mm 1000mm 1200mm
Color Black Grey
Operation voltage AC 250V~
Rated power 8000W
Maximum electric current 32A
Protection degree IP20
Installation mode Surface-mounted

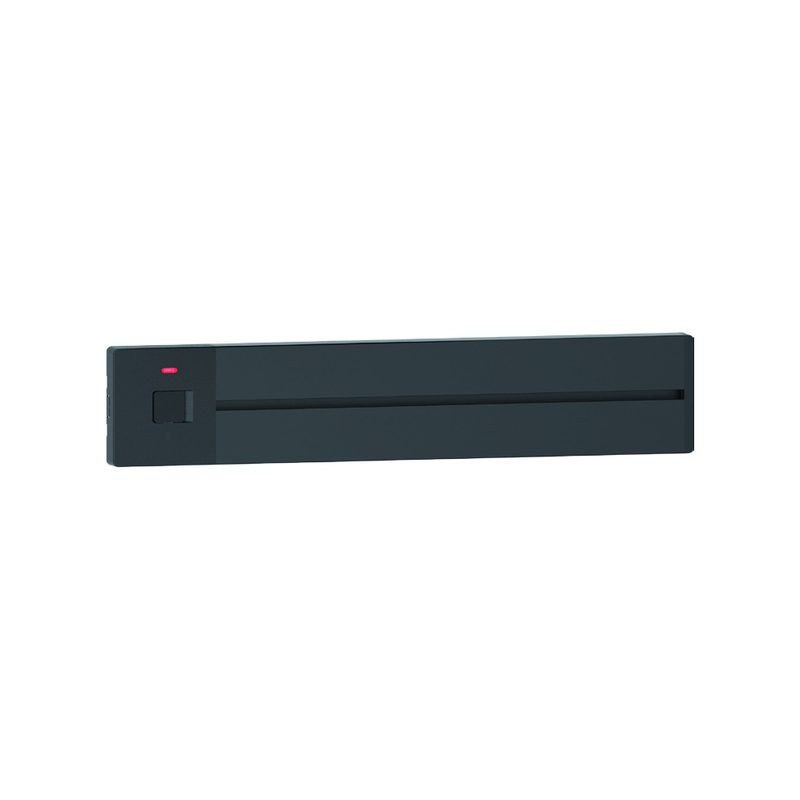

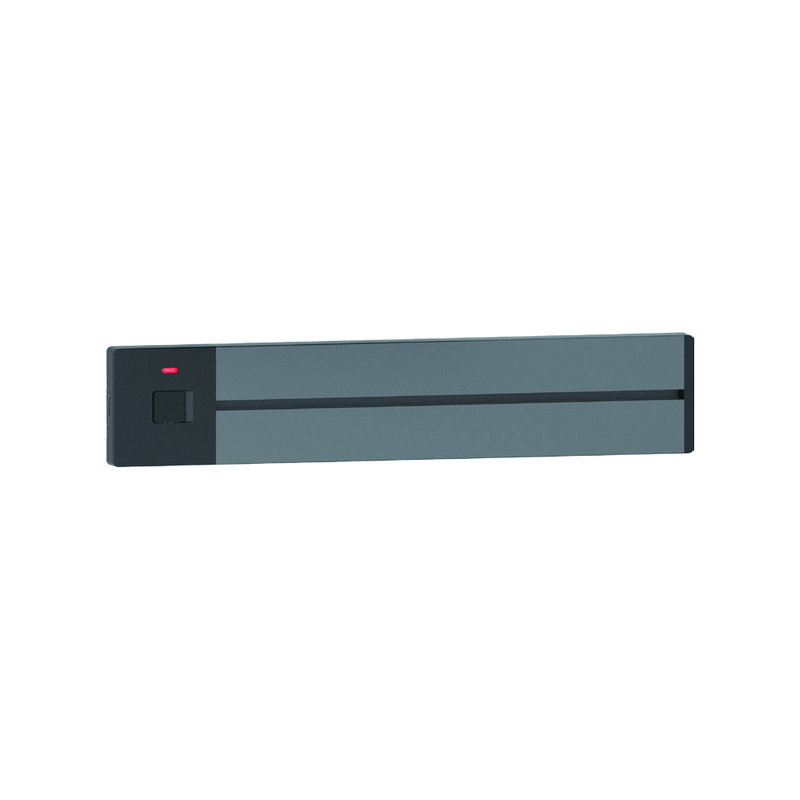

Square Track With Switch (Left Wiring)

  ED1 square track with switch black ED1 square track with switch grey
Model ED1S1001 ED1S1002 ED1S1003 ED1S1004 ED1S1101 ED1S1102 ED1S1103 ED1S1104
Track length 500mm 800mm 1000mm 1200mm 500mm 800mm 1000mm 1200mm
Color Black Grey
Operation voltage AC 250V~
Rated power 6250W
Maximum electric current 25A
Protection degree IP20
Installation mode Surface-mounted

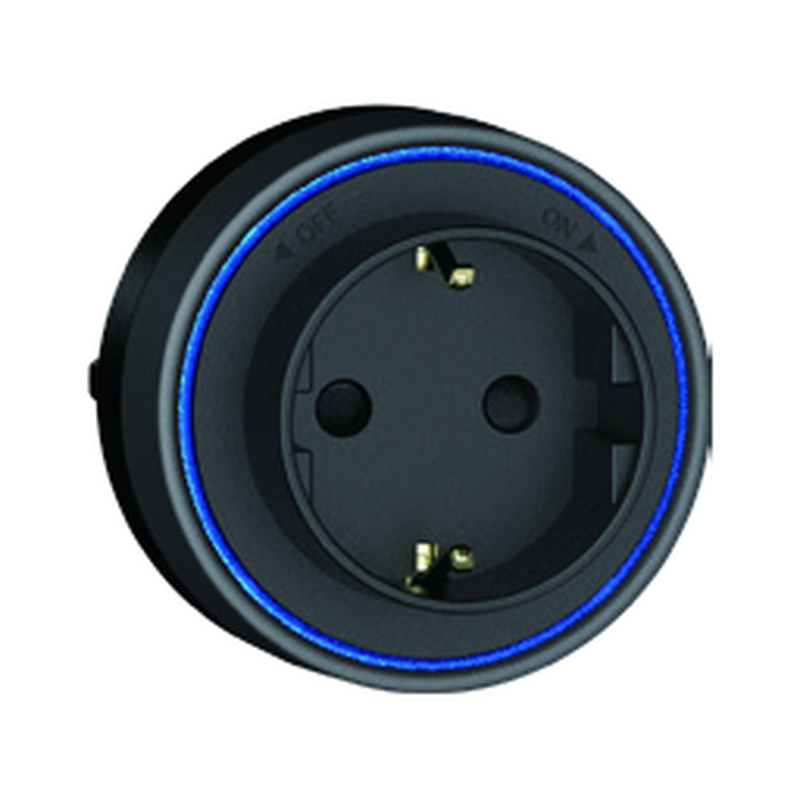

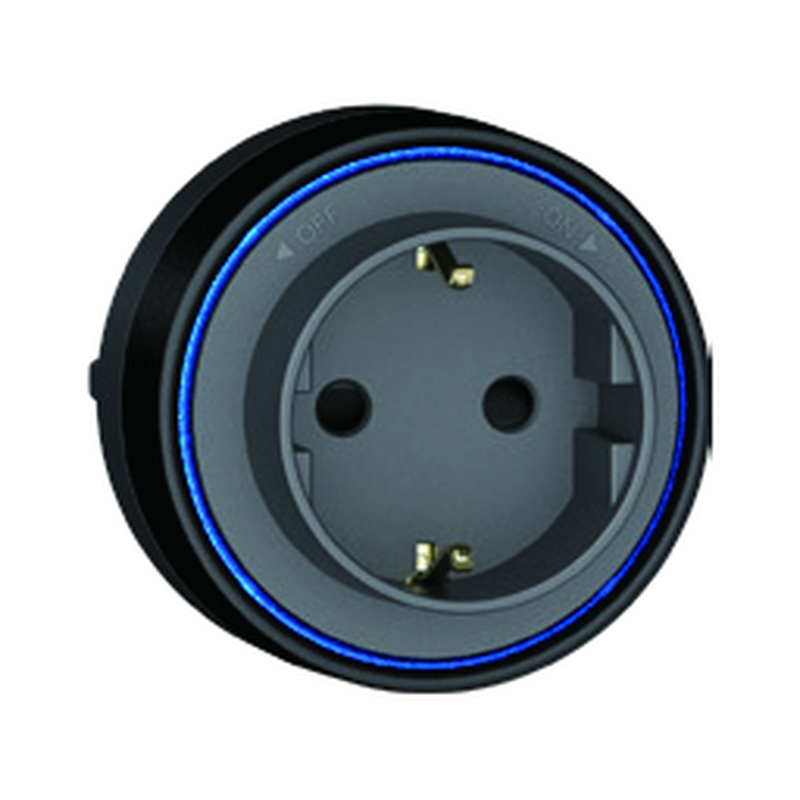

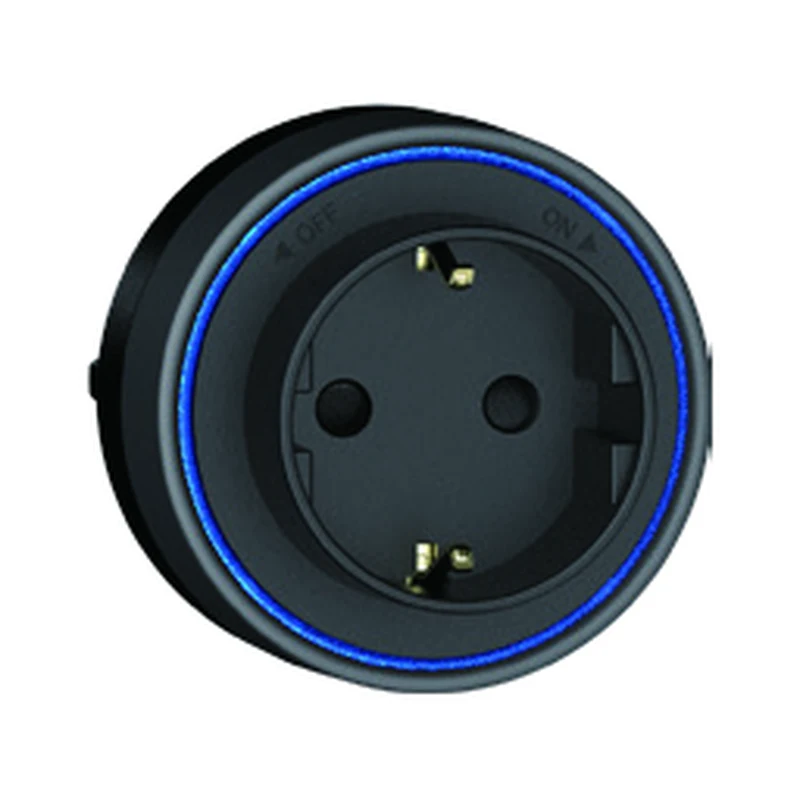

German Socket

  ED1 German socket black ED1 German socket grey
Model ED1M1001 ED1M1008
Color Black Grey
Operation voltage AC 250V~
Maximum electric current 16A
Protection degree IP20

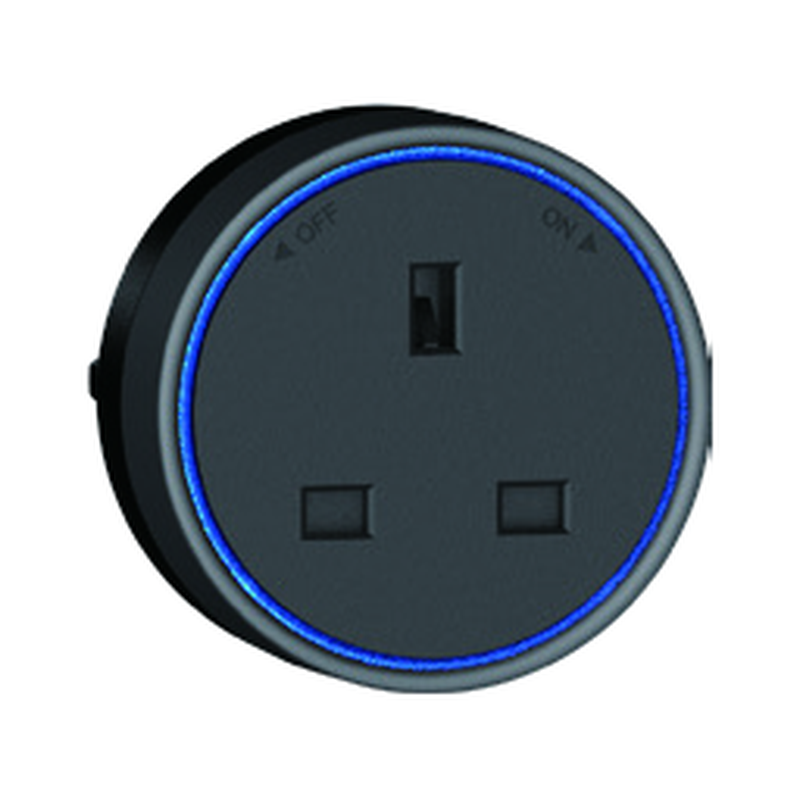

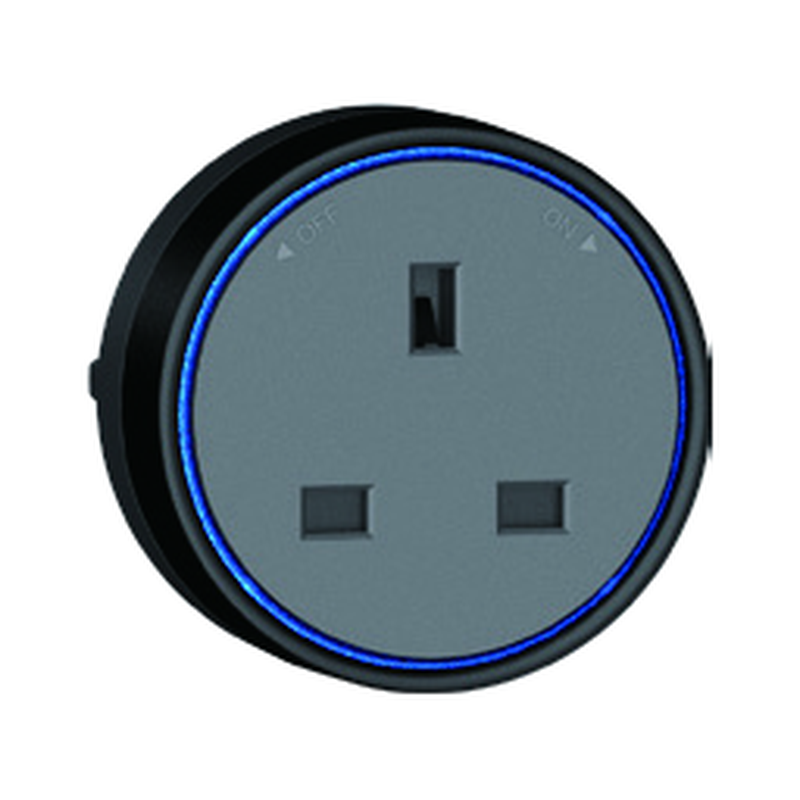

British Socket

  ED1 British socket black ED1 British socket grey
Model ED1M1101 ED1M1102
Color Black Grey
Operation voltage AC 250V~
Maximum electric current 13A
Protection degree IP20

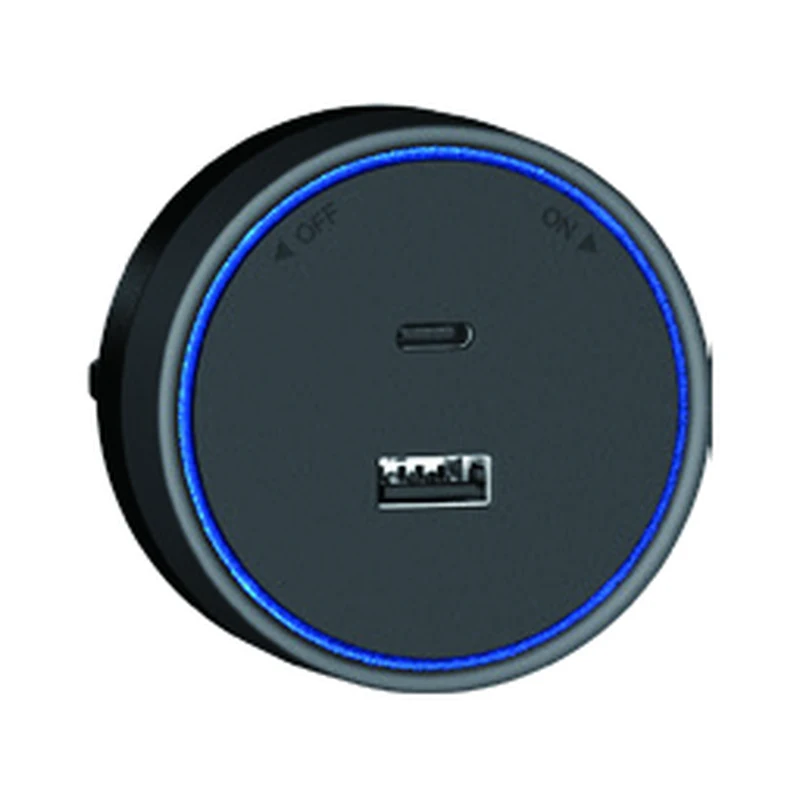

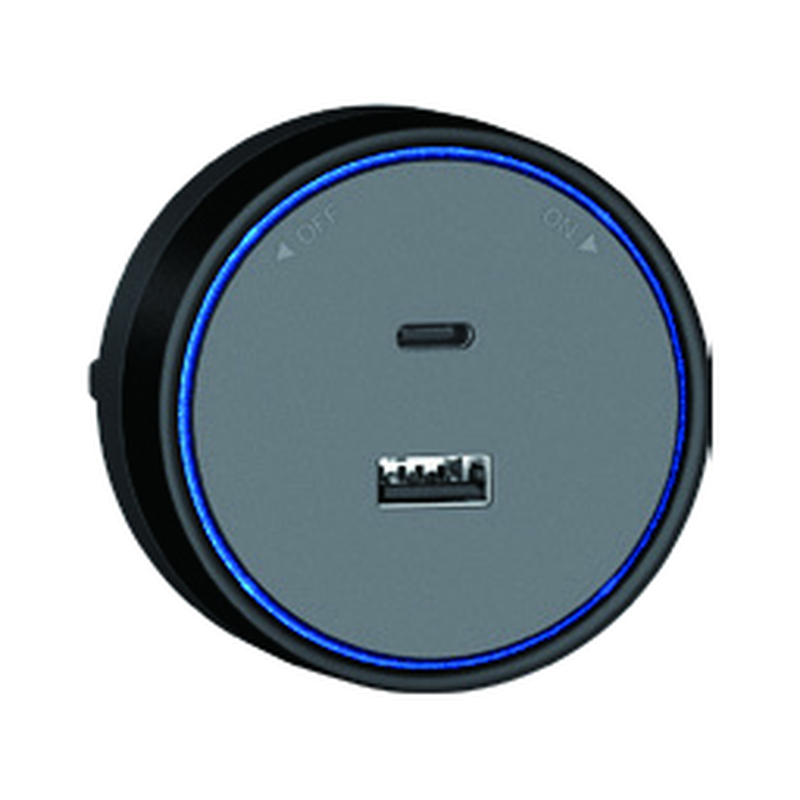

(A+C) USB Charger

  ED1 A+C USB charger black ED1 A+C USB charger grey
Model ED1M1301 ED1M1302
Color Black Grey
Operation voltage AC 250V~
Output power DC5V-3.4A, DC9V-2.1A, DC12V-1.5A
Protection degree IP20
Dimensions

Dimensions

Dimensions (mm)

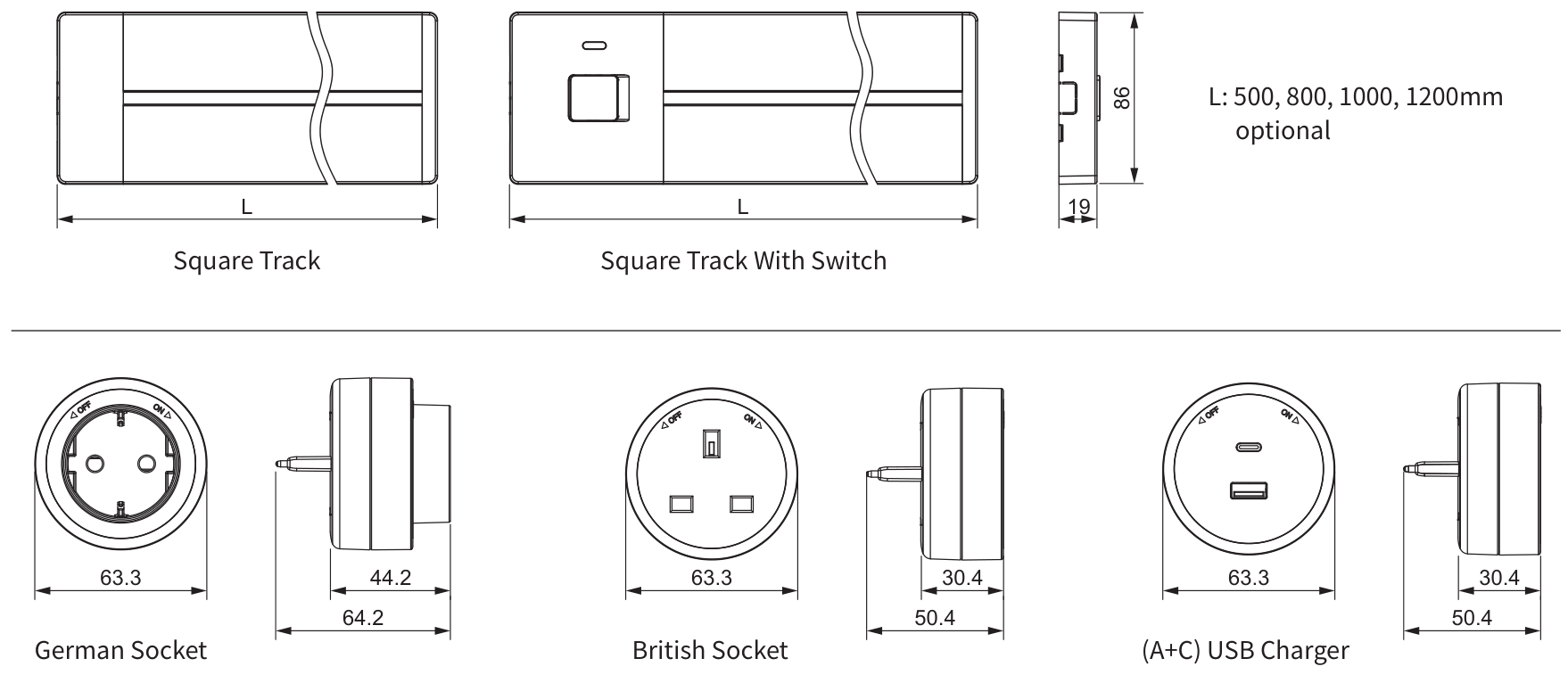

ED1 series power track socket dimension drawings

Track length L optional: 500 / 800 / 1000 / 1200mm. Track section about 86 × 19mm. German socket about Ø63.3mm, depth 44.2 / 64.2mm; British socket about Ø63.3mm, depth 30.4 / 50.4mm; (A+C) USB charger about Ø63.3mm, depth 30.4 / 50.4mm.
