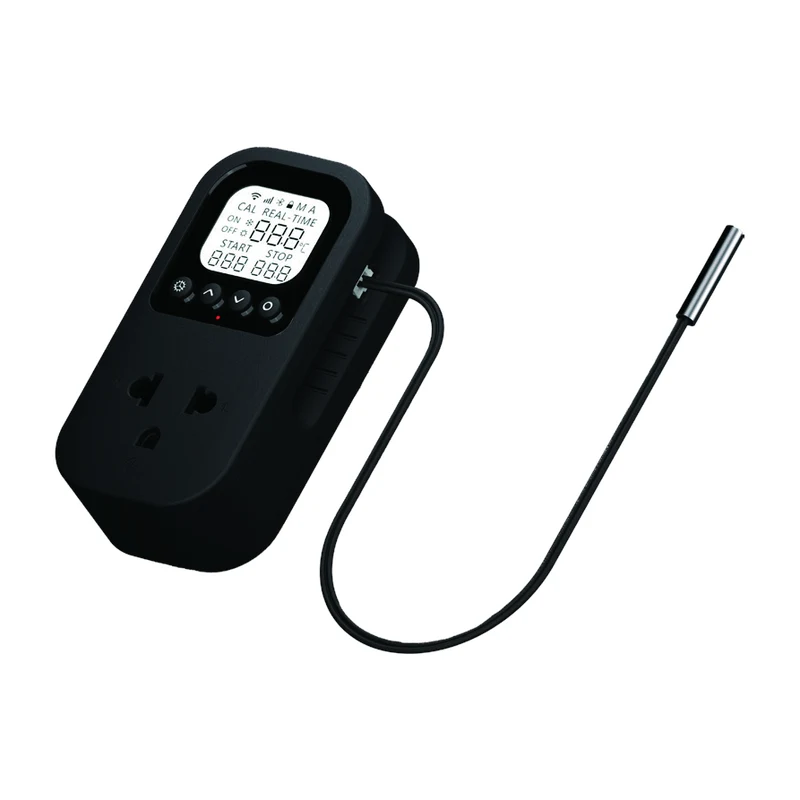

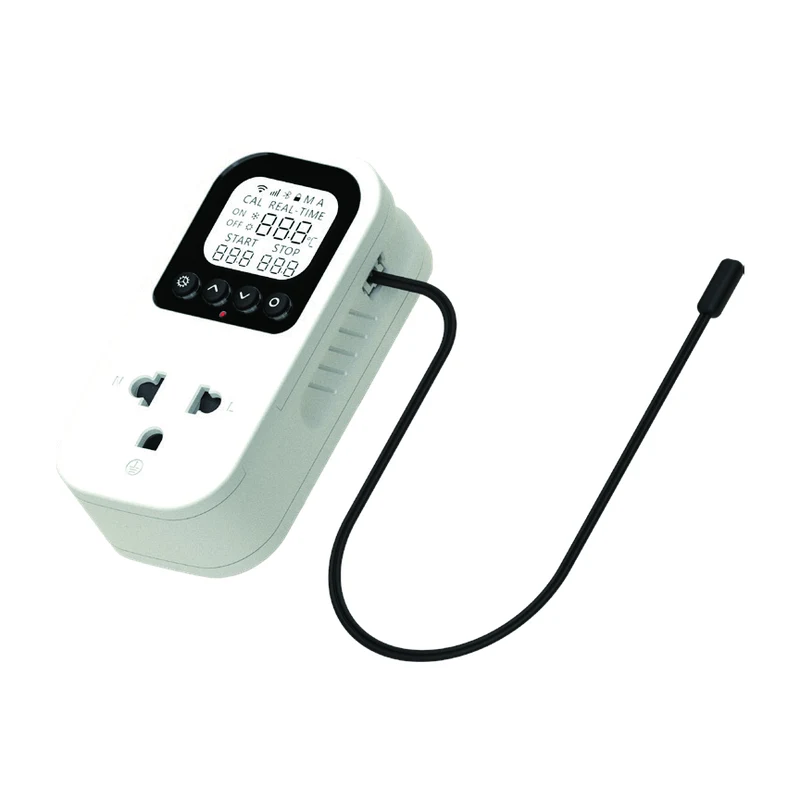

ES3W Temperature-Controlled Socket | Wi-Fi Temp Automation

Adopting a modern minimalist design language, it discreetly blends into any interior decor. Its compact structure ensures it never blocks adjacent outlets, while brass contact sleeves guarantee stable and reliable power delivery. With one-touch pairing and a three-step network setup, even complete beginners can get it up and running effortlessly.

This IoT smart temperature-control socket is not just a bridge for electricity — it is the intelligent steward of your home’s energy efficiency and comfort. Integrating remote control, scheduled management, and precise temperature-based automation, it makes every use of power smart, efficient, and truly tailored to your needs.

Full-Range Remote Control via Mobile App

• No matter where you are, you can monitor device status in real time through the mobile app.
• Turn devices on or off remotely with a single tap — forgetting to switch off appliances when leaving home is now a thing of the past.
• Supports multi-device grouping management, allowing you to easily create personalized smart scenes.

Intelligent Temperature Control — Automatically Maintains Your Comfort Zone

• Adaptive temperature adjustment: Paired with a high-precision temperature sensor to monitor various environmental temperatures in real time.
• Temperature-based switching logic: Automatically controls circuit on/off within set time periods based on predefined temperature thresholds.

Example Scenarios

• Winter nights: Automatically turns on heating devices when room temperature falls below 18℃, and turns them off when it exceeds 22℃.
• Summer days: Automatically activates the fan when indoor temperature rises above 28℃ to maintain airflow.
• Device protection: Continuously monitors appliance temperature, automatically cuts off power and sends alerts in case of abnormal overheating.

ES3W series is ordered by plug standard, color, communication option and temperature probe type.

• ES3W — Series code (Temperature-Controlled Socket)

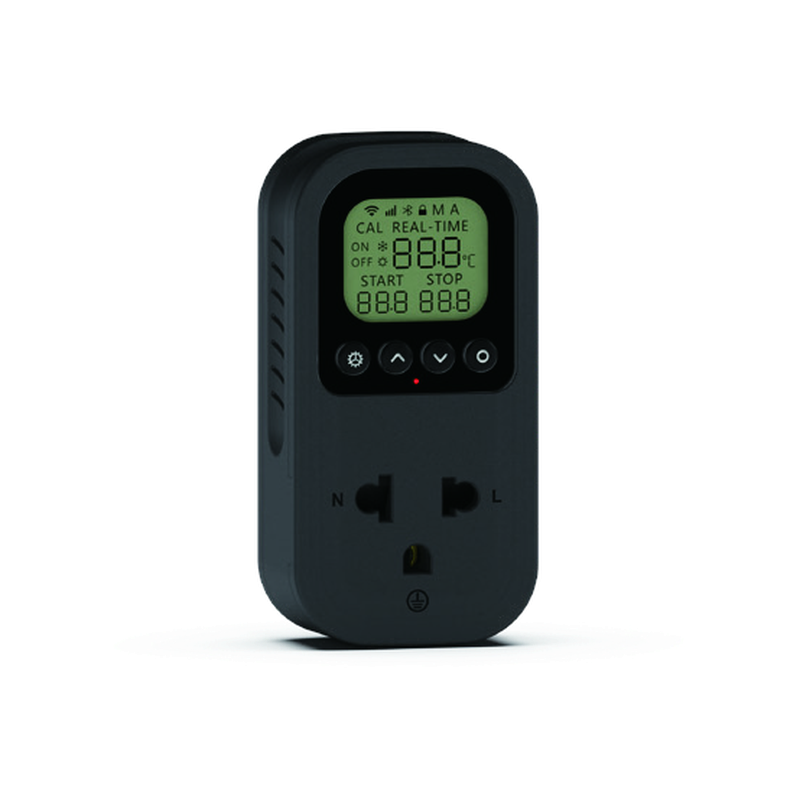

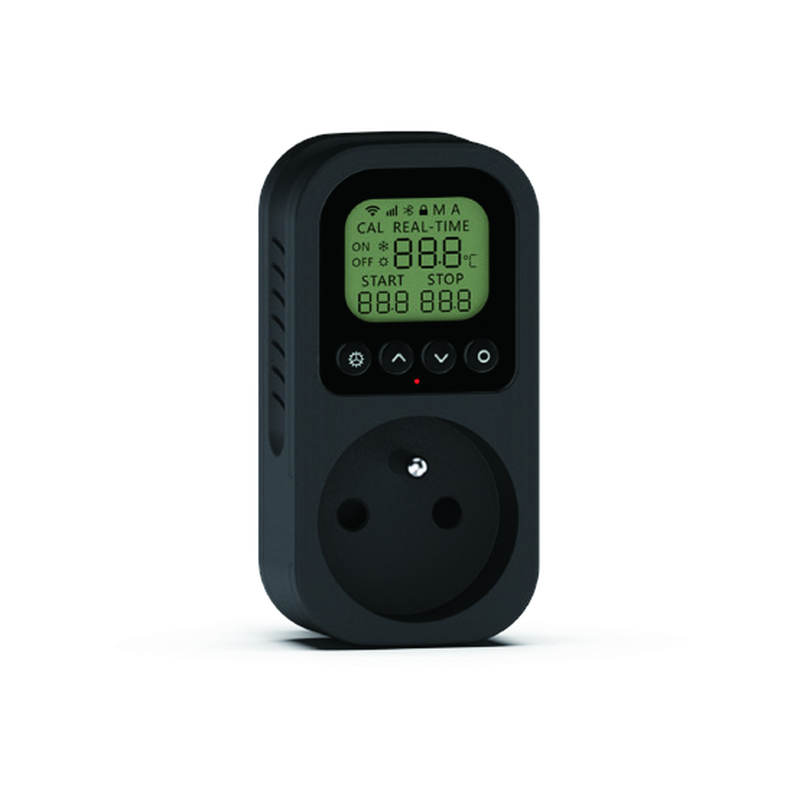

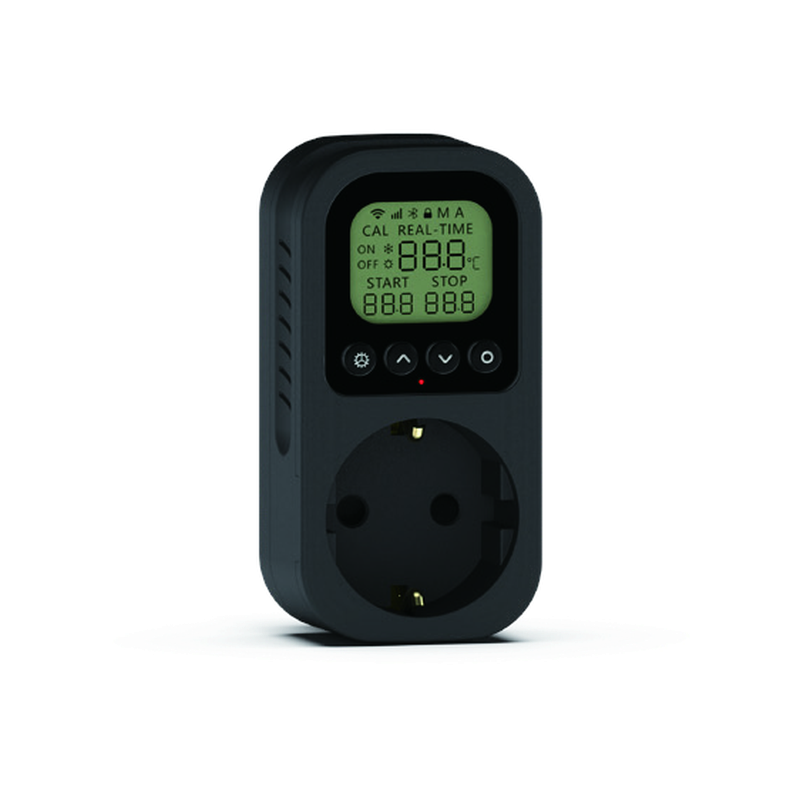

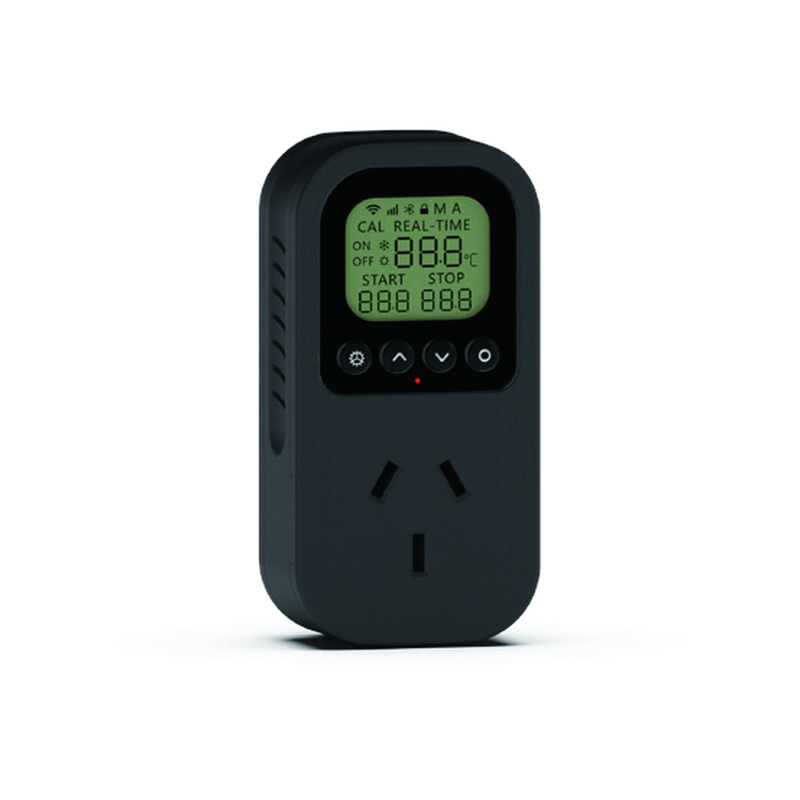

• Plug standard: Australia · South America · Germany · France
• Color: Black · White
• Communication: Without Wi-Fi · Within Wi-Fi (2.4GHz)
• Probe models:

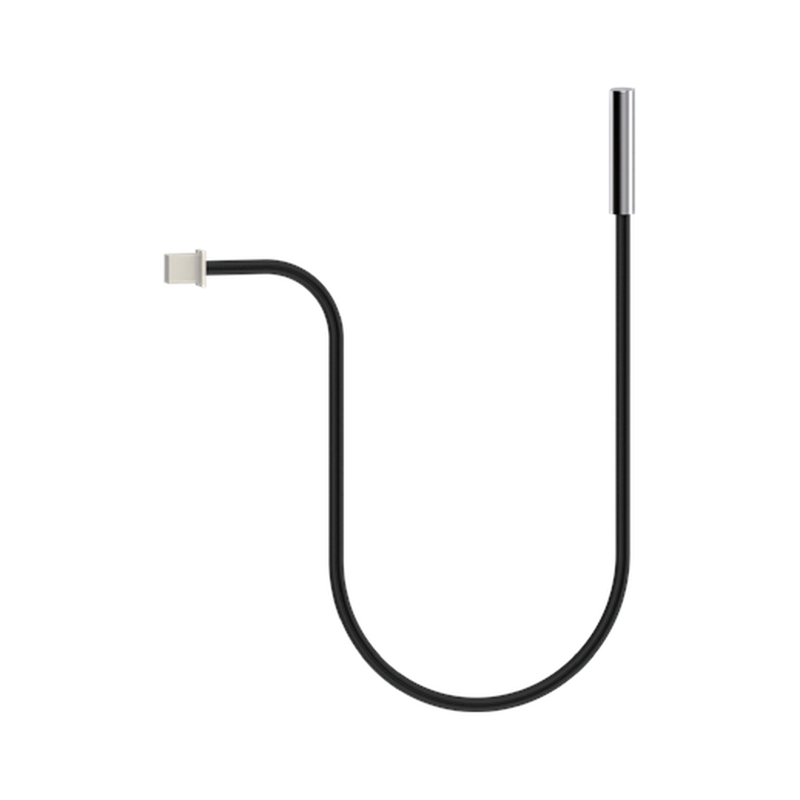

  • ES3W10001 — Air Temperature Probe (Air, -10℃ ~ +120℃)

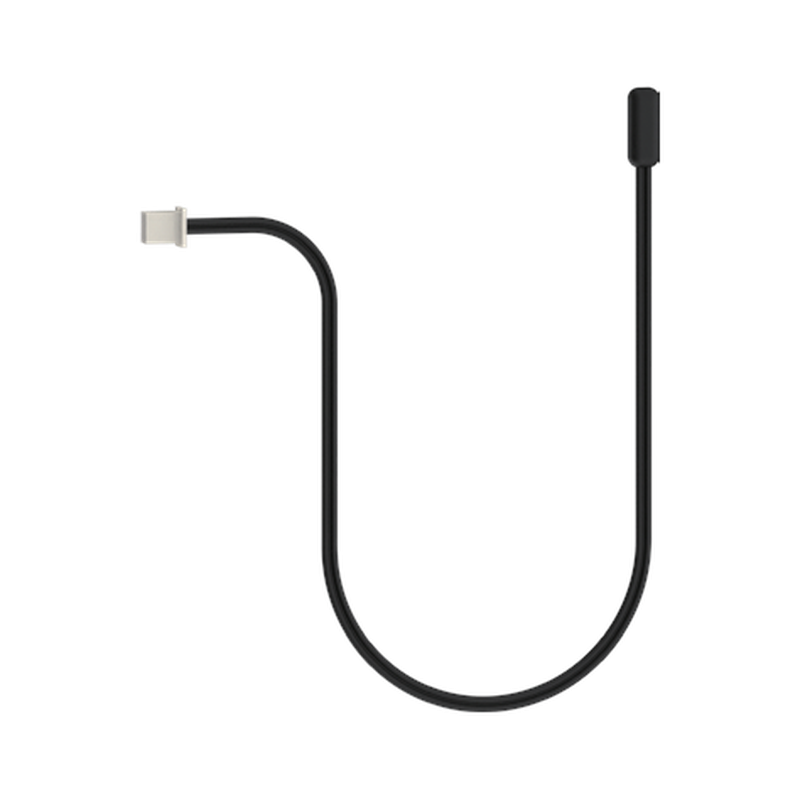

  • ES3W10002 — Waterproof Probe (Liquid, -10℃ ~ +85℃)

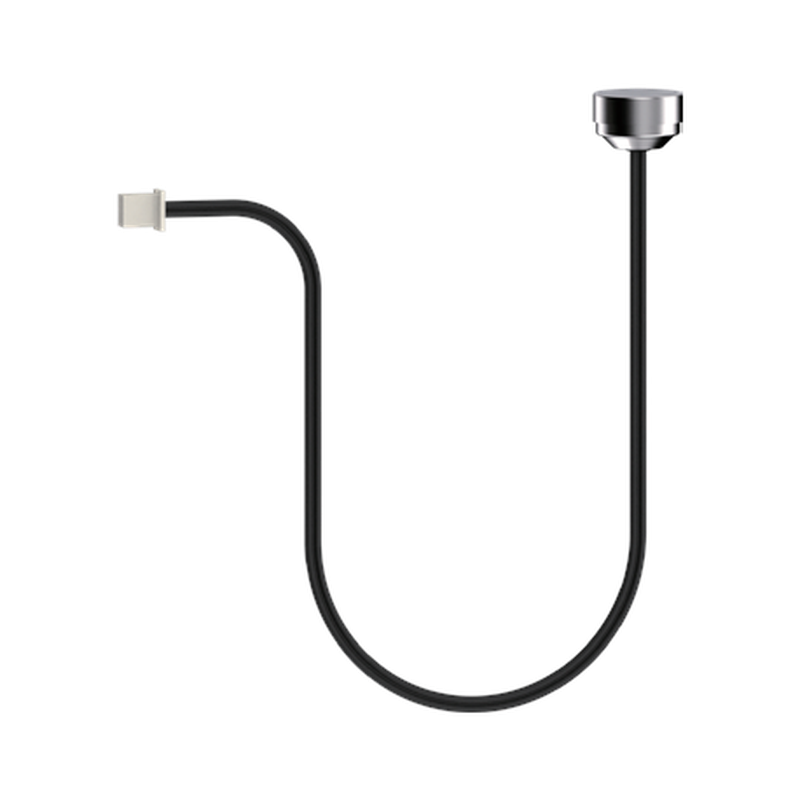

  • ES3W10003 — Magnetic Probe (Magnetically attractable metal, -10℃ ~ +105℃)
• Probe cable length: 2 meters

Socket Technical Data

Applicable countries	Australia	South America	Germany	France
Operation voltage	AC 250V~
Max. power	2500W		4000W
Maximum electric current	10A		16A
Protection degree	IP20
Color	Black, White
Operating temperature	-5℃ ~ +40℃
Communication technology	Without Wi-Fi; Within Wi-Fi (2.4GHz)
Timer function	Without Wi-Fi: no; Within Wi-Fi: yes

Temperature Probe Selection

	Air Temperature Probe	Waterproof Probe	Magnetic Probe
Model	ES3W10001	ES3W10002	ES3W10003
Temperature sensing material	Air	Liquid	Magnetically attractable metal
Operating temperature	-10℃ ~ +120℃	-10℃ ~ +85℃	-10℃ ~ +105℃
Cable length	2 meters

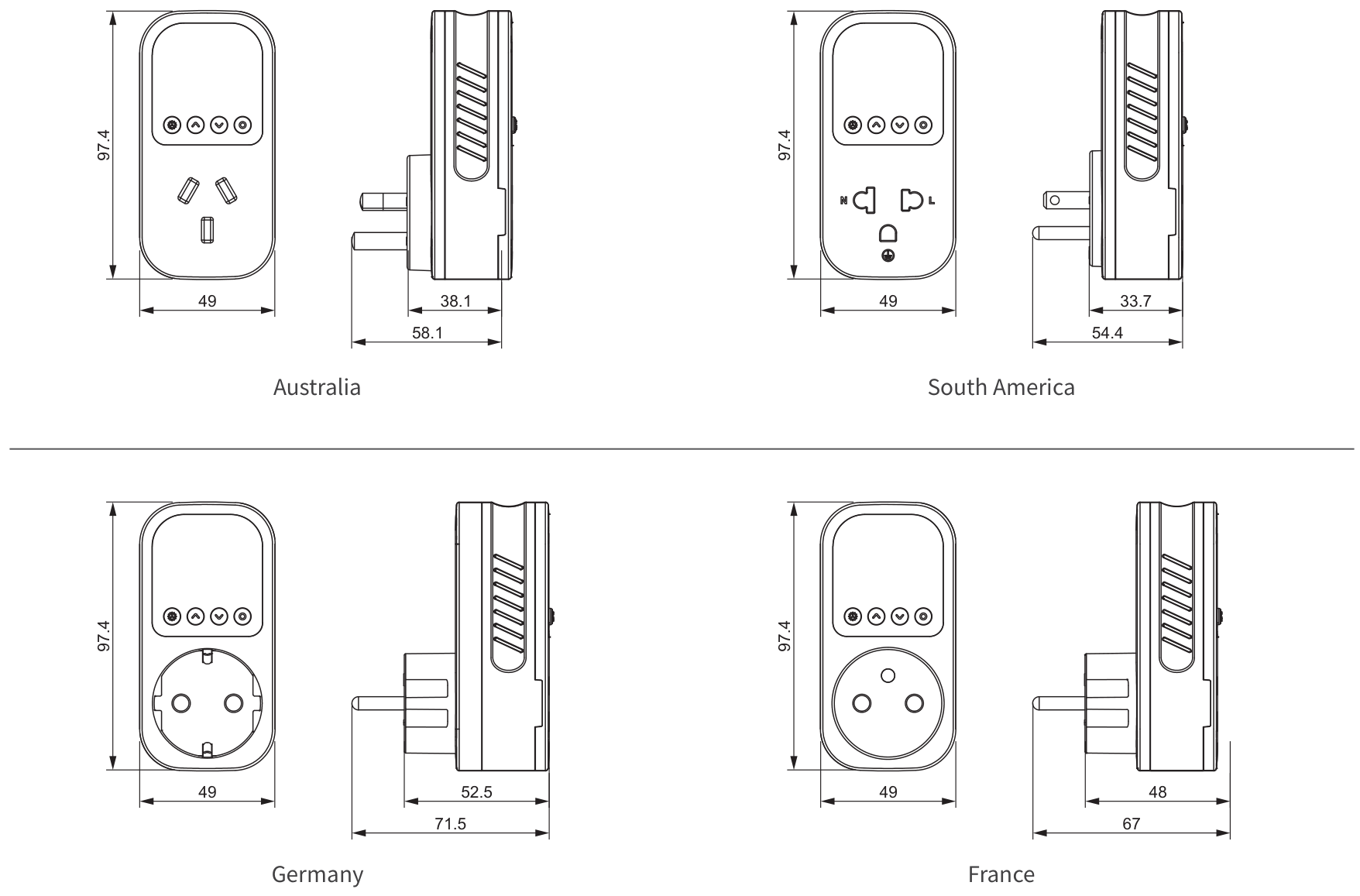

Dimensions (mm)

Overall height about 97.4mm; body width about 49mm for all plug standards. Plug depth varies by standard: Australia about 58.1mm, South America about 54.4mm, Germany about 71.5mm, France about 67mm.
