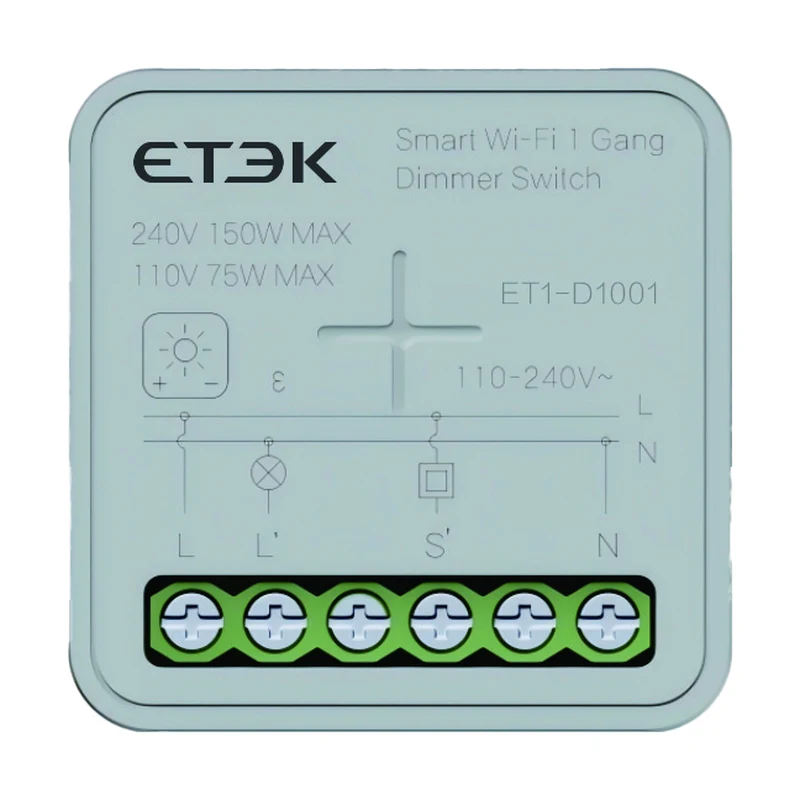

ET1-D1001 smart Wi-Fi 1 gang dimmer switch module white background

ET1 Smart Switch Module | Wi-Fi / Zigbee

ET1 compact smart switch module for concealed 86-box installation. Wi-Fi or Zigbee models with Tuya/Smart Life remote control, timer, scenes and voice. Covers dimmer, 1/2 gang, curtain, garage door and energy-monitoring switches. 110–240V~, 40×40×18mm, IP20.

● Product type: Smart Switch Module
● Series: ET1
● Functions: Switch / Dimmer switch (1 gang, 2 gang, curtain, garage door, energy monitoring options)
● Communication: Wi-Fi 2.4GHz or Zigbee 3.0
● App: Tuya Smart / Smart Life
● Standard: EN IEC 62368-1:2020+A11:2020
● Input voltage: 110–240V~
● Frequency: 50/60Hz

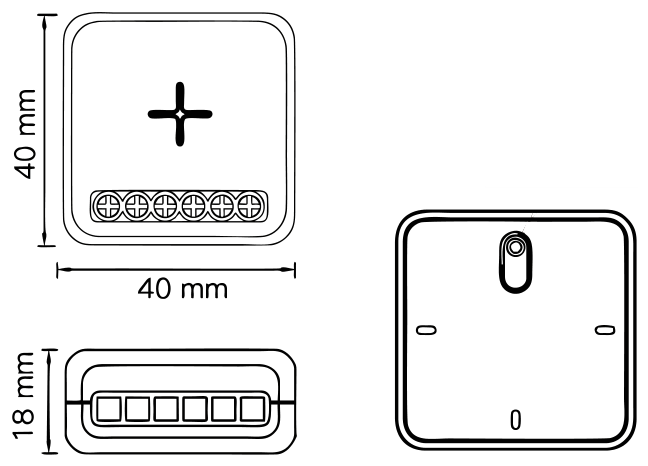

● Product size: 40 × 40 × 18mm
● IP rating: IP20
● Mounting: Concealed installation (86 wall box / junction box)
● Operating temperature: -10℃ to 40℃

PDF

Product Profile

ET1 Series Smart Switch Module integrates remote control, timer functions, scene automation, and voice control in one compact design. Selected models also support energy monitoring. It upgrades conventional electrical circuits with smarter, safer, and more efficient control, making it ideal for smart homes, offices, hospitality projects, and IoT applications.

Key Features

Compatible with Tuya and Smart Life App
Supports remote control via smartphone
Supports timer and countdown functions
Supports scene automation
Supports third-party voice control platforms
Supports 2.4GHz Wi-Fi (Wi-Fi models)
Supports Zigbee 3.0 (Zigbee models)
Supports local manual control
Energy monitoring available on selected models
Compact size for easy concealed installation

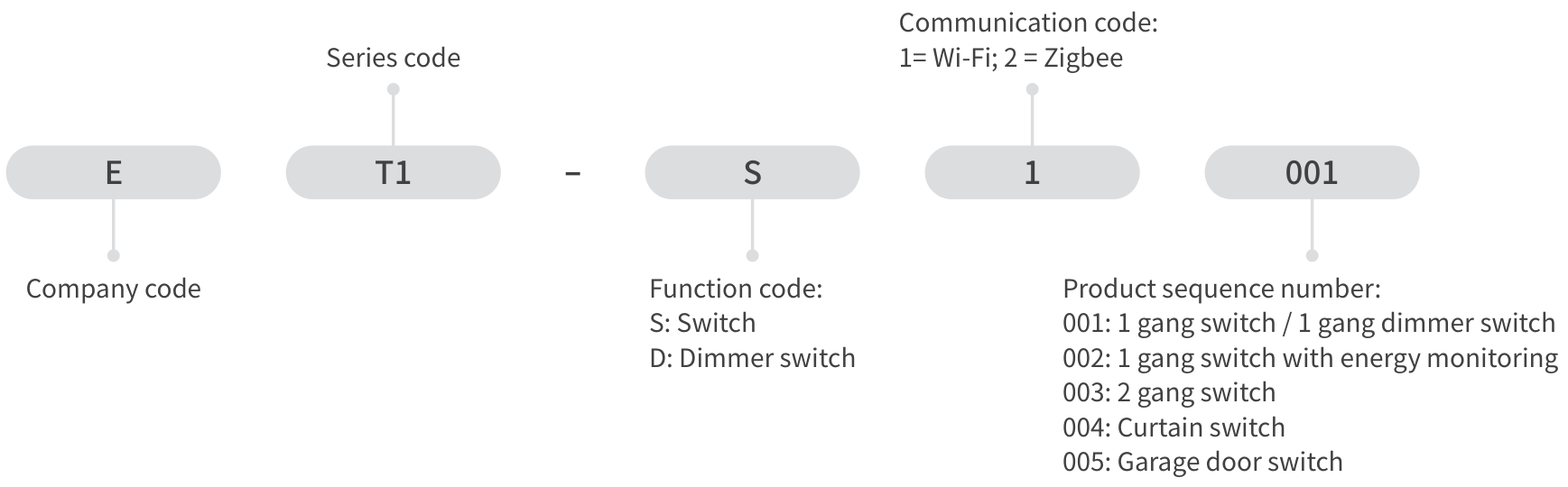

Model Preparation Meaning

ET1 series instruction of type code diagram

E — Company code
T1 — Series code
Function code: S = Switch; D = Dimmer switch
Communication code: 1 = Wi-Fi; 2 = Zigbee
Product sequence number:
001 = 1 gang switch / 1 gang dimmer switch;
002 = 1 gang switch with energy monitoring;
003 = 2 gang switch;
004 = Curtain switch;
005 = Garage door switch

Technical Data

Standard	EN IEC 62368-1:2020+A11:2020
Input voltage	110–240V~
Frequency	50/60Hz
Operating temperature	-10℃ to 40℃
Storage temperature	-20℃ to 70℃
Max. housing temperature	80℃
IP rating	IP20
Product size	40 × 40 × 18mm
Max. RF output power	≤ +20 dBm (EIRP)
Operating band (Wi-Fi models)	2.412–2.484 GHz
Operating band (Zigbee models)	2.405–2.480 GHz
Communication protocol	Wi-Fi 2.4GHz IEEE 802.11 b/g/n; Zigbee 3.0
Method of mounting	Concealed installation (86 wall box / junction box)

Product selection

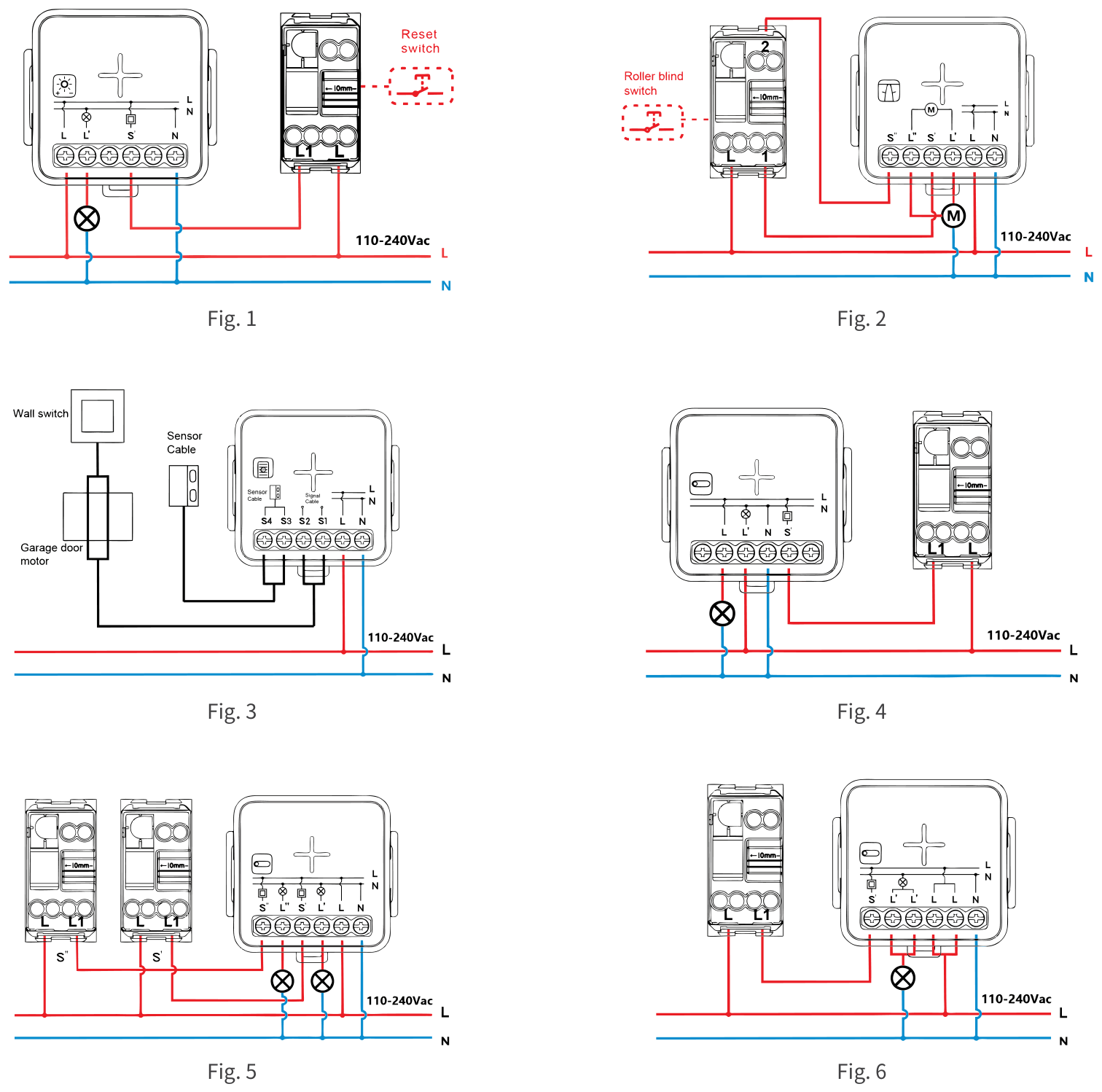

Model	Description	Rated current	Max. load	Wiring
ET1-D1001	Smart Wi-Fi 1 gang dimmer switch	0.68A	150W	Fig. 1
ET1-D2001	Smart Zigbee 1 gang dimmer switch	0.68A	150W	Fig. 1
ET1-S1004	Smart Wi-Fi curtain switch	2.5A	600W	Fig. 2
ET1-S2004	Smart Zigbee curtain switch			Fig. 2
ET1-S1005	Smart Wi-Fi garage door switch			Fig. 3
ET1-S2005	Smart Zigbee garage door switch			Fig. 3
ET1-S1001	Smart Wi-Fi 1 gang switch	10A	2400W	Fig. 4
ET1-S2001	Smart Zigbee 1 gang switch			Fig. 4
ET1-S1003	Smart Wi-Fi 2 gang switch			Fig. 5
ET1-S2003	Smart Zigbee 2 gang switch			Fig. 5
ET1-S1002	Smart Wi-Fi 1 gang switch with energy monitoring	16A	3840W	Fig. 6
ET1-S2002	Smart Zigbee 1 gang switch with energy monitoring	16A	3840W	Fig. 6
