EKR0 RS485 Smart RCBO | Leakage Protection & Remote Control
EKR0 RS485 is a smart RCBO that combines traditional overload, short-circuit and leakage protection with modern smart control and electricity metering. Type code communication method 5 provides RS485 communication for remote open/close, timing schedules and real-time electrical parameter monitoring. Automatic and manual operation modes are available, with mechanical padlock for onsite safety. Rated 1P+N / 3P / 3P+N, 16–63A, residual current types A/AC, Icn 6kA/10kA, trip curves B/C/D. Suitable for smart building power management, industrial power monitoring and energy efficiency optimization.
● Product type: Smart RCBO (Residual Current Circuit Breaker with Overcurrent protection)
● Series / variant: EKR0 RS485 (type code communication method 5 = RS485) — DRAFT
● Functions: Overload protection, short-circuit protection, leakage protection, over-temperature protection, multiple timing, remote control, electricity metering
● Operation modes: Automatic mode (remote control via RS485); Manual mode (local operation only)
● No. of poles: 1P+N, 3P, 3P+N (with switched neutral)
● Rated currents (In): 16, 25, 32, 40, 50, 63A
● Rated sensitivity currents (IΔn): 10, 30, 100, 300mA
● Residual current type: A, AC
● Rated voltage (Ue): 230/240V (1P+N), 400/415V (3P, 3P+N)
● Rated short-circuit capacity (Icn): 6kA, 10kA
● Trip curve: B, C, D
● Standard: IEC/EN 61009-1
● Installation: Mounting on 35mm DIN rail; incoming method from top
● Protection degree: IP20

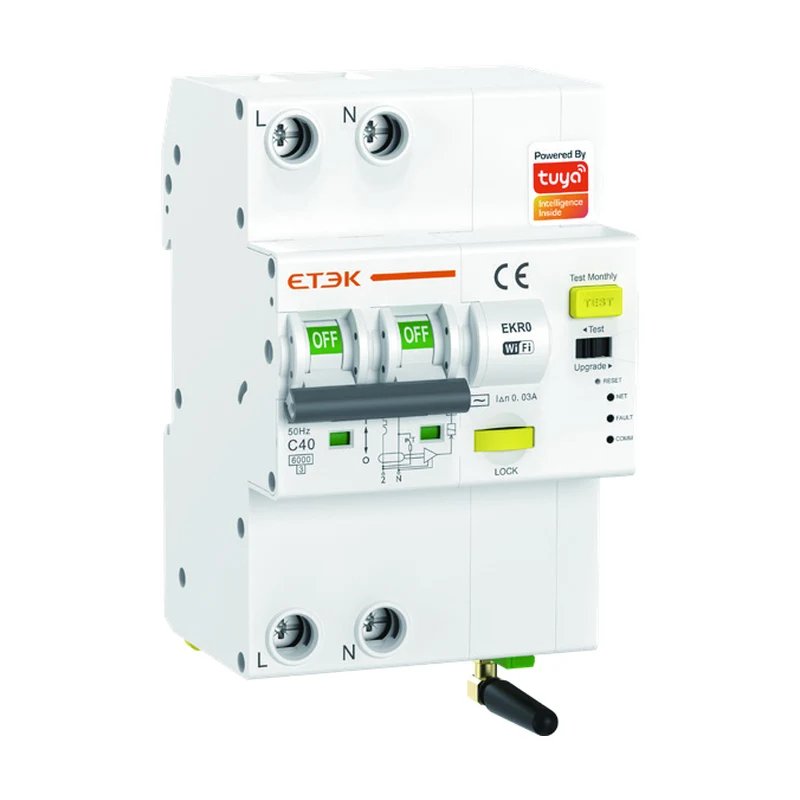

● Artwork note: PDF provides no dedicated RS485-labeled product photo; hero images are WiFi-branded
Product Profile
Product Profile
DRAFT package — pending confirmation. PDF type code lists communication method 5 = RS485, but all product appearance photos are printed as EKR0 WiFi with Tuya badge and antenna. Do not treat gallery photos as dedicated RS485 hardware photos until confirmed.
EKR0 Smart RCBO combines the functions of traditional circuit breakers with modern electronic technology to provide overload, short circuit, and leakage protection for circuits rated at 63A. It also supports remote control through the RS485 communication platform, allowing monitoring and adjustment of various electrical parameters. The EKR0 Smart RCBO has been widely used in smart building power management, industrial power monitoring, and energy efficiency optimization.
This draft page is for the RS485-only communication variant of EKR0 (type code communication method: 5).
|
Traditional Protection
|
Smart Capabilities
|
|
Advanced Functions
|
Automatic / Manual Mode
|
|
Mechanical Padlock When the mechanical lock is pulled out, the switch enters a locked state, preventing the switch from being turned on. To restore the device, press down the mechanical lock. |
|

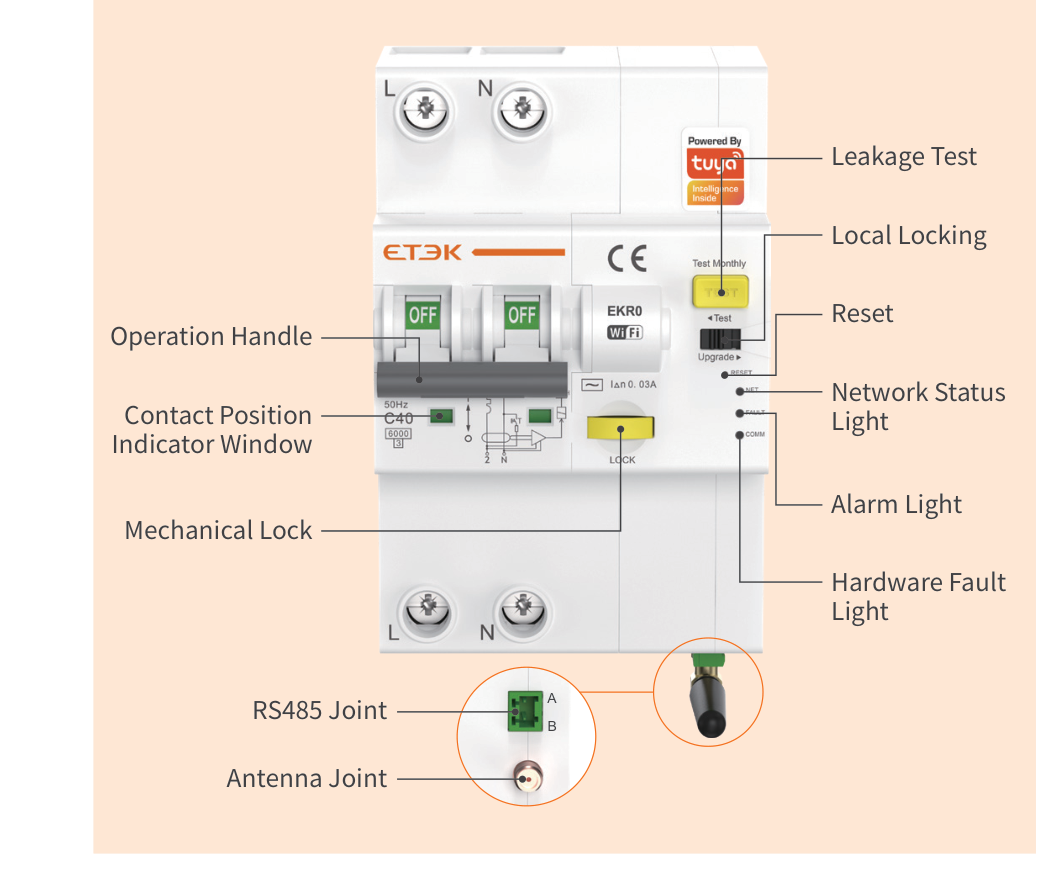

Structure labels: Operation Handle, Contact Position Indicator Window, Mechanical Lock, Leakage Test, Local Locking, Reset, Network Status Light, Alarm Light, Hardware Fault Light, RS485 Joint, Antenna Joint.

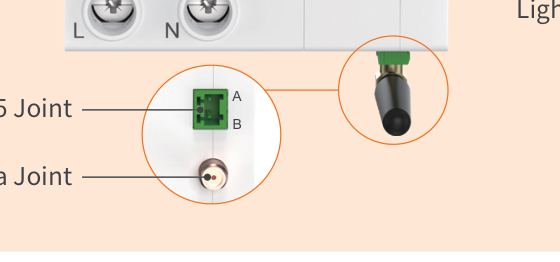

Interface detail: RS485 Joint (A / B) and Antenna Joint. (PDF structure art still shows antenna joint on the WiFi-branded body.)
Model Preparation Meaning
Model Preparation Meaning

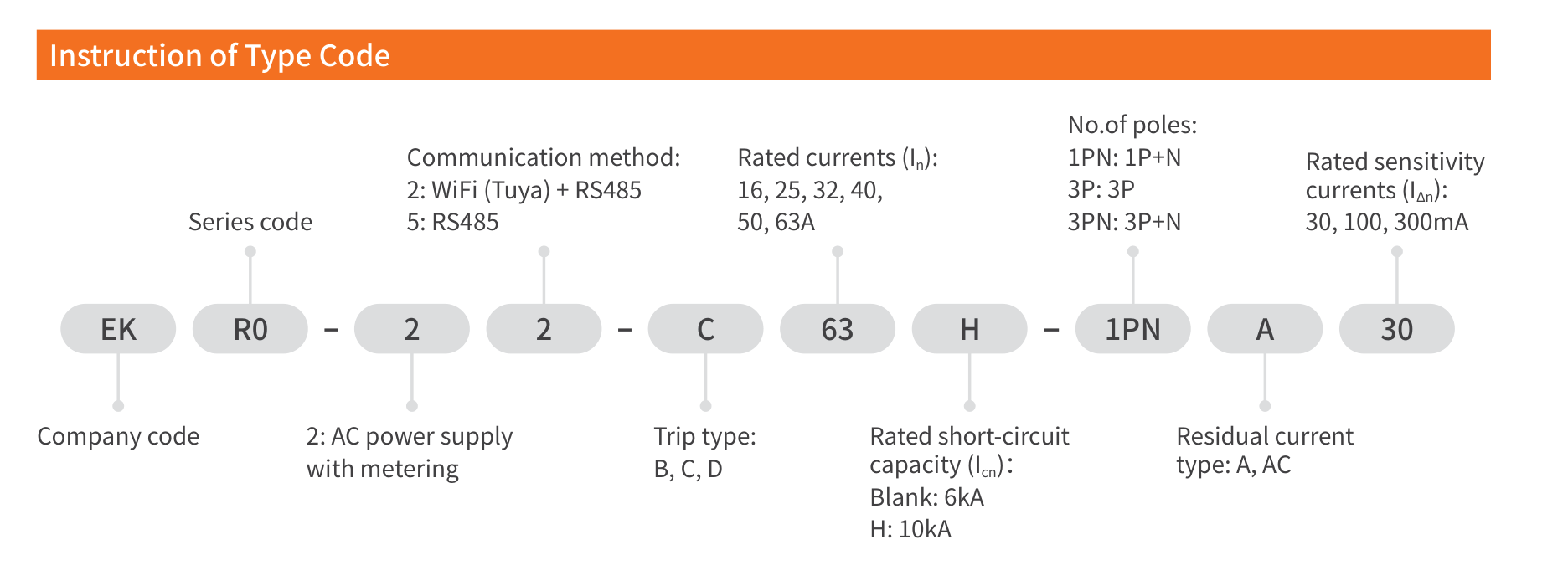

Example type code structure: EK R0 - 5 2 - C 63 H - 1PN A 30 (communication method position set to 5 for this draft variant)
- EK — Company code
- R0 — Series code
- 5 — Communication method (this draft product: 5 = RS485)
- 2: WiFi (Tuya) + RS485
- 5: RS485
- 2 — AC power supply with metering
- C — Trip type: B, C, D
- 63 — Rated currents (In): 16, 25, 32, 40, 50, 63A
- H — Rated short-circuit capacity (Icn): Blank = 6kA, H = 10kA
- 1PN — No. of poles: 1PN = 1P+N, 3P = 3P, 3PN = 3P+N
- A — Residual current type: A, AC
- 30 — Rated sensitivity currents (IΔn): 30, 100, 300mA
Technical Data
Technical Data
| Standard | IEC/EN 61009-1 |
|---|---|
| Residual current type | A, AC |
| No. of poles | 1P+N, 3P, 3P+N (with switched neutral) |
| Standby power consumption | < 5W |
| Status indicator | LED |
| Rated voltage (Ue) | 230/240V (1P+N), 400/415V (3P, 3P+N) |
| Rated frequency | 50/60Hz |
| Rated currents (In) | 16, 25, 32, 40, 50, 63A |
| Rated sensitivity currents (IΔn) | 10, 30, 100, 300mA |
| Residual current off-time under (IΔn) | ≤ 0.1s |
| Rated residual making and breaking capacity (IΔm) | 500A (In ≤ 50A), 10In (In > 50A) |
| Rated short-circuit capacity (Icn) | 6kA, 10kA |
| Energy limiting class | 3 |
| Rated impulse withstand voltage (Uimp) (1.2/50μs) | 4kV |
| Dielectric test voltage | 2kV (50/60Hz, 1 min.) |
| Trip curve | B: (3-5) x In, C: (5-10) x In, D: (10-20) x In |
| Trip time | ≤ 0.1s |
| Electrical life | 4000 Cycles |
| Mechanical life | 10000 Cycles |
| Communication method | RS485, Baud rate: 2400/4800/9600 (default) — type code 5 = RS485 |
| Operational safety | Mechanical padlock, ensure safety during onsite maintenance |
| Monitoring physical data | Real-time voltage, Real-time current, Real-time power, Temperature, Switch state, Device operating status |
| Function description | Overload protection, Short circuit protection, Leakage protection, Over-temperature protection, Multiple timing, Remote control, Electricity metering |
| Characteristic set up | Over/under voltage action time, Over/under voltage value, Overcurrent value, Voltage imbalance value, Over power value, Phase loss value, Overtemperature value |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +55℃ (Current capacity is significantly reduced at 70℃) |
| Storage temperature | -25℃ to +70℃ |
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
| Max. conductor cross-sections for cable | 25mm2 |
| Altitude | ≤2000m |
| Installation | Mounting on 35mm DIN rail |
| Incoming method | From top |
Dimensions
Dimensions

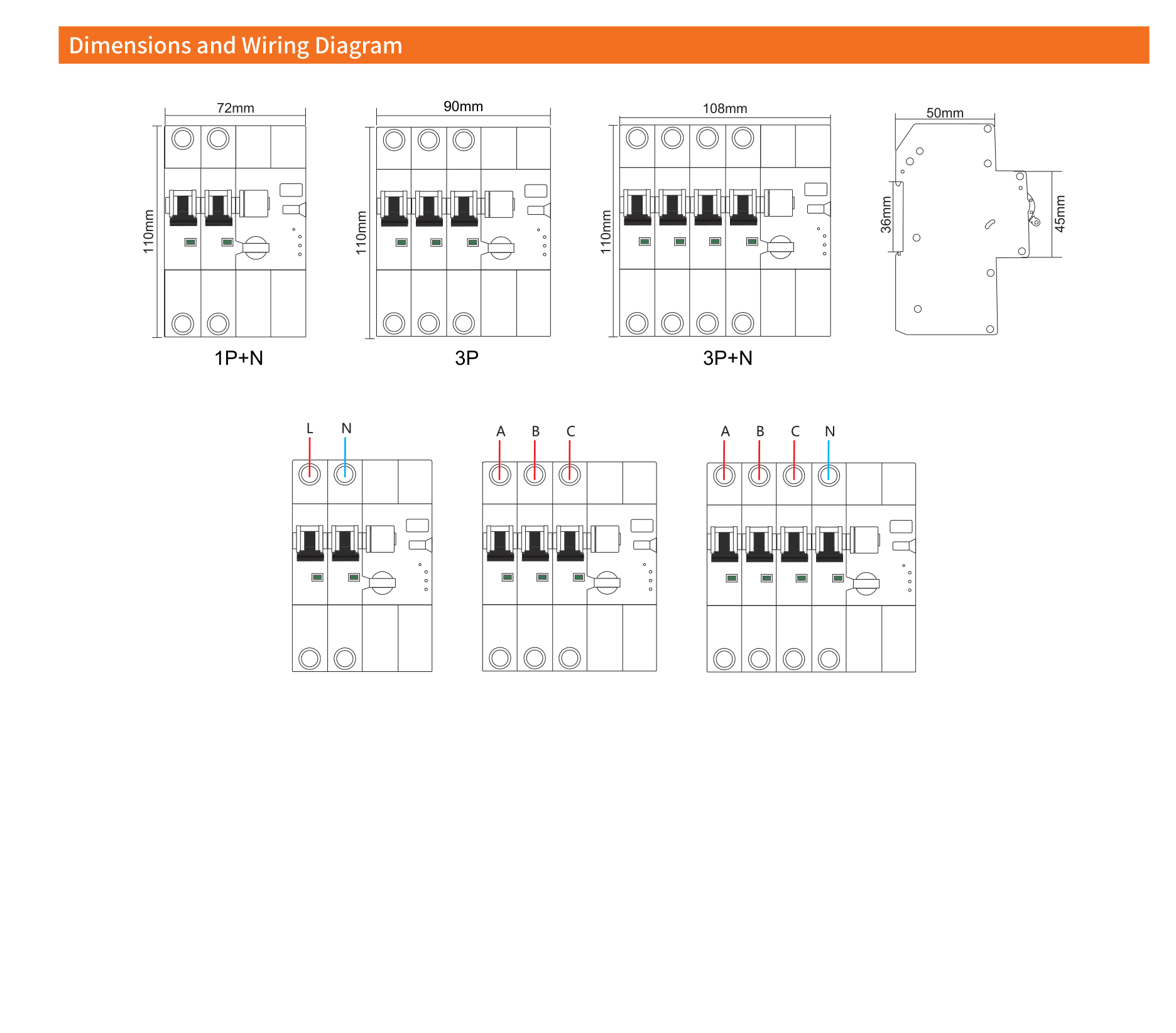

Dimension drawings cover front views for 1P+N / 3P / 3P+N and side view, including overall width values 72mm / 90mm / 108mm, height 110mm, depth 50mm, and side outline height marks 36mm / 45mm.
Wiring diagrams show terminal wiring for 1P+N (L / N), 3P (A / B / C) and 3P+N (A / B / C / N).
