EKR3L WiFi Smart RCBO | Leakage Protection & Tuya Remote
EKR3L WiFi is a smart RCBO that combines traditional overload, short-circuit and leakage protection with modern smart control. Through the Tuya APP, users can remotely open/close the breaker, set timing schedules and monitor real-time switch status. Automatic and manual operation modes are available, with optional automatic reclosing to improve power-supply reliability. Rated 1P+N, 10–63A, 230/240V, Icn 6kA/10kA, residual current types A/AC, trip curves B/C. Suitable for smart homes, commercial buildings, industrial facilities and public lighting control.
● Product type: Smart RCBO (Residual Current Circuit Breaker with Overcurrent protection)
● Series / variant: EKR3L WiFi (Tuya)
● Communication method code: 0 = WiFi (Tuya); optional 03 = WiFi (Tuya) + Recloser
● Functions: Overload, short-circuit and leakage protection; remote open/close and timing control; real-time switch status monitoring; optional automatic reclosing
● Operation modes: Automatic mode (remote control via Tuya APP); Manual mode (local operation only)
● No. of poles: 1P+N (with switched neutral)
● Rated currents (In): 10, 16, 25, 32, 40, 50, 63A
● Rated voltage (Ue): 230/240V
● Rated short-circuit capacity (Icn): 6kA / 10kA
● Rated sensitivity currents (IΔn): 10, 30, 100, 300mA
● Residual current type: A, AC
● Trip curve: B, C
● Installation: Mounting on 35mm DIN rail; incoming method from top
● Protection degree: IP20
Product Profile
Product Profile
EKR3L smart RCBO offers not only overload, short-circuit, and leakage protection like traditional circuit breakers, but also the ability to be remotely controlled and monitored through the Tuya APP. It also provides an automatic reclosing function to improve the reliability of the circuit power supply.
EKR3L Smart RCBO combines traditional RCBO protection features with modern smart home technology, providing users with enhanced safety, convenience, and control over their electrical systems. It is particularly useful for remote management of electrical circuits and can be integrated into broader smart homes or building automation systems.
This product page is for the WiFi (Tuya) communication variant of EKR3L (type code communication method: 0; optional recloser code: 03).

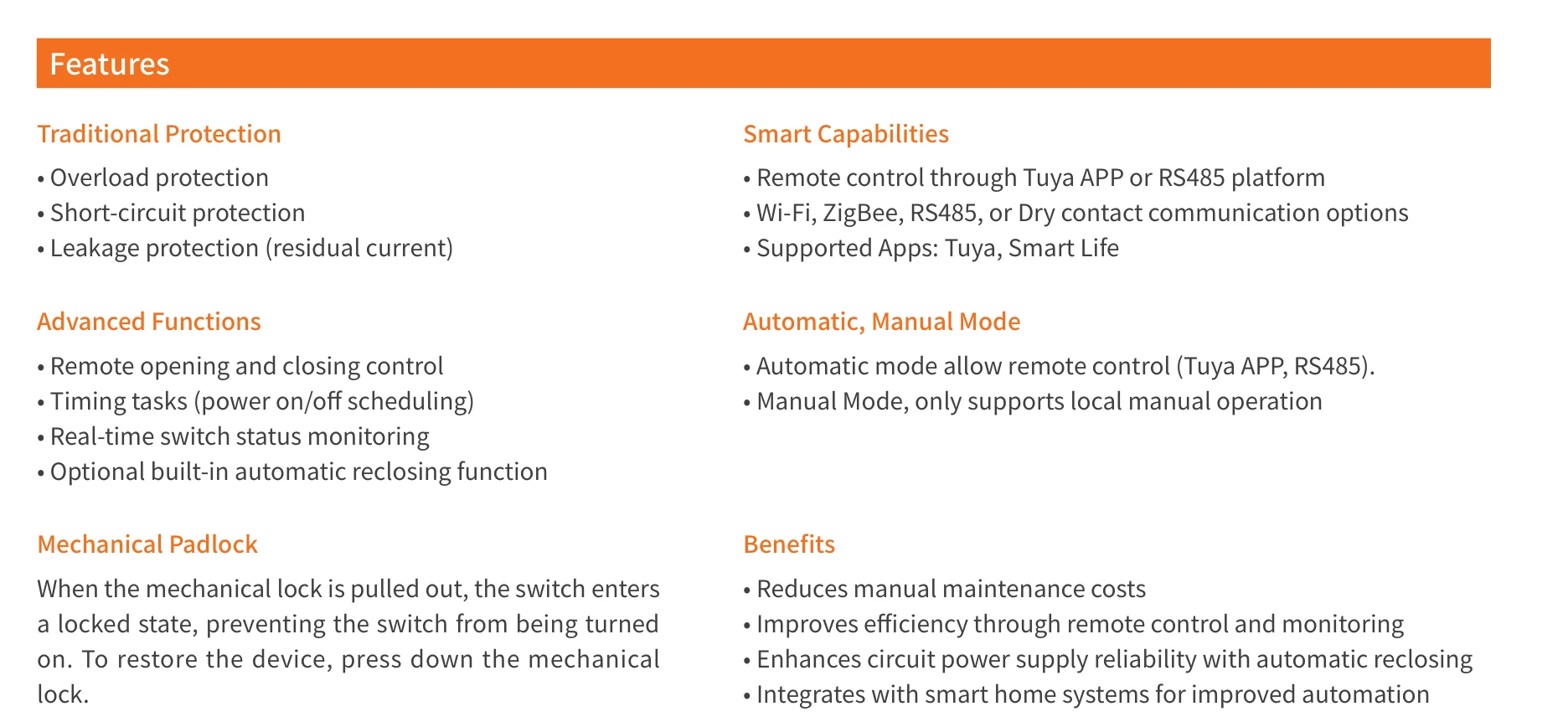

Traditional Protection
- Overload protection
- Short-circuit protection
- Leakage protection (residual current)
Advanced Functions
- Remote opening and closing control
- Timing tasks (power on/off scheduling)
- Real-time switch status monitoring
- Optional built-in automatic reclosing function
Communication
- WiFi (Tuya), 2.4GHz
- Supported Apps: Tuya, Smart Life
Automatic / Manual Mode
- Automatic mode allows remote control via Tuya APP
- Manual mode only supports local manual operation
Mechanical Padlock
When the mechanical lock is pulled out, the switch enters a locked state, preventing the switch from being turned on. To restore the device, press down the mechanical lock.
Benefits
- Reduces manual maintenance costs
- Improves efficiency through remote control and monitoring
- Enhances circuit power supply reliability with automatic reclosing
- Integrates with smart home systems for improved automation

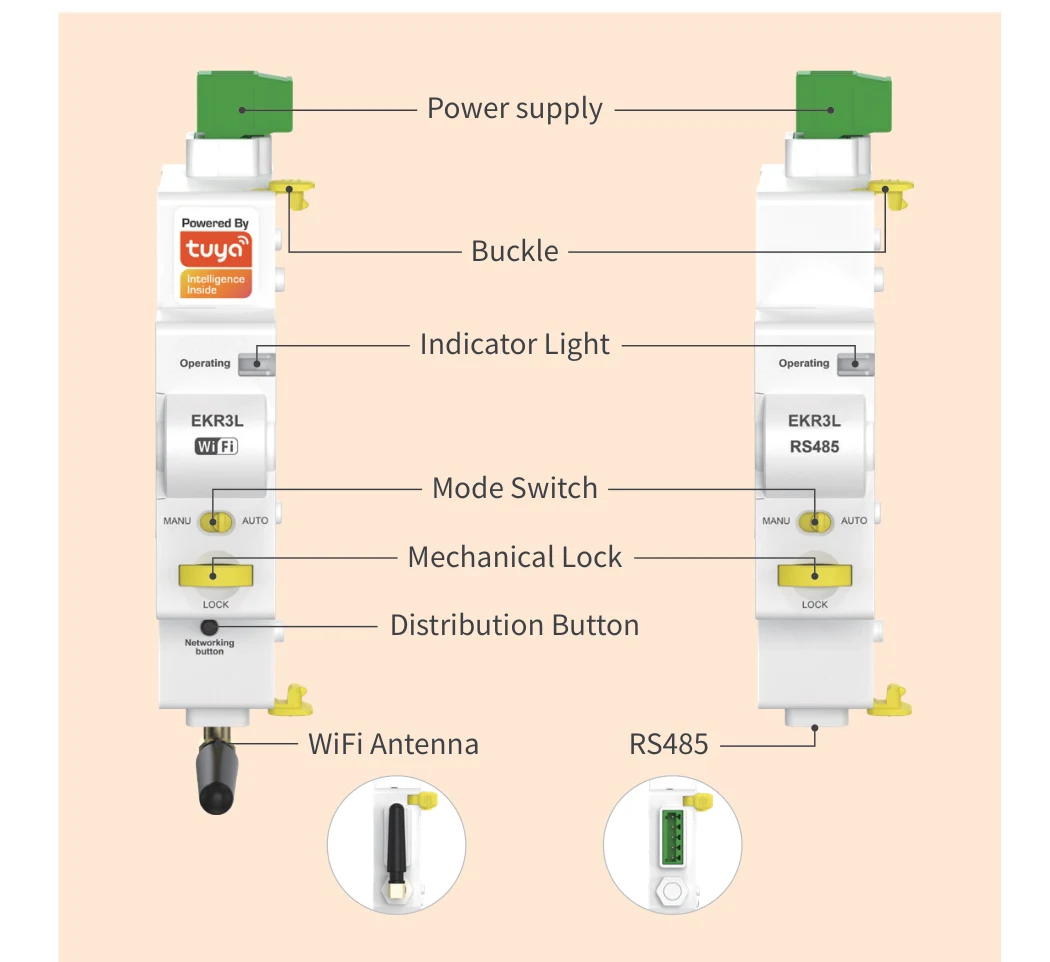

Structure labels: Power supply, Buckle, Indicator Light, Mode Switch, Mechanical Lock, Distribution Button, WiFi Antenna, RS485.
485 Dry contact terminals: 485A, 485B, Dry contact G, IN1, IN2.
Application
- Smart home systems, which can be integrated into the overall home automation solution
- Commercial buildings, which can achieve centralized energy management
- Industrial facilities, which can remotely monitor and control individual circuits
- Locations where electricity consumption requires regular control, such as billboard lighting and public area lighting
Model Preparation Meaning
Model Preparation Meaning

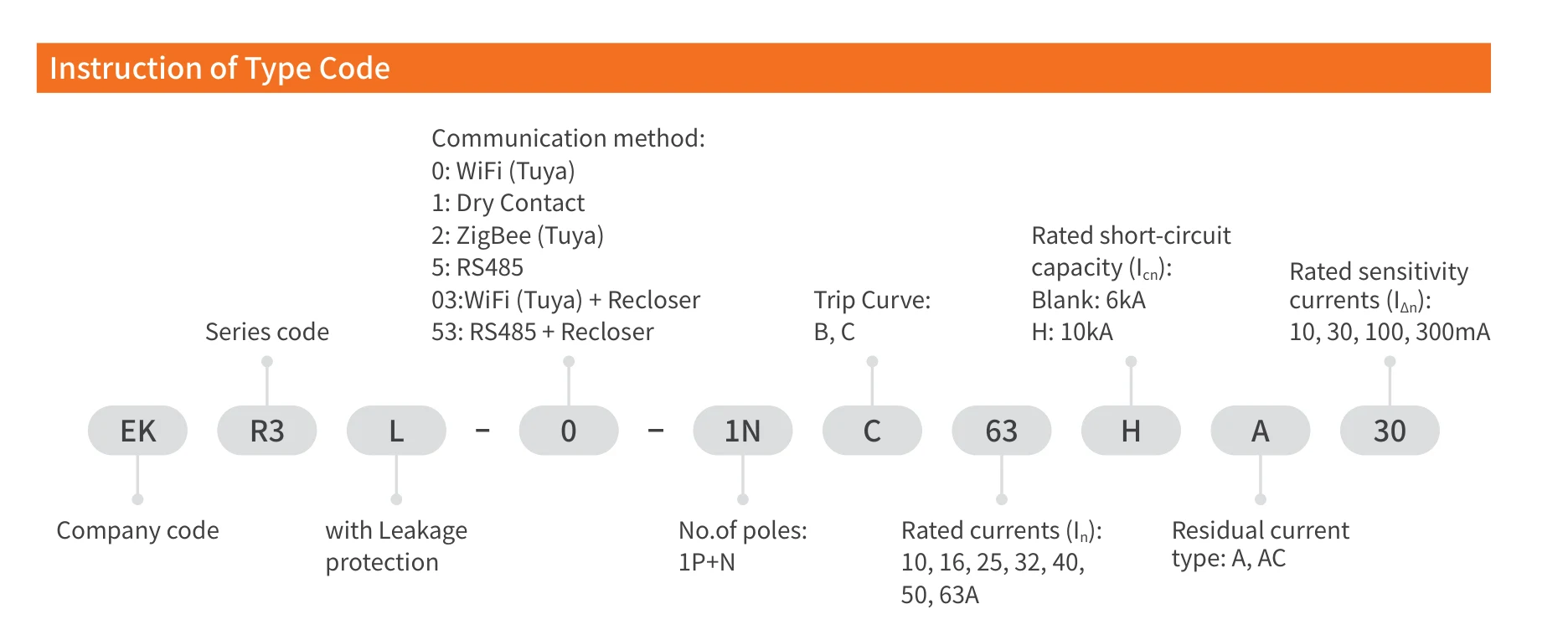

Example type code structure: EK R3 L - 0 - 1N C 63 H A 30
- EK — Company code
- R3 — Series code
- L — With leakage protection
- 0 — Communication method (this product: 0 = WiFi (Tuya))
- 0: WiFi (Tuya)
- 1: Dry Contact
- 2: ZigBee (Tuya)
- 5: RS485
- 03: WiFi (Tuya) + Recloser
- 53: RS485 + Recloser
- 1N — No. of poles: 1P+N
- C — Trip curve: B, C
- 63 — Rated currents (In): 10, 16, 25, 32, 40, 50, 63A
- H — Rated short-circuit capacity (Icn): Blank = 6kA, H = 10kA
- A — Residual current type: A, AC
- 30 — Rated sensitivity currents (IΔn): 10, 30, 100, 300mA
Technical Data
Technical Data
| Residual current type | A, AC |
|---|---|
| No. of poles | 1P+N (with switched neutral) |
| Supply terminal | L-N (It is advisable to draw power from the incoming line) |
| Power supply voltage | 220/230V |
| Standby power consumption | < 3W |
| Status indicator | LED |
| Rated voltage (Ue) | 230/240V |
| Rated frequency | 50/60Hz |
| Rated currents (In) | 10, 16, 25, 32, 40, 50, 63A |
| Rated sensitivity currents (IΔn) | 10, 30, 100, 300mA |
| Rated current off-time under (IΔn) | ≤ 0.1s |
| Rated residual making and breaking capacity (IΔm) | 500A (In ≤ 50A), 10In (In > 50A) |
| Rated short-circuit capacity (Icn) | 6kA, 10kA |
| Energy limiting class | 3 |
| Rated impulse withstand voltage (Uimp) (1.2/50μs) | 4kV |
| Dielectric test voltage | 2kV (50/60Hz, 1 min.) |
| Trip curve | B: (3-5) x In, C: (5-10) x In |
| Trip time | < 0.2s |
| Electrical life | 4000 Cycles |
| Mechanical life | 10000 Cycles |
| Communication method | WiFi (Tuya), 2.4GHz |
| Operational safety | Mechanical padlock, ensure safety during onsite maintenance |
| Monitoring physical data | Switch state, Device operating status |
| Function description | Overload protection, Short circuit protection, Leakage protection, Multiple timing, Remote control, Auto reclose |
| Auto reclose — Reclosing times | 3 times (WiFi-Tuya) |
| Auto reclose — Reclosing time | First time: 10 seconds; Second time: 60 seconds; Third time: 300 seconds |
| Auto reclose — Reset reclosing time | No more tripping or manual reset within 15 minutes after successful closing |
| Protection degree | IP20 |
| Ambient temperature | -20℃ to +55℃ (Current capacity is significantly reduced at 70℃) |
| Storage temperature | -25℃ to +70℃ |
| Max. supply terminal size for cable | 2.5mm2 |
| Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
| Max. conductor cross-sections for cable | 25mm2 |
| Altitude | ≤2000m |
| Installation | Mounting on 35mm DIN rail |
| Incoming method | From top |
Dimensions
Dimensions

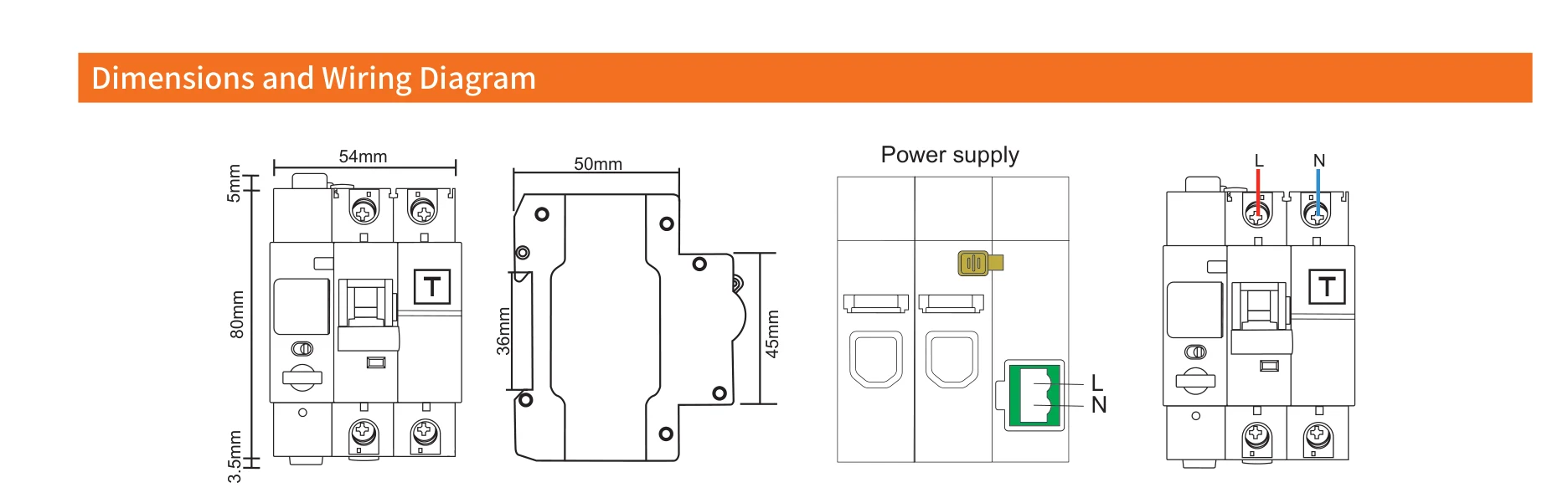

Dimension drawings cover front and side views for 1P+N, including overall width 54mm, height 80mm, depth 50mm and related installation dimensions.
Wiring diagrams show power supply terminal (L / N) and pole wiring for the 1P+N RCBO.
