EKR5 Series Recloser for RCCB | Switch / RS485 Control + Auto Reclose
EKR5 Series is a recloser for RCCB supporting switching input control or RS485 (MODBUS-RTU), with optional Type R automatic reclosing (up to 3 attempts, intervals 10s / 60s / 300s). Power supply options: AC230V (A1) or DC24V (D1). It enables remote closing and opening of compatible ETEK RCCBs, with manual/automatic mode selection, LED status indication and mechanical padlock for onsite safety. Module width only 18mm; dimensions 84×18×78mm. Matching products: EKL6-100, EKL6-100B, EKL6-63EV. Typical applications: home smart power distribution and photovoltaic equipment. Main order models with product photos: EKR5-A1CR, A1SR, D1CR, D1SR.
● Product type: Recloser for RCCB
● Series: EKR5
● Models: EKR5-A1C / A1CR / A1S / A1SR / D1C / D1CR / D1S / D1SR
● Control modes: Switching input control or RS485 (MODBUS-RTU); Type R with automatic reclosing
● Power supply voltage: AC230V±10% (A1…) or DC24V±10% (D1…); power terminals A1-A2
● Power consumption: max. 1VA (standby), max. 20VA (operation)
● Frequency range: 50Hz–60Hz
● Supply indication: Red and green LEDs
● Action time: ≤ 1s
● Automatic reclosing (Type R): 3 times; intervals 10s / 60s / 300s
● Reset of closing times: No trip or manual reset within 15 minutes after successful closing
● Electrical life: 4000 cycles; Mechanical life: 10000 cycles
● Dimensions: 84×18×78mm (operating mechanism only 18mm wide)
● Installation: Mounting on 35mm DIN rail
● Protection degree: IP20
● Matching RCCBs: EKL6-100, EKL6-100B, EKL6-63EV
Product Profile
Product Profile
EKR5 Series Recloser is a reclosing device compatible with switch control and RS485 remote control, designed for use with RCCBs. It features an automatic reclosing function that attempts to restart up to three times. If a line protection device trips due to manual opening, short circuit, leakage, or overload, the EKR5 will automatically attempt to restore power, enhancing the reliability of the power supply system. This device is extensively used in areas such as home smart power distribution and photovoltaic equipment.
|
Key Features
|
Model Matrix

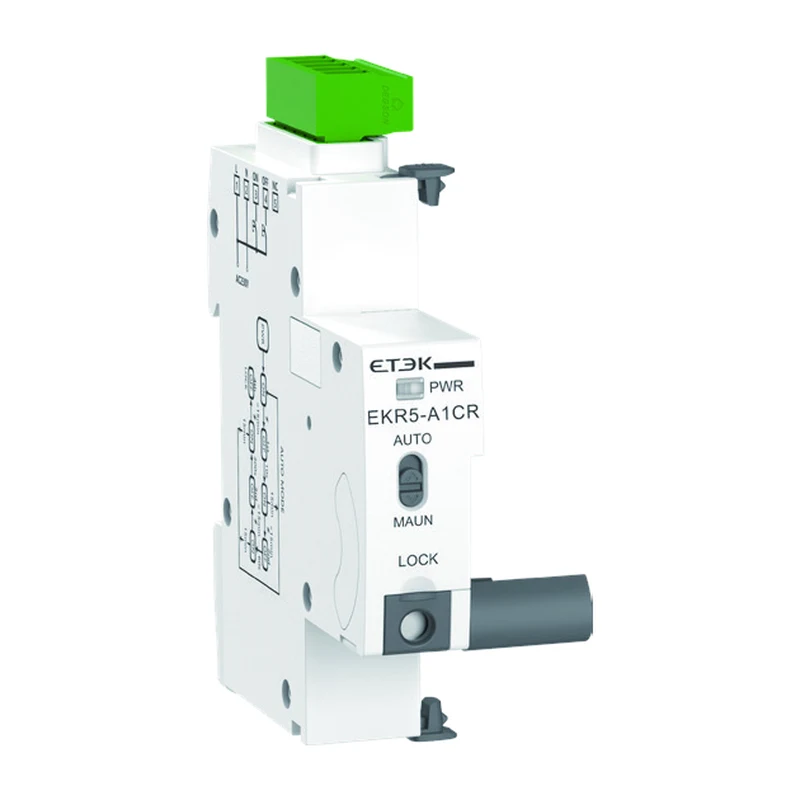

Main models with dedicated product photos
|
|
Automatic Reclosing (Type R)
|
|

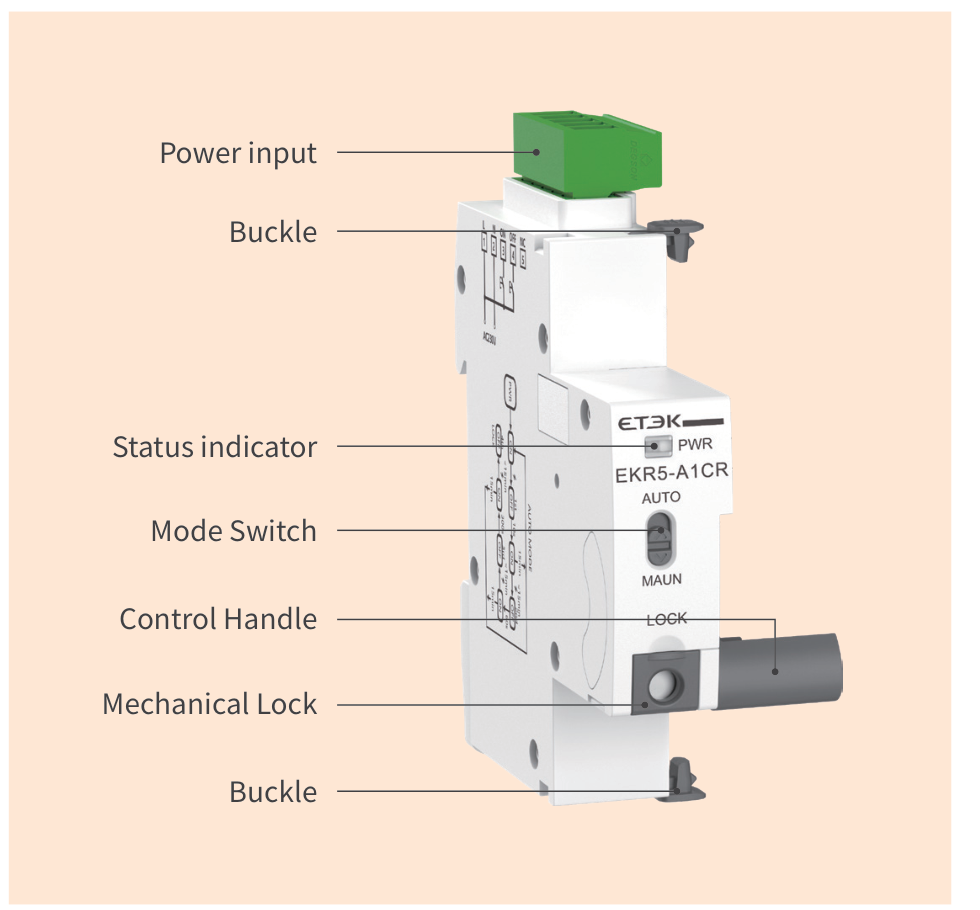

Structure labels: Power input, Buckle, Status indicator, Mode Switch, Control Handle, Mechanical Lock.
Model Preparation Meaning
Model Preparation Meaning

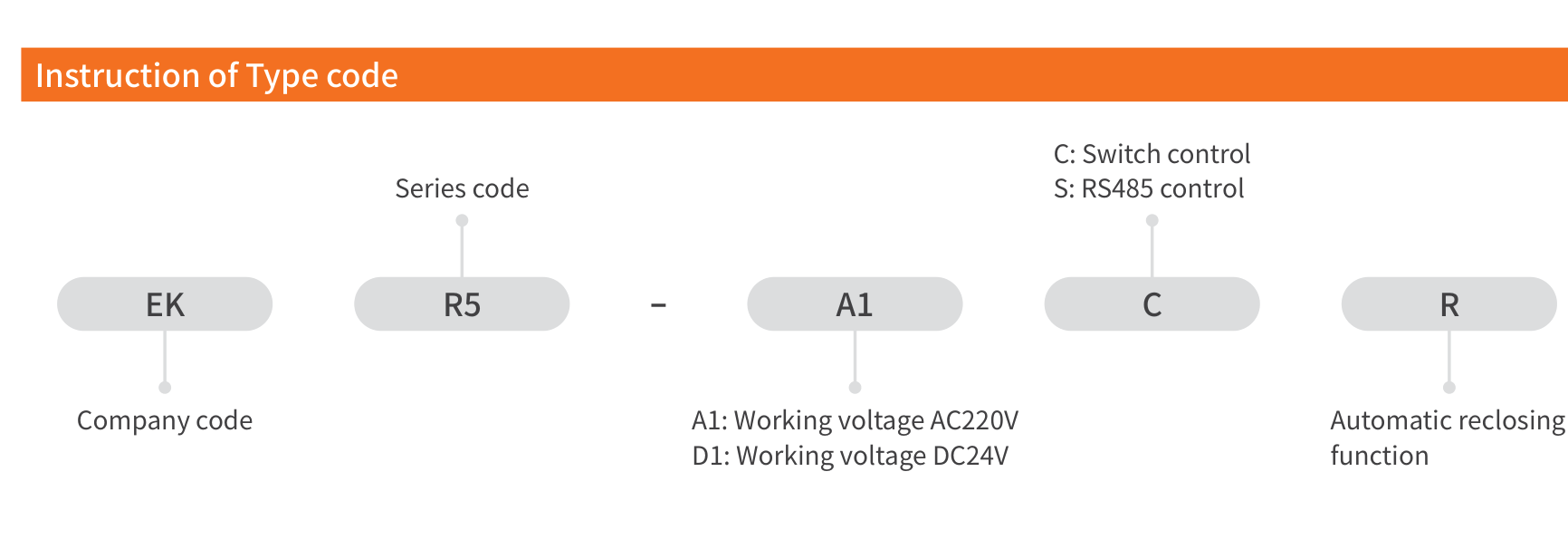

Example type code structure: EK R5 - A1 C R
- EK — Company code
- R5 — Series code
- A1 / D1 — Working voltage:
- A1: Working voltage AC220V / AC230V
- D1: Working voltage DC24V
- C / S — Control mode:
- C: Switch control
- S: RS485 control
- R — Automatic reclosing function (optional; present on A1CR / A1SR / D1CR / D1SR)
Full series matrix: EKR5-A1C / A1CR / D1C / D1CR (switch control); EKR5-A1S / A1SR / D1S / D1SR (RS485 control).
Technical Data
Technical Data
| Series | EKR5 Recloser for RCCB |
|---|---|
| Ref No. (with auto reclose) | EKR5-A1CR, EKR5-A1SR, EKR5-D1CR, EKR5-D1SR |
| Ref No. (basic, without R) | EKR5-A1C, EKR5-A1S, EKR5-D1C, EKR5-D1S |
| Control mode | Switching input control (C) or RS485 control / MODBUS-RTU (S); Type R adds automatic reclosing |
| Power terminals | A1-A2 |
| Power supply voltage | A1…: AC230V±10%; D1…: DC24V±10% |
| Power consumption | max. 1VA (standby); max. 20VA (operation) |
| Frequency range | 50Hz–60Hz |
| Supply indication | Red and green LEDs |
| Action time | ≤ 1s |
| Auto reclosing times (Type R) | 3 |
| Auto reclosing interval time (Type R) | 10s – 60s – 300s |
| Reset the closing times (Type R) | No trip or manual reset within 15 minutes after the successful closing |
| Electrical life | 4000 Cycles |
| Mechanical life | 10000 Cycles |
| Operating ambient temperature | -20℃ to +55℃ |
| Storage temperature | -35℃ to +75℃ |
| Installation | Mounting on 35mm DIN rail |
| Protection degree | IP20 |
| Overvoltage category | III |
| Pollution degree | 2 |
| Max. supply terminal size for cable | 2.5mm2 |
| Dimensions | 84×18×78mm |
| Matching products | EKL6-100, EKL6-100B, EKL6-63EV |
Model selection (power × control × reclose)
| Ref No. | Power supply | Control mode | Automatic reclosing |
|---|---|---|---|
| EKR5-A1C | AC230V±10% | Switching input | No |
| EKR5-A1CR | AC230V±10% | Switching input | Yes (3×) |
| EKR5-A1S | AC230V±10% | RS485 (MODBUS-RTU) | No |
| EKR5-A1SR | AC230V±10% | RS485 (MODBUS-RTU) | Yes (3×) |
| EKR5-D1C | DC24V±10% | Switching input | No |
| EKR5-D1CR | DC24V±10% | Switching input | Yes (3×) |
| EKR5-D1S | DC24V±10% | RS485 (MODBUS-RTU) | No |
| EKR5-D1SR | DC24V±10% | RS485 (MODBUS-RTU) | Yes (3×) |
Matching RCCB main parameters (for selection)
| RCCB Ref No. | EKL6-100 | EKL6-100B | EKL6-63EV |
|---|---|---|---|
| Standard | IEC/EN 61008-1 | IEC 61008-1, IEC 62423 | IEC 61008-1, IEC 62955 |
| Type of trip | Electro-magnetic | ||
| Residual current type | AC, A, A-G / A-SI, A-S | B | A + DC 6mA |
| No. of poles | 2P (1P+N), 4P (3P+N), N pole on left | ||
| Rated voltage (Ue) | 1P+N: 230/240V~; 3P+N: 400/415V~ | ||
| Rated currents (In) | 16, 25, 32, 40, 63, 80, 100A | 16, 25, 32, 40, 63, 80, 100A | 16, 25, 32, 40, 63A |
| Rated sensitivity currents (IΔn) | 10, 30, 100, 300mA (10mA only for In=16–25A) | 30, 100, 300mA | 30mA; DC trip threshold (IΔdc)=6mA |
| Rated conditional short-circuit current (Inc) | EKL6-100: 6kA; EKL6-100H: 10kA | 10kA | 10kA |
| Electrical / mechanical life | 2,000 / 4,000 Cycles | ||
| Ambient temperature | -25℃ to +40℃ | -25℃ to +55℃ | |
| Ground fault indicator | Yes | ||
| Protection degree | IP20 | ||
| Max. terminal size for cable | 35mm2 | ||
| Max. tightening torque | 2.5N·m | ||
| Installation / incoming | 35mm DIN rail; from top and bottom | ||
Dimensions
Dimensions

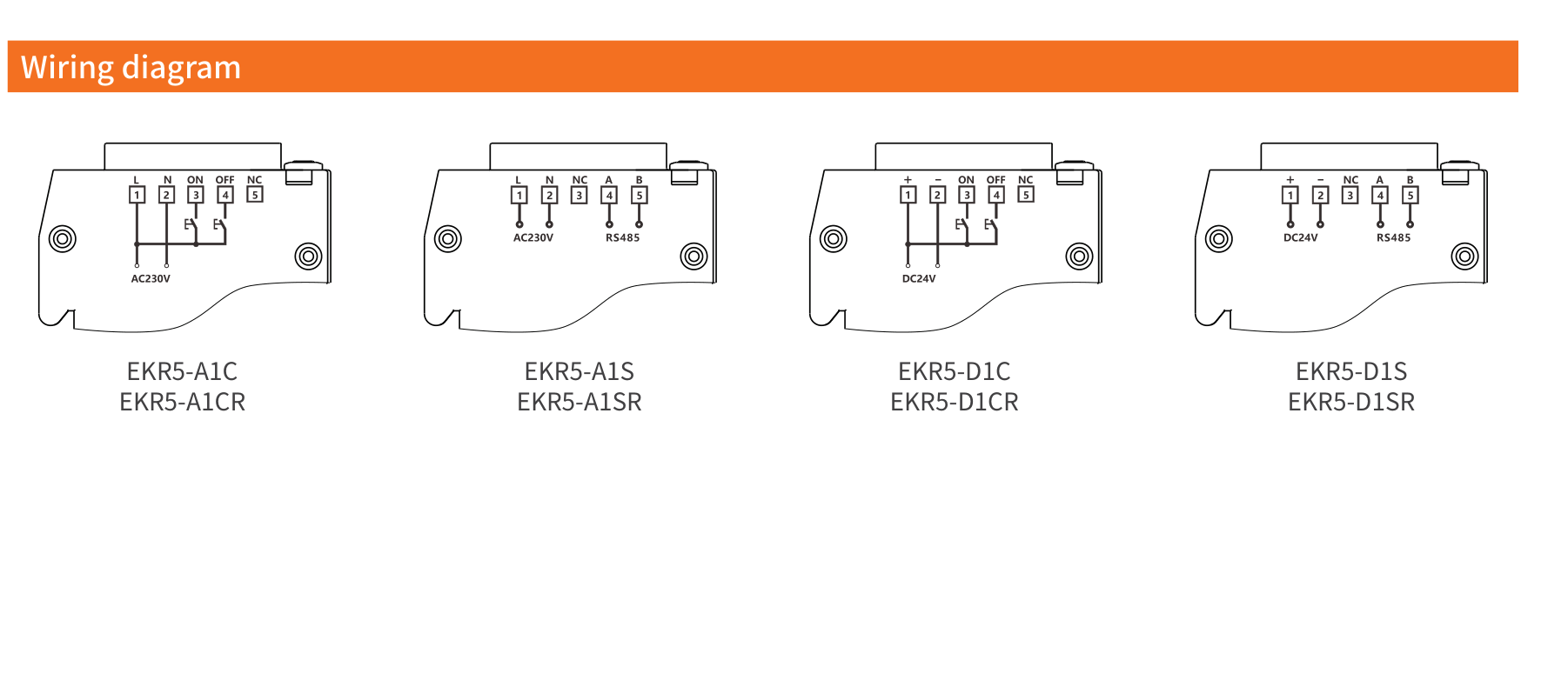

Wiring diagrams cover EKR5-A1C/A1CR, EKR5-A1S/A1SR, EKR5-D1C/D1CR and EKR5-D1S/D1SR (AC230V or DC24V; switch control or RS485).

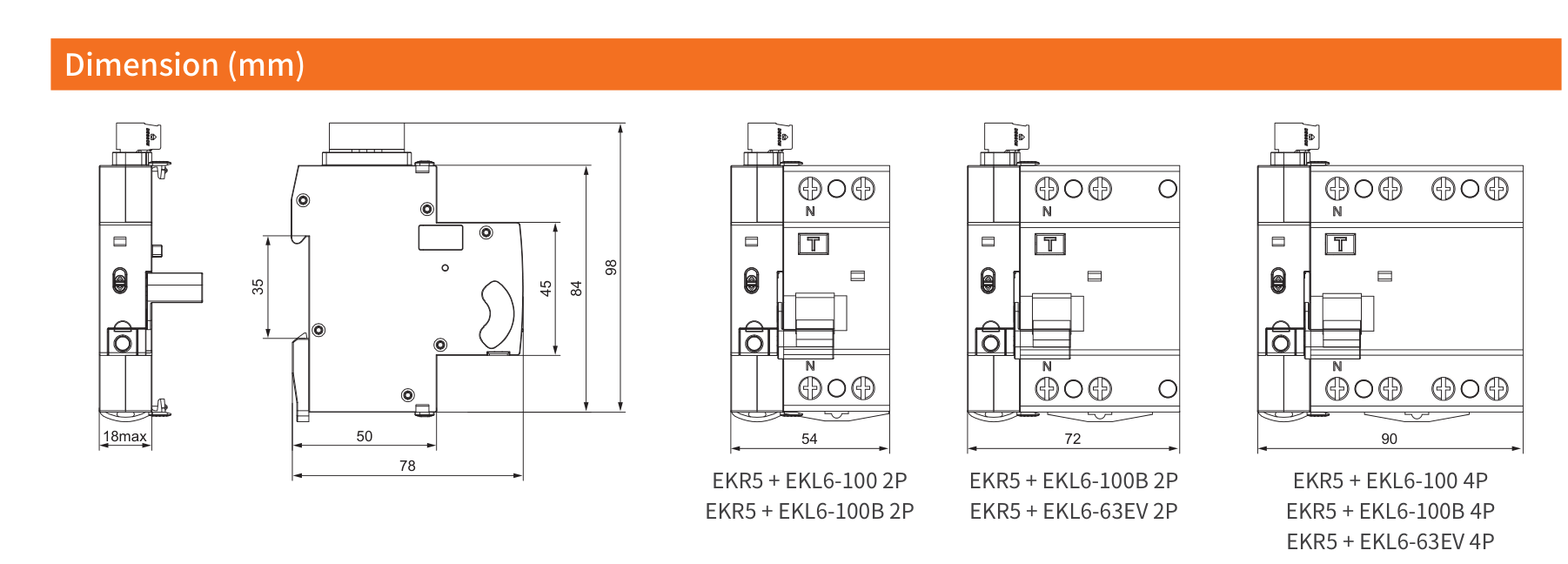

EKR5 module size: 84×18×78mm. Combination outline widths with RCCB examples: 54mm (EKR5 + EKL6 2P), 72mm (EKR5 + EKL6-100B/63EV 2P), 90mm (EKR5 + EKL6 4P).

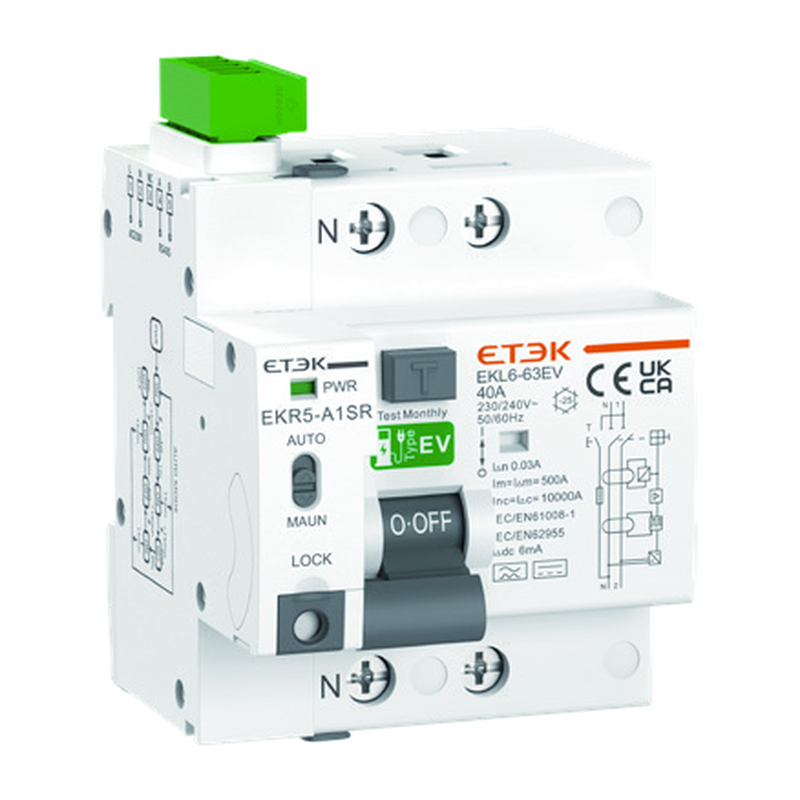

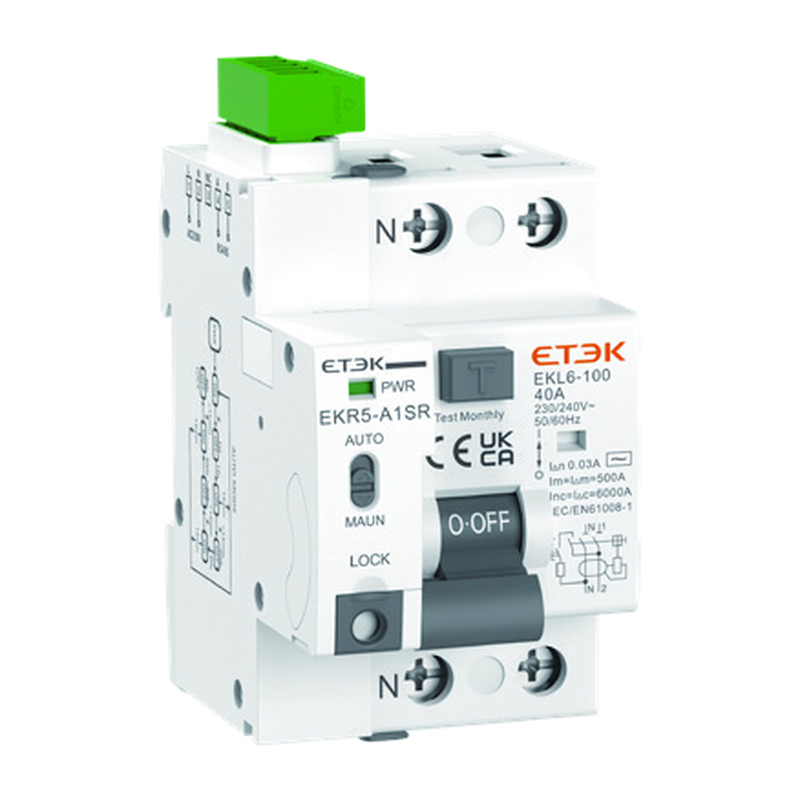

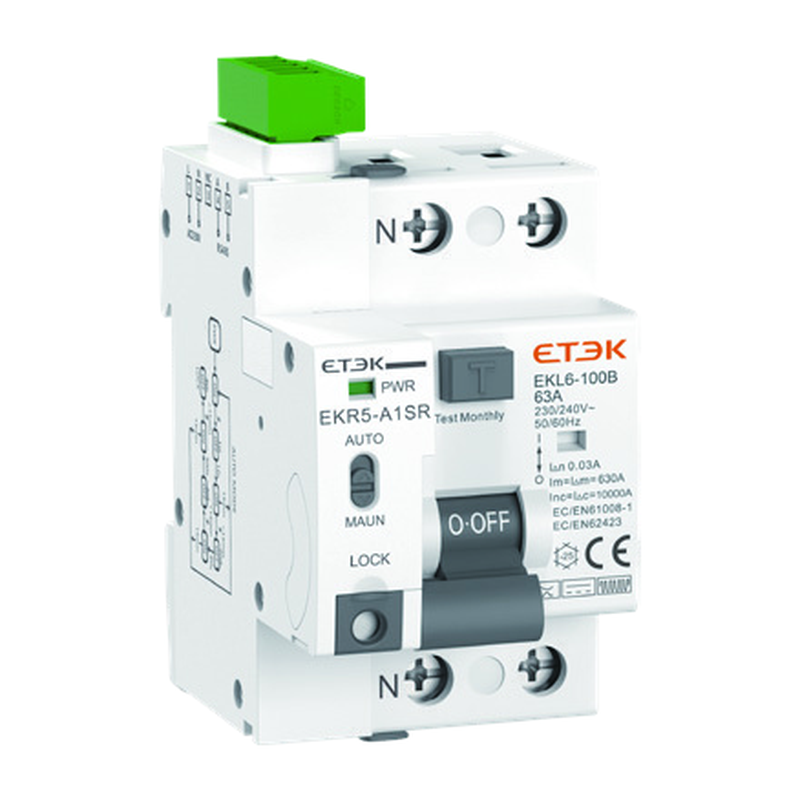

Matching RCCB appearance references (EKL6-100 / EKL6-100B / EKL6-63EV) for selection with EKR5 recloser.
