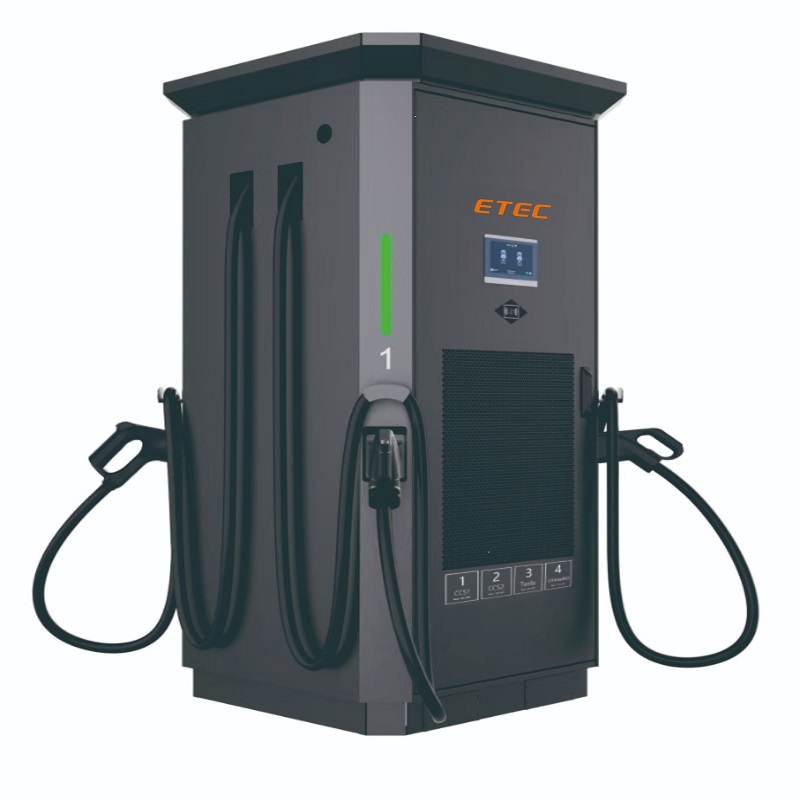

EKDC4 60-240kW Three/Four guns DC Fast Charger | High Power EV Charging Station |
The EKDC4 is a multi-gun charging station developed by us to a ccommodate different charging connector usages.This charging station has a maximum power of 240kW, supports 3 to 4 guns operating simultaneously,and is compatible with CCS2,CCS1, GBT, CHAdeMO and NACS connectors.
Product Profile
Product Profile
The EKDC4 is a multi-gun charging station developed by us to accommodate different charging connector usages.This charging station has a maximum power of 240 kW, supports 3 to 4 guns operating simultaneously,and is compatible with CCS2,CCS1, GBT, CHAdeMO and NACS connectors.
The product inside using our own SECC and DC EV charge controller and supports the OCPP 1.6J communication protocol, with connectivity options including Wi-Fi, 4G, and Ethernet. It features overload protection,lightning protection,short circuit protection,leakage protection,and an emergency stop function.
The product supports remote upgrades, remote diagnostics,and real-time monitoring of charging status via a mobile app, as well as remote control, facilitating operation and maintenance while ensuring the safety of the charging process. it is suitable for charging locations such as parking lots or public charging stations and supports charging for 99% of vehicle models on the market.
Model Preparation Meaning
Model Preparation Meaning
|
Model Preparation Meaning |
||||
|
EK |
DC4 |
CCCC |
240 |
B |
|
① |
② |
③ |
④ |
⑤ |
|
Code |
Meaning |
|||
|
① |
ETEK |
|||
|
② |
DC EV charging station design number |
|||
|
③ |
C:CCS2 gun A:CCS1 gun G:GB/T gun J:CHAdeMO gun N:NACS gun |
eg. CCCC:4×CCS2 guns CAGJ:1xCCS2+1xCCS1+1xGBT+1xCHAdeMO gun |
||
|
④ |
60:60 kW 80:80 kW 120:120 kW |
|||
|
⑤ |
Power module: A, B,C |
|||
Technical Data
Technical Data
|
EKDC4 60-240 kW Fast DC EV charging station |
|
|
Technical Data |
|
|
Power |
60 kW/80 kW/120 kW/160 kW/180 kW/240 kW |
|
Connector |
GB/T/CCS1/CHAdeMO/CCS2/NACS optional |
|
Connector number |
3 or 4 guns |
|
Input voltage |
AC380V-415V,3P+N+PE |
|
Frequency |
50/60Hz |
|
Output voltage |
50V~1000VDC |
|
Led indicator |
Green/Yellow/Red |
|
User Interface |
7.0 Inch LcD Display |
|
RFID |
Mifare ISO/IEC14443 A |
|
Emergency stop button |
Yes |
|
Charge mode |
Plug&charge,RFID,APP,POS machine (Optional) |
|
Communication protocol |
OCPP 1.6J or other |
|
Communication |
Ethernet/4G/Wi-Fi (4G and Wi-Fi optional) |
|
Electrical protection |
Over current protection, Short circuit protection, Ground protection, Surge protection,Over/Undervoltage protection, Over/Under frequency protection, |
|
Energy meter |
Yes |
|
Charging standards |
EN/IEC 61851-1:2019,IEC 61851-1:2017,EN 61851-23:2014,IEC 61851-23:2014 |
|
Ingress protection |
IP54 |
|
Impact protection |
IK10 (Screen lK08) |
|
Work temperature |
-30°C~+50℃C |
|
Work humidity |
5%~95% |
|
Work altitude |
<2000m |
|
Product dimension |
H:1975mmxL:900mmxW:900mm |
|
Installation mode |
Floor mounting |
|
Certificate |
EC Declaration |
